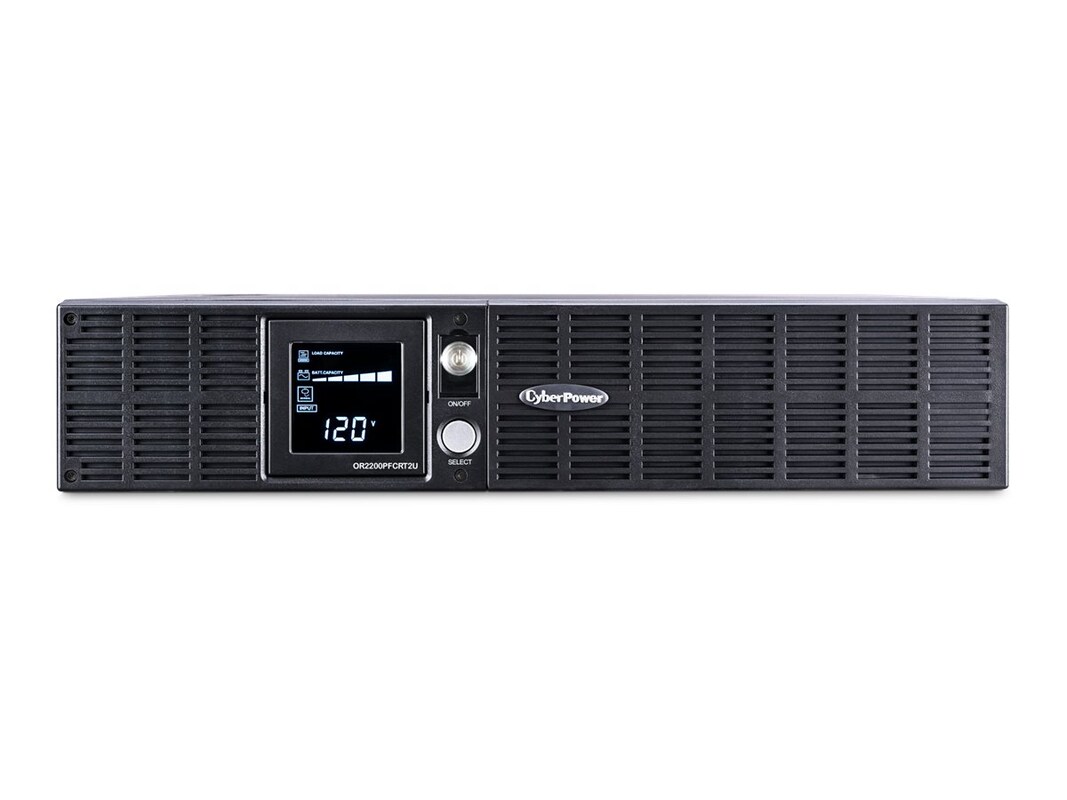

A rack/tower UPS with line interactive topology, the CyberPower PFC Sinewave OR2200PFCRT2U provides power protection (using sine wave output) and surge protection for department servers, workgroup servers, network devices, telecom appliances, and high-end audio/video equipment requiring active PFC power source compatibility. The OR2200PFCRT2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.
-
59.50 lbs
-
Surge Protection and Filtering
Surge Suppression: 2,060 Joules
Phone/Ethernet/Coax Protection: RJ-11/RJ-45 1-In, 1-Out (Combo); RG-6 1-In, 1-Out
Management, Communications, Compliance
Multifunction LCD Diagnostic Display: Toggle Status Display includes Current/Load Level, Runtime, Battery Level, AVR In Use, Battery In Use, Input Voltage, Output Voltage, Output Frequency, Overload, Wiring Fault, Silent Mode
HID Compliant
Management Cables: USB cable, Serial cable (2)
LED Indicators: Power on, wiring fault
Audible Alarms: On battery, low battery, overload
Software: PowerPanel Business Edition
SNMP/HTTP Remote Monitoring: Yes, with optional RMCARD201
Emergency Power Off (EPO) Port: Yes
Certifications: UL1778, cUL 107.3, FCC DOC Class B
RoHS Compliant -
# Ports: 8Communication Interface: Serial (RS-232)Communication Interface: USBConnector: Power NEMA 5-20
-
UPS, software, USB cable, (2) serial cables, documentation
-
Attributes: Automatic voltage regulation (AVR)Attributes: Coaxial line protectionAttributes: Line interactiveAttributes: RJ-11 line protectionAttributes: RJ-45 line protectionColor: BlackForm Factor: ExternalWarranty Period: 3-year warrantyWeight Taxonomy: 59.52lbs
-
3.5"h x 17"w x 15.3"d
-
(8) NEMA 5-20R outlets (battery/surge protected)
(1) NEMA 5-20P input cord, 10ft, right-angle plug
(1) USB communications port
(2) DB-9 RS-232 serial communications ports
(2) Coax protection ports (1 in, 1 out)
(2) RJ-11/RJ-45 protection ports (1 in, 1 out)
(1) EPO port -
Battery Run Time (max): 4.5minPower Capacity (VA): 2000.0VAPower Provided: 1540Surge Suppression: YesVoltage Provided: 12V
-
General
UPS Topology: Line-Interactive (AVR)
Energy Saving: GreenPower UPS Bypass Technology
Input
Voltage: 90VAC - 140VAC
Frequency: 47-63Hz
Output
Capacity: 2000VA/1320W
Automatic Voltage Regulation: Yes
On Battery Voltage: 120VAC +/- 5%
On Battery Frequency: 50/60Hz +/- 1%
On Battery Waveform: Adaptive sine wave
Overload Protection: Internal circuitry limiting / circuit breaker
Transfer Time: 4ms
Battery
Runtime at Half Load: 20 minutes (660W)
Runtime at Full Load: 8 minutes (1320W)
Battery Type: Sealed lead acid
Battery Size: 12V/9AH
User Replaceable: Yes
Hot Swappable: Yes
Typical Recharge Time: 8 Hours
Replacement Battery: BB Battery - HR9-12 or Yuasa Battery NPW45-12FR
Battery Quantity: (4) -
This product is subject to our return policy. Please see our complete return policy for details.
-
68 lbs
-
Compliant Standards: CULCompliant Standards: FCC Class B certifiedCompliant Standards: ISO 9001Compliant Standards: RoHSCompliant Standards: ULCompliant Standards: UL 1778
-
OS Required: Microsoft Windows 2000OS Required: Microsoft Windows 2003OS Required: Microsoft Windows 7OS Required: Microsoft Windows Server 2008OS Required: Microsoft Windows Vista (32/64 bits)OS Required: Microsoft Windows XP (32/64 bits) SP2
-
39121011
-
3 Years
-
3 Years
-
Lifetime $250,000 Connected Equipment Guarantee
