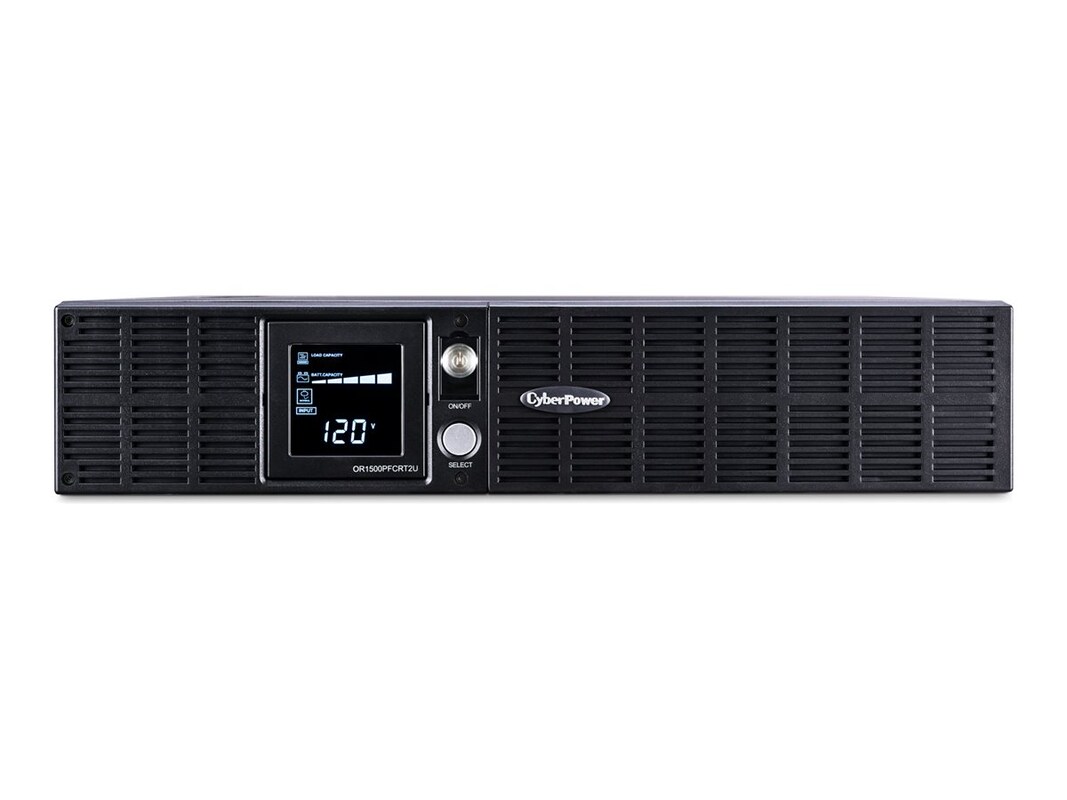

The CyberPower Smart App Intelligent LCD OR1500PFCRT2U uninterruptible power supply (UPS) with Adaptive Sinewave technology safeguards networking hardware, networked-based devices, small office servers, workstations and telecom equipment that use conventional and Active Power Factor Correction (PFC) power supplies. Its automatic voltage regulation (AVR) topology delivers clean and consistent AC power, protecting connected equipment and preventing costly business interruptions.
CyberPower's Adaptive Sinewave technology solves the critical compatibility issues of non-Sinewave UPS products working with computing systems using Active PFC power supplies (ENERGY STAR 5.0). With PC manufacturers adopting high-efficiency Active PFC power supplies, your equipment may be at risk. CyberPower's innovative Adaptive Sinewave UPS technology is an affordable solution that ensures equipment using Active PFC power supplies do not unexpectedly shutdown when switching from AC power to UPS battery power.
This UPS has a capacity of 1500VA/900Watts, eight (8) NEMA 5-15R receptacles and four (4) maintenance-free, user-replaceable 12V/7Ah batteries. The rotatable front LCD panel displays all major UPS vitals for ease of use. This unit offers connectivity via one (1) HID USB and two (2) DB9 serial ports. Protection for phone/network (RJ-11/RJ-45) and cable/coax (RG-6) is included. EMI/RFI filters increase the immunity of the load to noise disturbances.
The UPS incorporates microprocessor-based digital control and includes PowerPanel Business Edition providing the user unsurpassed flexibility and agent/client control of up to (25) clients. The addition of an optional SNMP/Network card allows for remote management via web browser or network management system (NMS).
CyberPower's Adaptive Sinewave technology solves the critical compatibility issues of non-Sinewave UPS products working with computing systems using Active PFC power supplies (ENERGY STAR 5.0). With PC manufacturers adopting high-efficiency Active PFC power supplies, your equipment may be at risk. CyberPower's innovative Adaptive Sinewave UPS technology is an affordable solution that ensures equipment using Active PFC power supplies do not unexpectedly shutdown when switching from AC power to UPS battery power.
This UPS has a capacity of 1500VA/900Watts, eight (8) NEMA 5-15R receptacles and four (4) maintenance-free, user-replaceable 12V/7Ah batteries. The rotatable front LCD panel displays all major UPS vitals for ease of use. This unit offers connectivity via one (1) HID USB and two (2) DB9 serial ports. Protection for phone/network (RJ-11/RJ-45) and cable/coax (RG-6) is included. EMI/RFI filters increase the immunity of the load to noise disturbances.
The UPS incorporates microprocessor-based digital control and includes PowerPanel Business Edition providing the user unsurpassed flexibility and agent/client control of up to (25) clients. The addition of an optional SNMP/Network card allows for remote management via web browser or network management system (NMS).
-
55.50 lbs
-
Surge Protection and Filtering
Surge Suppression: 1,840 Joules
Phone/Ethernet/Coax Protection: RJ-11/RJ-45 1-In, 1-Out (Combo); RG-6 1-In, 1-Out
Management, Communications, Compliance
Multifunction LCD Diagnostic Display: Toggle Status Display includes Current/Load Level, Runtime, Battery Level, AVR In Use, Battery In Use, Input Voltage, Output Voltage, Output Frequency, Overload, Wiring Fault, Silent Mode
HID Compliant
Management Cables: USB cable, Serial cable (2)
LED Indicators: Power on, wiring fault
Audible Alarms: On battery, low battery, overload
Software: PowerPanel Business Edition
SNMP/HTTP Remote Monitoring: Yes, with optional RMCARD201
Emergency Power Off (EPO) Port: Yes
Certifications: UL1778, cUL 107.3, FCC DOC Class B
RoHS Compliant -
# Ports: 8Communication Interface: Serial (RS-232)Communication Interface: USBConnector: Power NEMA 5-15Connector: Power NEMA 5-15 (F)Connector: Power NEMA 5-15 (M)
-
UPS, software, USB cable, (2) serial cables, documentation
-
Attributes: Automatic voltage regulation (AVR)Attributes: Coaxial line protectionAttributes: Line interactiveAttributes: RJ-11 line protectionAttributes: RJ-45 line protectionColor: BlackForm Factor: 2U RackmountForm Factor: ExternalForm Factor: TowerWarranty Period: 3 yearsWeight Taxonomy: 50.6lbs
-
3.5"h x 17"w x 15.3"d
-
(8) NEMA 5-15R outlets (battery/surge protected)
(1) NEMA 5-15P input cord, 10ft, right-angle plug
(1) USB communications port
(2) DB-9 RS-232 serial communications ports
(2) Coax protection ports (1 in, 1 out)
(2) RJ-11/RJ-45 protection ports (1 in, 1 out)
(1) EPO port -
Battery Run Time (max): 7minBattery Run Time (max): 7.7minPower Capacity (VA): 1500VAPower Provided: 1050Power Provided: 900WSurge Suppression: StandardSurge Suppression: YesVoltage Provided: 12VVoltage Provided: 120V
-
General
UPS Topology: Line-Interactive (AVR)
Energy Saving: GreenPower UPS Bypass Technology
Input
Voltage: 90VAC - 140VAC
Frequency: 47-63Hz
Output
Capacity: 1500VA/900W
Automatic Voltage Regulation: Yes
On Battery Voltage: 120VAC +/- 5%
On Battery Frequency: 50/60Hz +/- 1%
On Battery Waveform: Adaptive sine wave
Overload Protection: Internal circuitry limiting / circuit breaker
Transfer Time: 4ms
Battery
Runtime at Half Load: 21 minutes (450W)
Runtime at Full Load: 7 minutes (900W)
Battery Type: Sealed lead acid
Battery Size: 12V/7AH
User Replaceable: Yes
Hot Swappable: Yes
Typical Recharge Time: 8 Hours
Replacement Battery: BB Battery - BP7-12 or SH1228WFR
Battery Quantity: (4) -
This product is subject to our return policy. Please see our complete return policy for details.
-
59.4 lbs
-
Compliant Standards: CULCompliant Standards: FCC Class B certifiedCompliant Standards: ISO 9001Compliant Standards: RoHSCompliant Standards: ULCompliant Standards: UL 1778
-
OS Required: Microsoft Windows 2000OS Required: Microsoft Windows 2003OS Required: Microsoft Windows 7OS Required: Microsoft Windows Server 2008OS Required: Microsoft Windows Vista (32/64 bits)OS Required: Microsoft Windows XP (32/64 bits) SP2
-
39121011
-
3 Years
-
3 Years
-
Lifetime $200,000 Connected Equipment Guarantee
