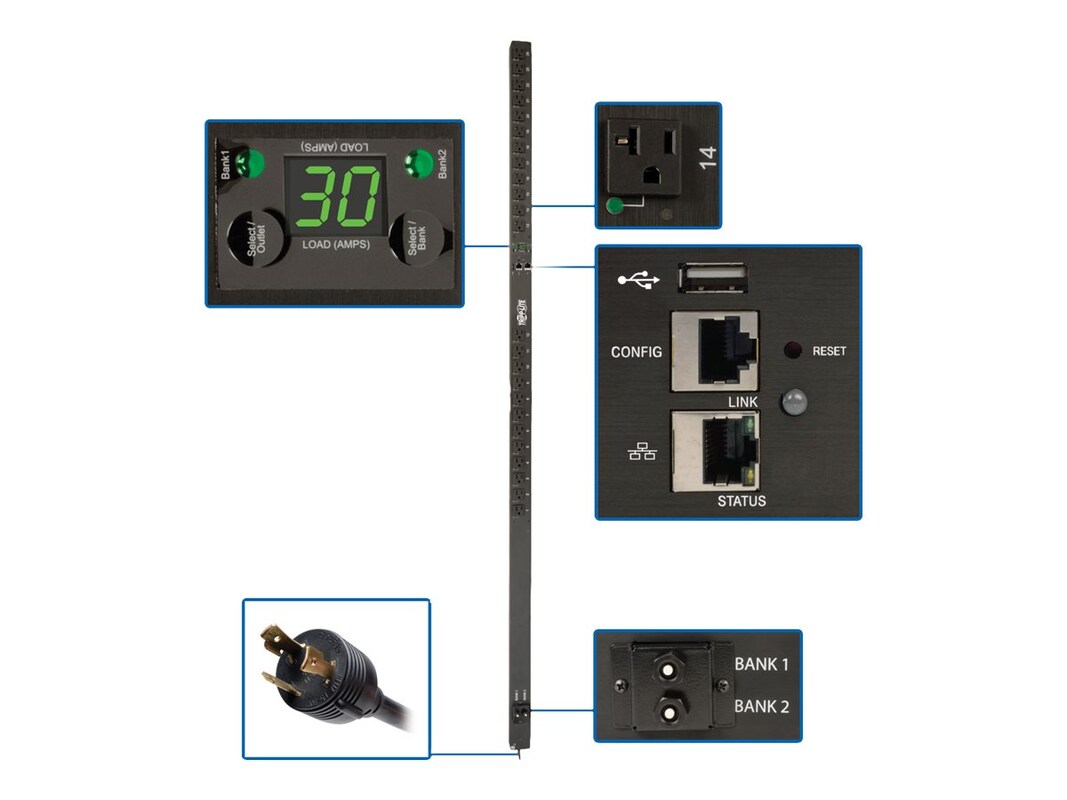

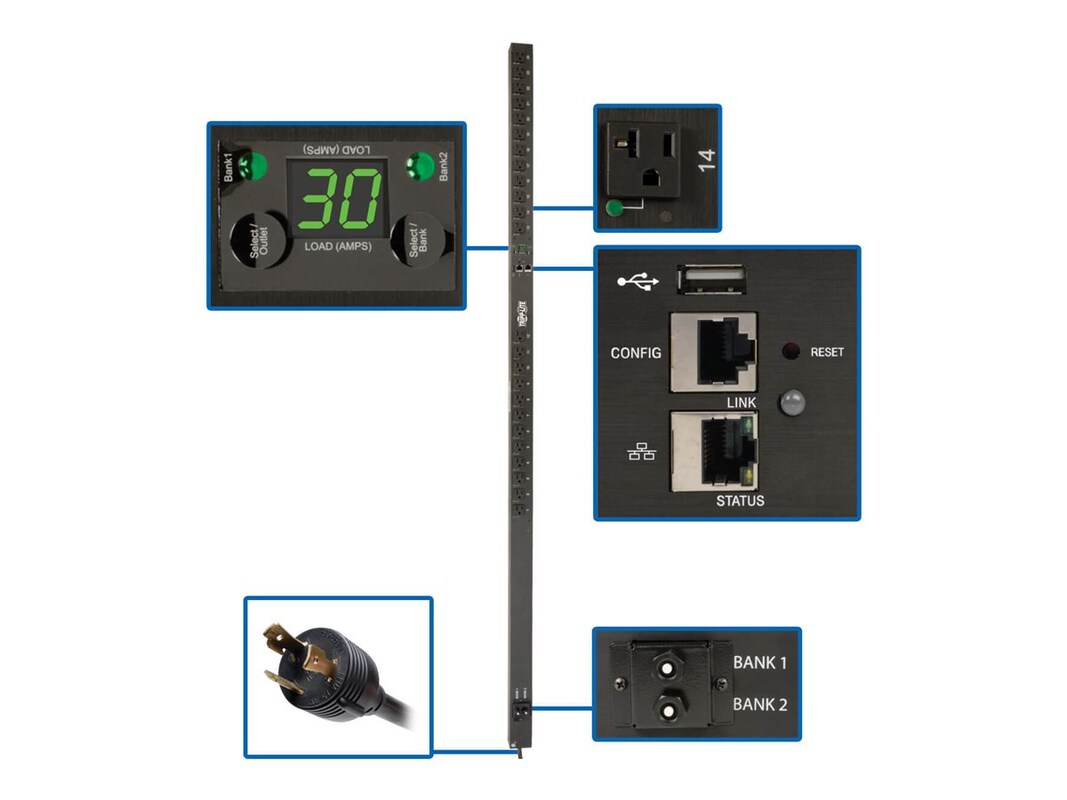

Tripp Lite Switched Vertical PDU 2.9kW 120V 30A, L5-30P Input, (24) 5-15 20R Outlets, LX Platform Interface

9.94 lbs

Distributes, Monitors and Manages Network-Grade AC Power:
2.9kW 120V switched PDU with single-phase input
NEMA L5-30P plug with 10 ft. cord connects to compatible AC power source
Firmware upgrades support future product enhancements

24 Switched NEMA 5-15/20R Outlets Distribute AC Power:
Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices
Included cord retention brackets prevent cables from becoming accidentally disconnected

Digital Ammeter:
Reports current for each load bank, each individual outlet, and total PDU load
Supports IP-address self-ID
Digits flip 180° for easy reading at either angle

Built-In LX Platform Interface:
Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
No Java required

Broad Communications Compatibility:
Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
Supports automatic and manual assignment of IP address

Essential Safety Features:
Tiered access allows administrator and guest to log in via web browser
Immediate alert notifications via email or SNMP traps
Supports user-specified alarm notification thresholds
Real-time clock backup maintains day/date even if PDU is unpowered

Easy 0U Installation in EIA-Standard 19 in. Racks:
70 in. PDU mounts vertically using included toolless buttons or rack-mounting brackets
Included PDUMVROTATEBRKT allows mounting with rear-facing outlets

TAA-Compliant:
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

PDU with built-in LX platform interface, configuration cable, cord retention brackets, (24) cable ties, rack-mounting hardware, PDUMVROTATEBRKT mounting bracket accessory, documentation

70"H x 2.2"W x 2.04"D

SNMP Compatibility: Built-in LX Platform network interface
Front Panel LCD Display: Digital display reports load level in amps for LOAD BANK 1 (Outlets 1-12), LOAD BANK 2 (Outlets 13-24), LOAD BANKS 1&2 COMBINED (Outlets 1-24) and each individual output receptacle; Digital display can also be used to scroll the configured IP address
Front Panel LEDs: BANK 1 and BANK 2 LEDs verify which load bank the digital current display is reporting (Bank 1, Bank 2 or Banks 1&2 Combined); BANK 1 or BANK 2 LED will flash when the digital display is reporting output current for one of the outlets in that load bank; 24 additional LEDs, one near each output receptacle, will light continuously to verify power on/off status and flash to indicate that the digital display is reporting output current for just that individual receptacle
Switches: SELECT OUTLET and SELECT BANK switches advance the LCD screen and associated LED to display power consumption for individual output receptacles and output load banks; Press and hold the SELECT BANK button for 4 seconds to rotate the digital display 90 degrees for overhead power input; Press and hold the SELECT OUTLET button for 4 seconds to scroll the configured IP address

Output Capacity Details: 3.05kW (127V), 2.88kW (120V), 2.4kW (100V) / 30A total capacity (Agency de-rated 24A); 20A max per breakered load bank; 16A max per outlet
Frequency Compatibility: 50 / 60 Hz
Output Receptacles: (24) 5-15/20R
Output Nominal Voltage: 100-127V nominal, single phase
Overload Protection: Two 20A breakers protect 12 outlets each
Customized Load Management Receptacles: Each outlet is individually controllable via remote interface

PDU Input Voltage: 100; 120; 127
Recommended Electrical Service: 30A 120V
Maximum Input Amps: 30
Maximum Input Amps Details: Agency de-rated to 24A continuous
PDU Plug Type: NEMA L5-30P
Input Cord Length (ft.): 10
Input Phase: Single-Phase

Form Factors Supported: 0U vertical rackmount; includes rackmount brackets. Supports toolless mounting in button-mount compatible racks
PDU Form Factor: 0U; Vertical

Storage Temperature Range: 5 to 122F (-15 to 50C)
Relative Humidity: 5 to 95% non-condensing
Operating Elevation (ft.): 0-10,000
Operating Elevation (m): 0-3000

This product is subject to our return policy. Please see our complete return policy for details.

16.1 lbs

39121017

2 Years

2 Years

2-year limited warranty
