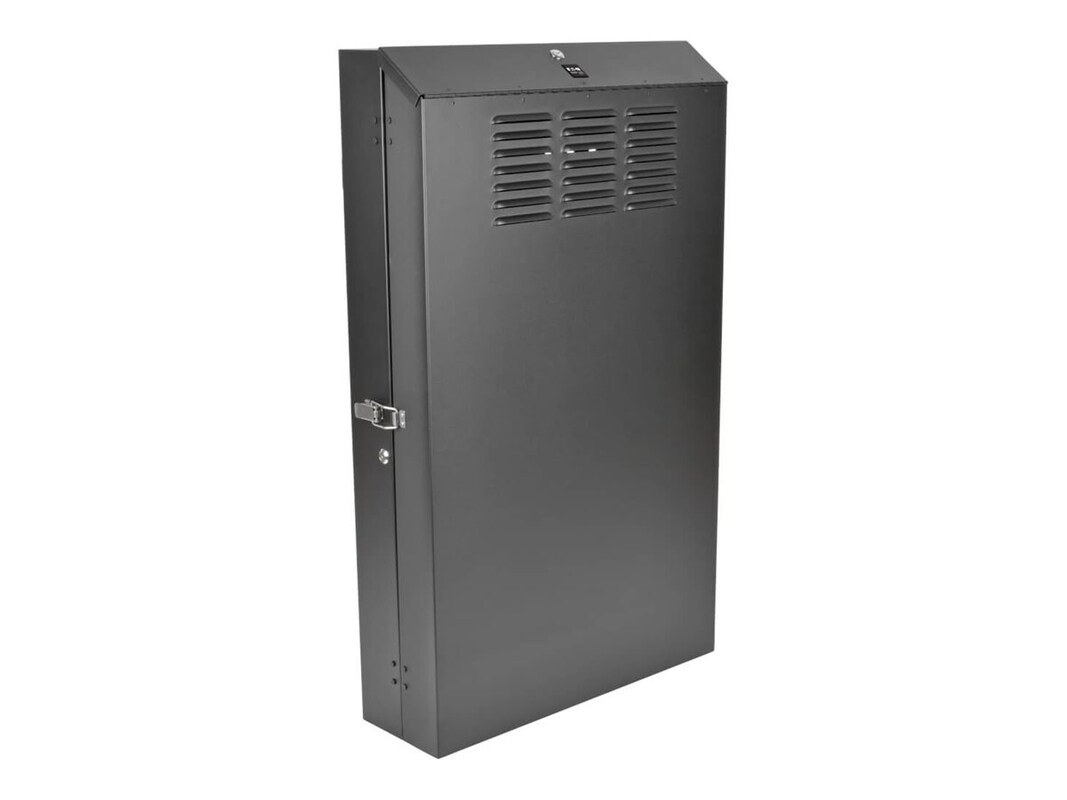

The SRWF4U36 SmartRack 4U Low-Profile Vertical-Mount Server-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 150 pounds.
Because the low-profile cabinet mounts vertically, it extends only eight inches from the wall while housing equipment up to 36 inches deep, including 1U servers, UPS systems, battery packs and switches. In addition to 4U of rack space in the primary mounting area, it also includes a slide-out 2U mounting bracket at the top of the enclosure for patch panels up to 2.5 inches deep.
The top panel and front door lock securely to help prevent damage, tampering or theft. The cabinet is vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right. Convenient top and bottom ports allow easy cable routing.
The SRWF4U36 comes fully assembled and ready to mount to the wall. Equipment installation is easy with threaded mounting holes and hardware that support M6 or 12-24 mounting.
Because the low-profile cabinet mounts vertically, it extends only eight inches from the wall while housing equipment up to 36 inches deep, including 1U servers, UPS systems, battery packs and switches. In addition to 4U of rack space in the primary mounting area, it also includes a slide-out 2U mounting bracket at the top of the enclosure for patch panels up to 2.5 inches deep.
The top panel and front door lock securely to help prevent damage, tampering or theft. The cabinet is vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right. Convenient top and bottom ports allow easy cable routing.
The SRWF4U36 comes fully assembled and ready to mount to the wall. Equipment installation is easy with threaded mounting holes and hardware that support M6 or 12-24 mounting.
-
55.00 lbs
-
Features
Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way
Houses EIA-standard 19" rack equipment in 4U of space
Low-profile vertical-mount cabinet extends only 8" from the wall while housing equipment up to 36" deep, including 1U servers, UPS systems, battery packs and switches
Also includes a slide-out 2U mounting bracket at the top of the enclosure for patch panels up to 2.5" deep
Maximum load capacity of 150lb.
Top panel and reversible front door lock securely to help prevent damage, tampering or theft
Front door latch also accommodates a user-supplied padlock for added security
Vented cabinet keeps equipment cool
Convenient ports with removable covers allow cable routing through top and bottom
Ships fully assembled for quick installation
Wall-mounting holes spaced 16" apart for standard wall stud placement
Rails adjust easily -- unscrew them, slide them to desired depth and screw them back in
Threaded mounting holes support M6 or 12-24 mounting
Rack spaces marked for easy reference
Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance
Specifications
Rack Height (U Spaces): 5U
Maximum Device Depth: 36"
Minimum Device Depth: 33"
Color: Black Powder Coat
Weight Capacity - Stationary: 150lb
Certifications
EIA-310-E
NOM (Mexico)
RoHS
PCI DSS (Payment Card Industry Data Security Standard) -
Color: BlackProduct Type: EnclosureWarranty Period: 5 yearsWeight Taxonomy: 66.14lbs
-
43.2"h x 25.6"w x 9.7"d
-
This product is subject to our return policy. Please see our complete return policy for details.
-
70 lbs
-
Compliant Standards: EIA-310-ECompliant Standards: NOMCompliant Standards: PCI DSSCompliant Standards: RoHS
-
