In Stock
- Ships in 24-48 Hours
Ordering Information
$828.86
Quick View
Getting Details

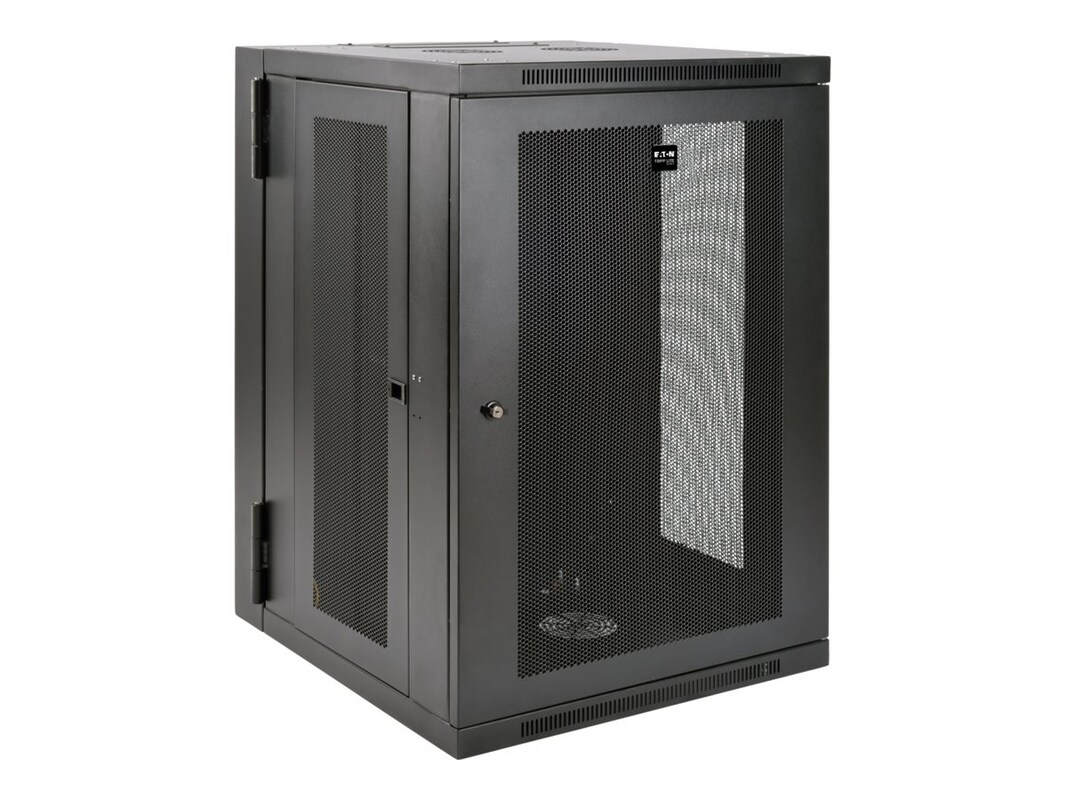

The SRW18USDP SmartRack 18U UPS-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds.
The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180-degrees before mounting. Convenient top and bottom ports allow easy cable routing.
The SRW18USDP comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 24.5 inches deep, such as network switches, UPS systems and related battery packs and cabling.
The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180-degrees before mounting. Convenient top and bottom ports allow easy cable routing.
The SRW18USDP comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 24.5 inches deep, such as network switches, UPS systems and related battery packs and cabling.
-
100.90 lbs
-
Features
Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way
Houses EIA-standard 19 in. rack equipment in 18U of space
Maximum load capacity of 250 lb.
Side panels and front door lock securely to help prevent damage, tampering or theft
Vented panels allow generous airflow that keeps equipment cool
Rotate cabinet 180-degrees before mounting to open reversible front door left or right
Convenient ports with removable covers allow cable routing through top and bottom
Ships fully assembled for quick installation
Mounts to wall or rolls on floor with Tripp Lite’s optional SRCASTER caster kit
Wall-mounting holes spaced 16 in. apart for standard wall stud placement
Vertical mounting rails adjust in 7/8 in. increments to accommodate equipment up to 24.5 in. deep, such as network switches and patch panels
Rails adjust easily -- unscrew them, slide them to desired depth and screw them back in
Rails support square-hole or threaded-hole mounting
Rack spaces numbered for easy reference
Provides physical equipment and media security required for PCI DSS(Payment Card Industry Data Security Standard) compliance
Specifications
Rack Height: 18U
Maximum Device Depth: 24.5"
Minimum Device Depth: 3"
Weight Capacity - Stationary: 250lb
Factory Preset Rack Depth: 9.84"
Cable Access Hole Measurement: 9.812" x 2.35" (l x w) -
Cabinet, hardware, documentation
-
Color: BlackProduct Type: CabinetWarranty Period: 5 yearsWeight Taxonomy: 100.9lbs
-
35.6"h x 23.5"w x 26"d
-
This product is subject to our return policy. Please see our complete return policy for details.
-
125 lbs
-
Compliant Standards: EIA-310-ECompliant Standards: NOMCompliant Standards: RoHS
-
24102001
-
5 Years
-
5 Years
