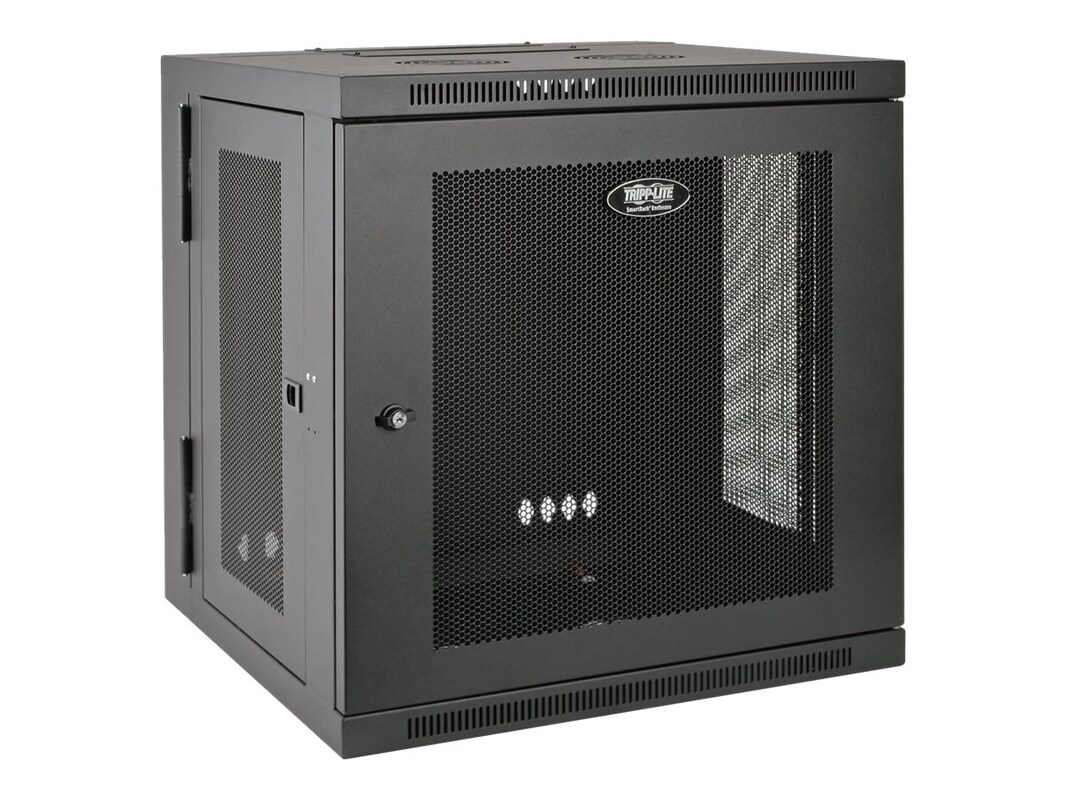

The SRW12USDP SmartRack 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.
The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180-degrees before mounting. Convenient top and bottom ports allow easy cable routing.
The SRW12USDP comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 24.5 inches deep, such as network switches, UPS systems and related battery packs and cabling.
The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180-degrees before mounting. Convenient top and bottom ports allow easy cable routing.
The SRW12USDP comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 24.5 inches deep, such as network switches, UPS systems and related battery packs and cabling.
-
63.50 lbs
-
Features
Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way
Houses EIA-standard 19 in. rack equipment in 12U of space
Maximum load capacity of 200 lb.
Swings away from the wall to allow easy back-door access to equipment and cabling during installation and maintenance
Rotate cabinet 180-degrees before mounting to open reversible doors left or right
Side panels and doors lock securely to help prevent damage, tampering or theft
Vented panels allow generous airflow that keeps equipment cool
Convenient ports with removable covers allow cable routing through top and bottom
Ships fully assembled for quick installation
ounts to wall or rolls on floor with Tripp Lite's optional SRCASTER caster kit
Wall-mounting holes spaced 16 in. apart for standard wall stud placement
Vertical mounting rails adjust in 7/8 in. increments to accommodate equipment up to 24.5 in. deep, such as network switches, UPS systems, battery packs and cabling
Rails adjust easily -- unscrew them, slide them to desired depth, and screw them back in
Rails support square-hole or threaded-hole mounting
Rack spaces numbered for easy reference
Provides physical equipment and media security required for PCI DSS(Payment Card Industry Data Security Standard) compliance
Specifications
Rack Height: 12U
Maximum Device Depth: 24.5"
Minimum Device Depth: 3"
Color: Black
Weight Capacity - Stationary: 200lb
Factory Preset Rack Depth: 10.42"
Cable Access Hole Measurement: 9.812" x 2.35" (l x w)
Grounding Lug: Front and Back door frames -
Color: BlackProduct Type: CabinetWarranty Period: 5 yearsWeight Taxonomy: 63.49lbs
-
25.1"h x 23.6"w x 25.5"d
-
This product is subject to our return policy. Please see our complete return policy for details.
-
93 lbs
-
Compliant Standards: IP20Compliant Standards: NOMCompliant Standards: RoHSCompliant Standards: EIA-310-ECompliant Standards: IEC 60297-3-100
-
24102001
-
5 Years
-
5 Years
