The SmartPro Tower UPS is an intelligent, line-interactive network power management system.
Ordering Information
Was
$820.80
$164.01 (19%)
Now
$656.79
Quick View
Getting Details
Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply(UPS) with built-in Auto-Voltage Regulation(AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 95% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and optional SNMPWEBCARD network interface. HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off(EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.
-
35.40 lbs
-
Features

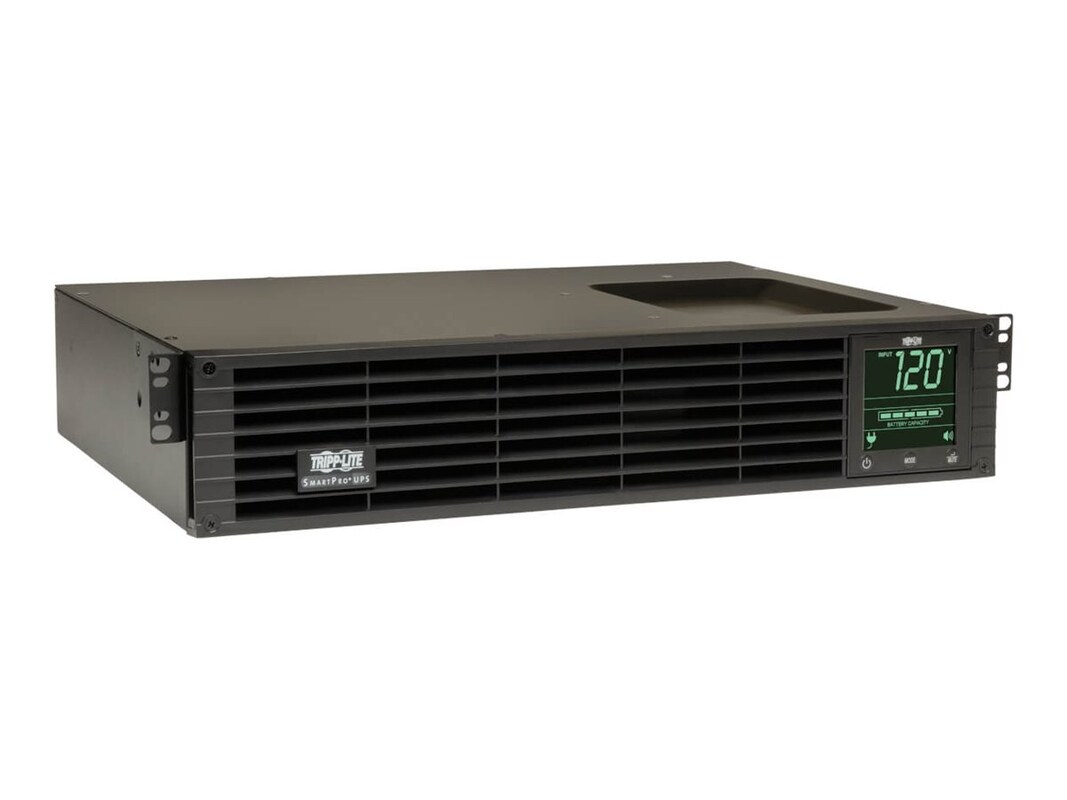

Tripp Lite SMART1000RM2U line interactive 2U rack/tower UPS with 1000VA/1kVA/800W capacity
Line interactive UPS with Automatic Voltage Regulation(AVR) corrects brownouts and overvoltages from 83 to 145V
NEMA 5-15P input plug; (6) NEMA 5-15R output receptacles, Two independently switchable output load banks
Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages
High 95% efficiency rating in line-power mode offers reduced power consumption and BTU emissions
Internal batteries offer 15 minutes at 50% load(400W) and 5.3 minutes at 100% load(800W)
Hot-swappable, user-replaceable internal batteries can be replaced with no disruption to connected equipment
Intelligent battery management system extends battery life
Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic, plus 7 selectable screens of detailed UPS and site power information
LCD interface also supports a number of advanced user setup and operating preferences
Ships with 4-post rackmount installation hardware; Optional 2POSTRMKITWM enables 2-post rackmount/wallmount installation; Optional 2-9USTAND enables tower placement
Built-in USB, RS-232 and optional SNMPWEBCARD accessory monitoring options
HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
Included PowerAlert UPS monitoring software; Built-in Emergency Power Off(EPO) interface with cable -
# Ports: 6Communication Interface: Serial (RS-232)Communication Interface: USBConnector: Power NEMA 5-15Connector: Power NEMA 5-15 (F)Connector: Power NEMA 5-15 (M)
-
UPS, USB/serial/EPO cabling, software, 4-post rackmount installation kit, documentation
-
Attributes: Line interactiveColor: BlackEnclosure Type: Plug-in moduleForm Factor: 2U RackmountForm Factor: ExternalWarranty Information: Requires product registrationWarranty Period: 3 yearsWeight Taxonomy: 35.05lbs
-
3.5"h x 17.5"w x 12.5"d
-
Outlet quantity / type: (6) NEMA 5-15R
Input connection type: NEMA 5-15P
Input cord length: 10 ft., 14 gauge Overload protection: USB monitoring port
DB-9 monitoring port -
Battery Run Time (max): 5.3minPower Capacity (VA): 1000VAPower Provided: 800Power Provided: 800WSurge Suppression: StandardSurge Suppression: YesVoltage Provided: 120VVoltage Provided: 24V
-
Output
Output volt amp capacity: 1000V
Output watt capacity: 800W
Output nominal voltage: 120V
Output voltage regulation: 120V
Output frequency regulation: 60Hz
Input
Maximum input: 6.8A
Recommended electrical service: 15A, 120V
15A input breaker
Battery
Full load runtime: 5.3 minutes (800W)
Half load runtime: 15 minutes (400W)
DC system voltage: 24 VDC
Replacement battery cartridge (internal UPS battery replacement): RBC92-2U
Typical battery lifespan: 3-6 years, depending on usage
Battery recharge rate: Less than 4 hours from 10% to 90%
SURGE / NOISE SUPPRESSION
UPS AC Suppression Rating: 570 Joules
UPS AC Suppression Response Time: Instantaneous
EMI / RFI AC Noise Suppression: Yes -
This product is subject to our return policy. Please see our complete return policy for details.
-
45.7 lbs
-
Compliant Standards: CULCompliant Standards: FCC Class B certifiedCompliant Standards: NOMCompliant Standards: UL 1778
-
39121011
-
2 Years
-
2 Years
-
2-year warranty, 3 year with registration. Note: registration is required for 3-year warranty. Connected Equipment Insurance (U.S., Canada & Puerto Rico) $250,000 Ultimate Lifetime Insurance
