Tripp Lite Uninterruptible Power Supply (UPS) Finder
Add to Cart
Messages
Loading
-
:
Quick View
Getting Details

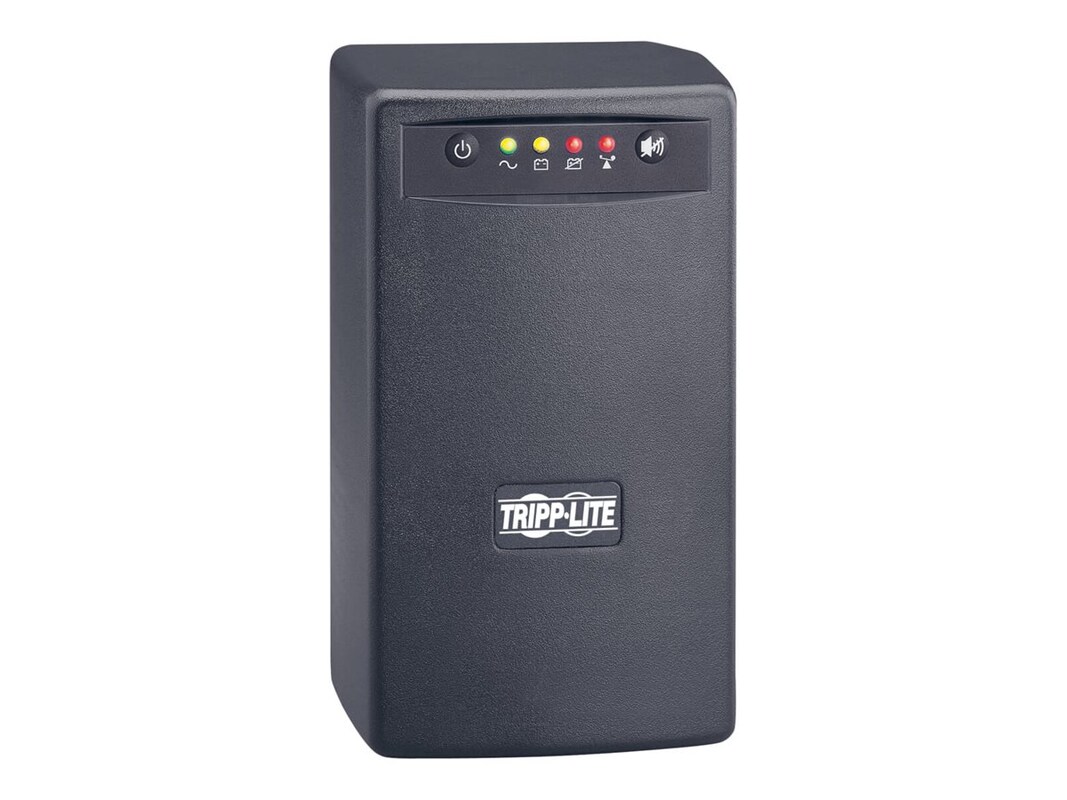

The Tripp Lite Smart 550USB line interactive UPS system offers voltage regulation, surge suppression and long lasting battery support for personal computers, internetworking equipment and other sensitive electronics. Internal UPS circuits support entry-level PC systems for up to 30 minutes during power failures so that connected equipment can be shutdown without data loss. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 83 volts back to normal 120V levels without using battery power. It offers complete desktop power protection in an attractive stealth black tower configuration.
It includes (3) battery supported outlets for computer, monitor and one vital system peripheral, plus (3) additional surge suppression-only outlets for printers and other system accessories not requiring battery support. USB port enables optional unattended system shutdown without data loss in the case of extended power failure, USB cable included. Built-in single line RJ11 phone suppression jacks protect modem, fax machine, cordless phone or other peripheral with a standard dialup/DSL phone connection.
Built-in audible alarm and (4) front panel LEDs indicate line power status, battery power status, battery low/replace status and voltage boost operation. 550VA / 300 watt power handling ability supports entry-level PCs, network workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems. Tripp Lite's Smart 550USB line interactive UPS system offers 5 minutes battery runtime with a full load of 550VA/300 watts and 17 minutes with a half load of 275VA/150 watts.
It includes (3) battery supported outlets for computer, monitor and one vital system peripheral, plus (3) additional surge suppression-only outlets for printers and other system accessories not requiring battery support. USB port enables optional unattended system shutdown without data loss in the case of extended power failure, USB cable included. Built-in single line RJ11 phone suppression jacks protect modem, fax machine, cordless phone or other peripheral with a standard dialup/DSL phone connection.
Built-in audible alarm and (4) front panel LEDs indicate line power status, battery power status, battery low/replace status and voltage boost operation. 550VA / 300 watt power handling ability supports entry-level PCs, network workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems. Tripp Lite's Smart 550USB line interactive UPS system offers 5 minutes battery runtime with a full load of 550VA/300 watts and 17 minutes with a half load of 275VA/150 watts.
-
14.40 lbs
-
LEDS ALARMS & SWITCHES
LED Indicators: (4) LEDs indicate line power, battery power, overload and battery low/replace status
Alarms Audible: alarm indicates power-failure and low-battery conditions
Alarm cancel operation: Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
Switches: (2) Switches control off/on power status and alarm-cancel/self-test operation
SURGE / NOISE SUPPRESSION
UPS AC suppression rating: 480 joules
UPS AC suppression response time: Instantaneous
UPS Dataline suppression: (1) line TEL / DSL protection (1 in / 1 out)
EMI / RFI AC noise suppression: Yes
PHYSICAL
Installation form factors supported with included accessories: Tower
Installation form factors supported with optional accessories: Wallmount (use UPSWM - tower mounting kit, available separately)
Primary form factor: Tower
COMMUNICATIONS
Communications interface: USB (HID enabled)
PowerAlert software: Free download from www.tripplite.com
Communications cable: USB interface cable included
WatchDog compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications
LINE / BATTERY TRANSFER
Transfer time: 2-4 milliseconds
Low voltage transfer to battery power (setpoint): 89
High voltage transfer to battery power (setpoint): 139
SPECIAL FEATURES
Cold Start (startup in battery mode during a power failure): Cold-start operation supported
High availability UPS features: Hot swappable batteries
CERTIFICATIONS
UPS Certifications: Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI); Meets FCC Part 68 / Industrie Canada (telecommunications); ROHS (Reduction of Hazardous Substances) -
# Ports: 6Communication Interface: USBConnector: Power NEMA 5-15Connector: Power NEMA 5-15 (F)Connector: Power NEMA 5-15 (M)
-
UPS, USB and telephone interconnection cables, documentation
-
Attributes: Automatic voltage regulation (AVR)Attributes: Line interactiveColor: BlackEnclosure Type: InternalForm Factor: ExternalForm Factor: TowerWarranty Period: 3 yearsWeight Taxonomy: 14.33lbs
-
8.5"h x 5"w x 6.5"d
-
(6) NEMA 5-15 female outlets (3 UPS, 3 surge)
(1) NEMA 5-15 male plug, 6ft, right-angled
(1) USB management port
(2) RJ-11 female ports (1 in, 1 out) -
Battery Run Time (max): 5minPower Capacity (VA): 550VAPower Provided: 300Power Provided: 300WSurge Suppression: StandardSurge Suppression: YesVoltage Provided: 12V
-
OUTPUT
Output Capacity: 550VA/300W
Nominal Output Voltages Supported: 115v; 120v
Frequency compatibility: 60Hz
Output voltage regulation (Battery mode): 115V (+/- 5%)
Output AC waveform (AC mode): Sine wave
Output AC waveform (battery mode): PWM sine wave
INPUT
Rated input current (at maximum load): 10A
Nominal Input Voltages Supported: 120VAC
Recommended Electrical Service: 15A, 120V
BATTERY
Full load runtime: 4 min. (300W)
Half load runtime: 15 min. (150W)
DC system voltage: 12VDC
Battery recharge rate (included batteries): Less than 3.6 hours from 10% to 90%
Replacement battery cartridge (internal UPS battery replacement): RBC51
Battery Access: Battery access door
Battery replacement description: Hot-swappable, user replaceable batteries
VOLTAGE REGULATION
Voltage regulation description: Automatic voltage regulation (AVR) maintains line power operation with input voltage as low as 89
Undervoltage correction: Input voltages between 89 and 104 are boosted by 14% -
This product is subject to our return policy. Please see our complete return policy for details.
-
13.5 lbs
-
Compliant Standards: CULCompliant Standards: FCC Class B certifiedCompliant Standards: NOMCompliant Standards: UL
-
39121011
-
2 Years
-
2 Years
-
2-year warranty, 3 year with registration. Note: registration is required for 3-year warranty. Connected Equipment Insurance (U.S., Canada & Puerto Rico) $250,000 Ultimate Lifetime Insurance
