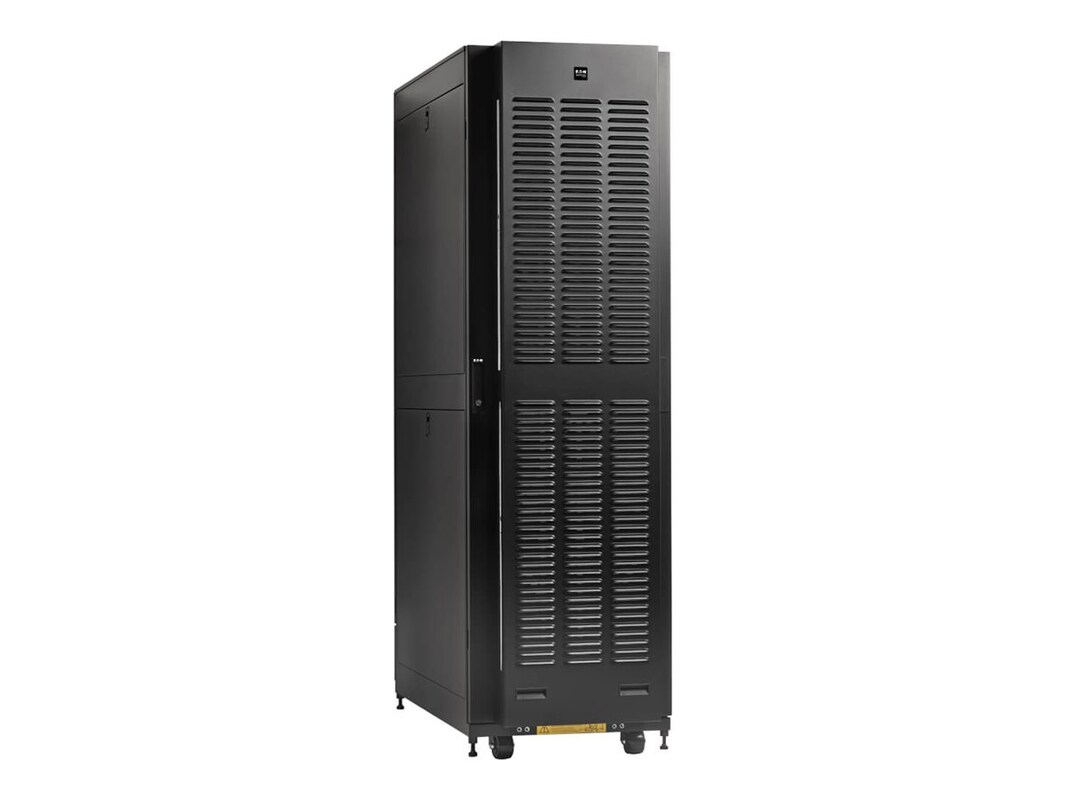

Tripp Lite 42U SmartRack NEMA 12-Rated Industrial Premium Enclosure

The SR42UBEIS Industrial SmartRack Enclosure is ideal for customers who need to protect valuable equipment in harsh working environments that would overwhelm a typical rack. The enclosure has a NEMA 12 protection rating, which is equivalent to IP-54. That means it can protect your equipment from falling dirt, dust, drips, splashes and accidental contact with personnel. The front and rear doors have ventilating louvers instead of open mesh. They also have a sealing gasket around the door frames. On the front door there are built-in dust filters. The filters are removable and they can be replaced with standard furnace filters -- simple, inexpensive and effective.

To compensate for the added air resistance of the filters, there are (12) large, high performance fans in the rear door. The fans pull air through the enclosure from front to rear. The roof of the enclosure is sealed with a cap that prevents drips and falling dirt from getting inside the enclosure. Since the doors and top are sealed, cable access is provided through 6 self-sealing cable ports -- 4 in the roof and 2 below the rear door. They allow cables to pass through, but they block the area around the cables maintaining the NEMA 12 protection. The cabinet has a Zone 4 seismic rating. That means the SR42UBEIS can withstand extreme movement and vibration, equivalent to the stress of a major earthquake. Even if it is used in an area where earthquakes are rare, the Zone 4 seismic rating is useful in any industrial setting. The enclosure may be subjected to extreme vibrations and movements produced by vehicles and machinery.

The heavy-duty steel frame supports up to 3000 pounds. The large-diameter industrial casters also support up to 3000 pounds, which means you can move the enclosure fully loaded. This is useful where you can install all your equipment in a clean environment, close the enclosure and wheel it to the dirty environment with all your equipment already protected. After the enclosure is in place, the levelers allow you to compensate for minor floor variations and make sure everything is stable. If you need to build a data center in the middle of your factory floor, you can do it with this enclosure. It is perfect for locations like factories, power stations, construction areas, shipping facilities, warehouses, processing plants, transport hubs and anywhere you need to protect equipment in a harsh working environment.

Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) compliance.
