Tripp Lite 40Gb QSFP+ to QSFP+ M M Active Optical Cable, Aqua, 10m

Print page
Item#: 36466291 // MFG Part#: N28F-10M-AQ // By: Tripp Lite

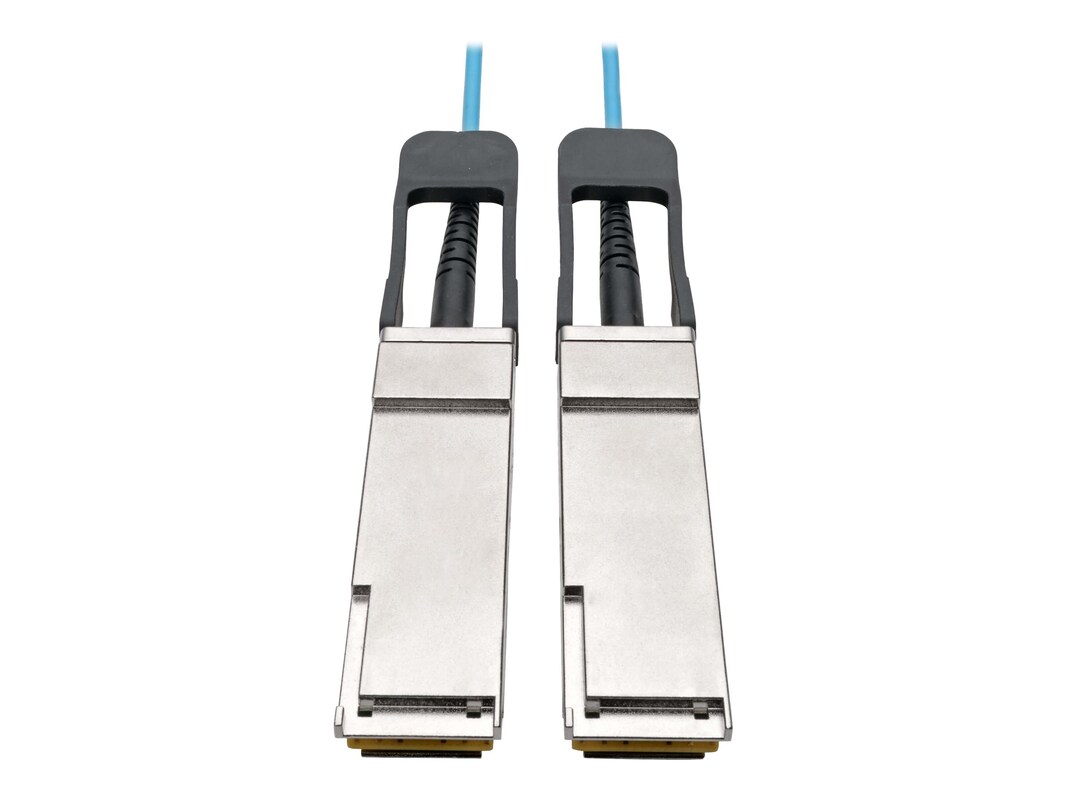

Tripp Lite N28F-10M-AQ Main Image from Front
Rollover to Zoom
NOTE: Images may not be exact; please check specifications.
  • Limited Quantity Available
  • Call for next available delivery
Length: 32.8 ft Length: 32.8 ft
Ordering Information
$435.95
Qty:
  • QSFP+ Connector(s)
  • IEEE 802.3ba/OM3, RoHS Compliant
  • Aqua
This QSFP+ Active Optical Cable (AOC) provides next-generation performance by combining four full-duplex 10 Gbps SFP+ channels into one affordable high-density package. Each male connector contains four fiber optic transceivers, each capable of data transfer speeds up to 10 Gbps. Together, the cable provides an aggregated speed up to 40 Gbps, making it ideal for switches, servers, routers and other high-end networking equipment.

The hot-pluggable QSFP+ connectors include ergonomic push/pull tabs, which are easily accessible in high-density applications and make the cable easy to install and remove with just one hand.

This QSFP+ to QSFP+ cable integrates a 40 Gbps Ethernet-optimized 38-position “board as connector” design. Die-cast zinc connectors offer superior EMI (electromagnetic interference) resistance and reduced crosstalk. The connectors have also been tested to meet stringent insertion loss standards. The QSFP+ optical cable’s 8-pair wire technology is optimized for 40GBASE-CR4, 6G SAS, Fibre Channel, PCIe, SONET and InfiniBand applications. The plenum-rated OFNP jacket is designed for connecting network components in drop ceiling, walls and ducts.

This QSFP+ cable is fully compliant with the latest QSFP+ Multi-Source Agreement (MSA), IEEE 802.3ba standards and industry-standard SFF-8436 specifications. It is compatible with all QSFP and QSFP+ ports.
