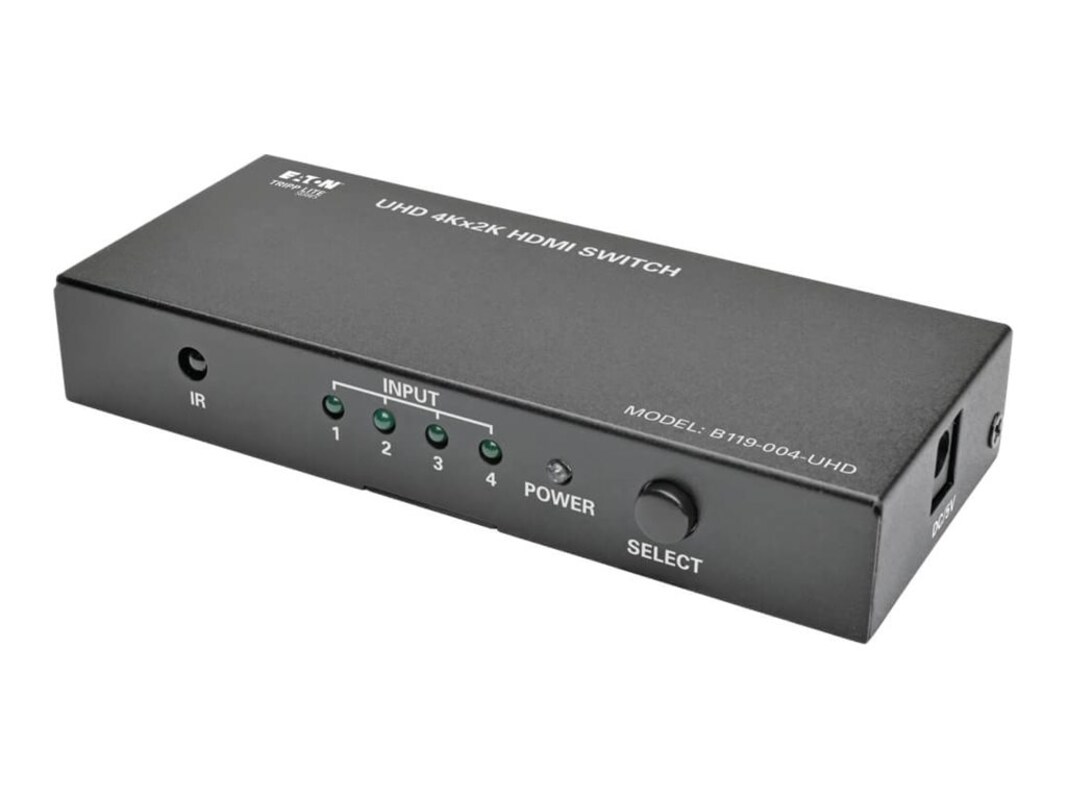

The B119-004-UHD 4-Port HDMI Switch allows you to connect four HDMI source devices to one port on an HDMI display and switch back and forth between them. For instance, you can connect a Blu-ray player, video game system, computer and cable/satellite DVR to one HDMI port on a monitor, projector or TV. Or you can connect up to four computers or media centers to a display for digital signage or presentation applications.
Connect your devices to the HDMI ports, and plug the included external power supply into an AC power source. A red LED indicates the unit is receiving power, and green LEDs indicate connected HDMI inputs. Switch between source devices using the unit's Select button or the included remote control. When the currently used device is powered off, the unit automatically switches to the next powered-on device.
The B119-004-UHD ensures top-quality performance with Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (4K x 2K) @ 60Hz and 48-bit True Color (16-bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio. It is compatible with 3D, HDCP v2.2 and EDID. Plug-and-play functionality requires no software or drivers to download and install.
Connect your devices to the HDMI ports, and plug the included external power supply into an AC power source. A red LED indicates the unit is receiving power, and green LEDs indicate connected HDMI inputs. Switch between source devices using the unit's Select button or the included remote control. When the currently used device is powered off, the unit automatically switches to the next powered-on device.
The B119-004-UHD ensures top-quality performance with Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (4K x 2K) @ 60Hz and 48-bit True Color (16-bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio. It is compatible with 3D, HDCP v2.2 and EDID. Plug-and-play functionality requires no software or drivers to download and install.
-
Features
Ideal for home entertainment systems, digital signs and video presentations
Switch between source devices via button on unit or included remote control
Automatically switches to next available device when currently used device is powered off
Red LED indicates unit is receiving power from AC outlet
Green LEDs indicate connected HDMI inputs
Supports Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz
Supports 48-bit True Color (16 bits per channel)
Supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio
Compatible with 3D, HDCP v2.2 and EDID
Plug and play right from the box with no software or drivers needed -
# Ports: 4
-
Switch, remote control, power supply, documentation
-
Color: BlackForm Factor: DesktopWarranty Period: 3 years
-
Networking Type: Video/audio switch
-
Connector A: HDMI (FEMALE)
Connector B: (4) HDMI (FEMALE)
Ports: (4)
-
Input: 100-240V, 50/60Hz, 0.4A
Output: 5V, 2A -
Networking Protocol: HDCP 2.2
-
This product is subject to our return policy. Please see our complete return policy for details.
-
0.96 lbs
-
Compliant Standards: EDID compatibleCompliant Standards: RoHS
-
52161540
-
3 Years
-
3 Years
