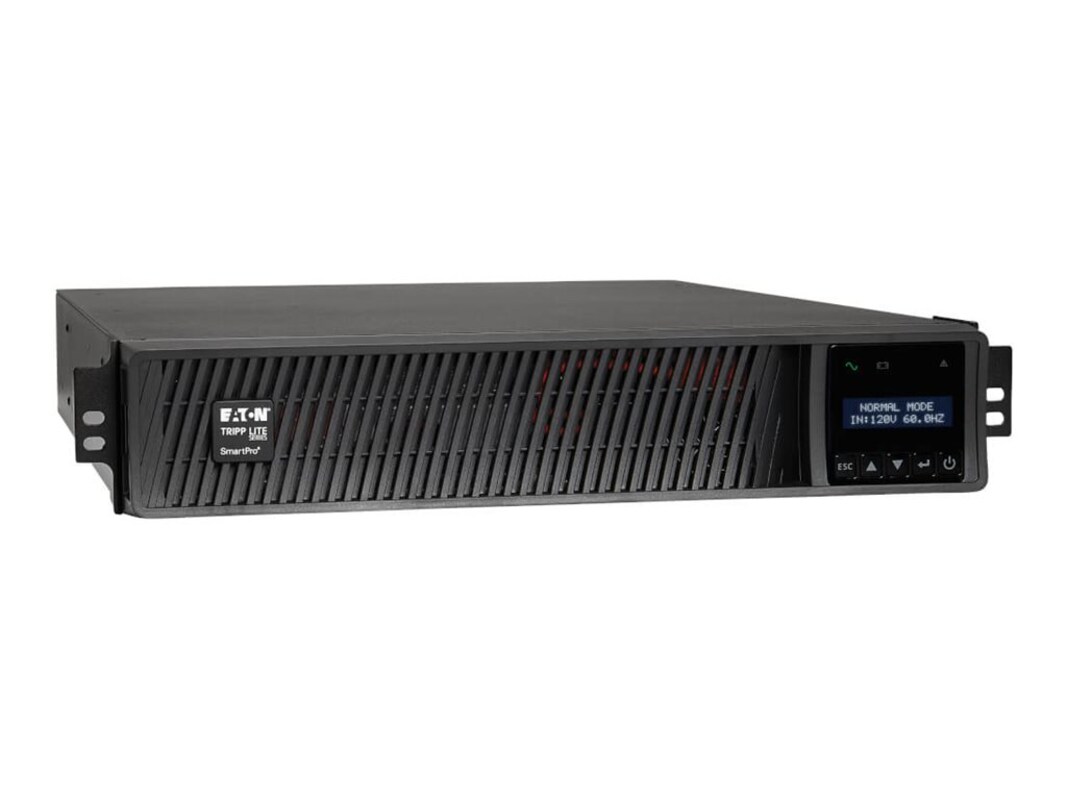

1.44kVA/1.44kW/120V Battery Backup for Distributed IT, Telecom or Enterprise Deployments:
This line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment. The SMART1500RXLTAA is ideal for large and small network devices, high-end workstations, storage and security equipment in labs, server rooms and data centers.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages:
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP48VRXLTAA, sold separately). The SMART1500RXLTAA restarts automatically once power is restored, regardless of battery charge level, saving you a costly site visit.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions:
Built-in AVR corrects abnormal voltage conditions without using the battery. The SMART1500RXLTAA maintains regulated 120V nominal output during brownouts and overvoltages from 80V to 151V while keeping the battery fully charged and ready to take over in case of power failure.
Pure Sine Wave Output and Unity Power Factor:
Pure sine wave output power ensures maximum stability while unity power factor ensures the most watts possible at each power rating, providing maximum compatibility with sensitive equipment.
Optional LXE Network Management Card Allows Remote Control and Access 24/7:
The WEBCARDLXE (sold separately) enables access to advanced features like switchable load banks, automatic email messaging on power events, and full remote control of the UPS. The IP-based Auto Probe feature ensures network uptime by communicating with other network devices and automatically rebooting IT equipment when a loss of connectivity is detected. Note: The SMART1500RXLTAA is not compatible with WEBCARDLX.
NEMA 5-15R Outlets Protect Your Connected Components:
Eight managed 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two programmable load banks that let you shed non-critical loads to extend runtime for critical loads. Front and rear cooling fans help protect equipment from overheating.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better:
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
ENERGY STAR-Certified to Help You Save Money and Protect the Environment:
By meeting strict U.S. Department of Energy and U.S. Environmental Protection Agency requirements, this ENERGY STAR 2.0 UPS system provides high operational efficiency to signal a reduction in BTU emissions, save on utility and cooling costs and help protect the environment.
Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring:
The two-line front-panel LCD monitoring screen features 10 selectable screens that allow quick access to a wide range of detailed UPS and site power information. LEDs show UPS status: a green light means utility p
-
50.70 lbs
-
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Pure sine wave output ensures maximum stability and compatibility with equipment
Automatic voltage regulation corrects abnormal voltage conditions without using the battery
Add external battery modules (sold separately) to extend UPS runtime during power outages
WEBCARDLXE (sold separately) allows full remote control of UPS and access to advanced features
2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
$250,000 Ultimate Lifetime Insurance
-
# Ports: 8Communication Interface: Serial (RS-232)Communication Interface: USBConnector: Power NEMA 5-15PConnector: Power NEMA 5-15RConnector: RS-232Connector: USB Type B
-
UPS, USB cable, DB9 cable, Rack-mounting hardware, Tower support stands, documentation
-
Color: BlackForm Factor: 2UForm Factor: ExternalWarranty Period: 2 yearsWeight Taxonomy: 50.71lbs
-
3.4"h x 17.2"w x 17.6"d
-
(8) 5-15R
(1) 5-15P
(1) RS-232
(1) USB Type B
(1) Battery detection
(1) Relay Out
-
Battery Run Time (max): 5.1minPower Capacity (VA): 1440VAPower Provided: 1400Power Provided: 1440WSurge Protection Rating: 380JoulesSurge Suppression: YesVoltage Provided: 120VVoltage Provided: DC 48V
-
INPUT:
Input Phase: Single-Phase
Rated input current (Maximum Load): 12A
Nominal Input Voltage(s) Supported: 120V AC
Nominal Input Voltage Description: 80V-151V (normal mode); adjustable to 70V-153V (extended mode)
UPS Input Connection Type: 5-15P
Input Circuit Breakers: 15A
UPS Input Cord Length (ft.): 10
Recommended Electrical Service: 15A 120V
OUTPUT:
Output Capacity (VA): 1440
Output Capacity (kVA): 1.44
Output Capacity (Watts): 1440
Output Capacity (kW): 1.44
Nominal Voltage Details: 120v nominal output in battery mode
Frequency Compatibility: 50 / 60 Hz
Output Voltage Regulation (Line Mode): 120V (-13%, +15%)
Output Voltage Regulation (Battery Mode): -10%, +6%
Load Management Receptacles: Two switchable two-outlet 5-15R load banks
Output AC Waveform (AC Mode): Sine wave
Output AC Waveform (Battery Mode): Pure Sine wave
Nominal Output Voltage(s) Supported: 100V; 110V; 120V; 125V
Output Receptacles: (8) 5-15R
-
Remote Management Protocol: SNMP
-
This product is subject to our return policy. Please see our complete return policy for details.
-
0 lbs
-
Compliant Standards: CECompliant Standards: FCC Part 15 ACompliant Standards: RoHSCompliant Standards: TAACompliant Standards: Yes
-
39121011
-
2 Years
-
2 Years
-
2-year warranty, 3 year with registration. Connected Equipment Insurance (U.S., Canada & Puerto Rico) - $250,000 Ultimate Lifetime Insurance
