Quiet Mobile Power for RV, Camping & Boating Applications

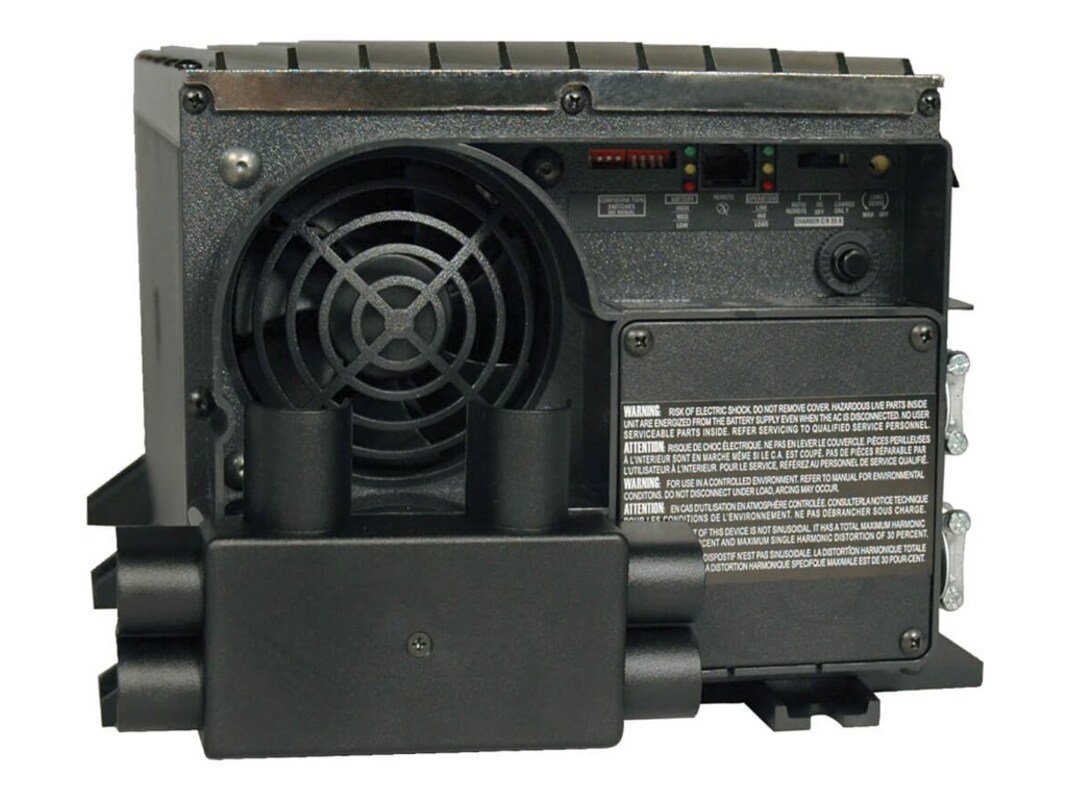

Tripp Lite’s MRV2012UL Inverter/Charger is the quiet alternative to gas generators with no fumes, fuel or noise to deal with. It provides equipment with utility- or generator-supplied AC electricity filtered through premium ISOBAR surge protection. This heavy-duty DC-to-AC inverter with automatic line-to-battery transfer and integrated charging system serves as an extended-run UPS, a standalone power source or an automotive inverter suitable for rugged RV applications. It supplies up to 2000 watts of continuous 120VAC power from any 12VDC battery or automotive DC source. The OverPower inverter output feature temporarily provides up to 150% of the continuous output for up to 60 minutes and the DoubleBoost inverter output feature delivers up to 200% of the continuous output for up to 10 seconds, providing the extra power needed to cold-start heavy-duty power tools and motorized equipment.
When hardwire AC input is energized, commercial power passes through to connected equipment and the battery set is recharged via 3-stage charging system with user-selectable 25/100 amp charger output. In UPS mode, the MRV APS system responds to blackouts and voltage fluctuations with a near-instantaneous automatic transfer to battery-derived AC output. The reliable large transformer design with frequency control powers resistive electronic loads or large inductive motors, compressors and other items with high current needs on startup. The unit is highly adaptable to a variety of applications and site conditions with adjustable charger settings for wet/gel battery types and selectable line to battery power transfer voltages.
When hardwire AC input is energized, commercial power passes through to connected equipment and the battery set is recharged via 3-stage charging system with user-selectable 25/100 amp charger output. In UPS mode, the MRV APS system responds to blackouts and voltage fluctuations with a near-instantaneous automatic transfer to battery-derived AC output. The reliable large transformer design with frequency control powers resistive electronic loads or large inductive motors, compressors and other items with high current needs on startup. The unit is highly adaptable to a variety of applications and site conditions with adjustable charger settings for wet/gel battery types and selectable line to battery power transfer voltages.
-
43.20 lbs
-
LEDS ALARMS & SWITCHES
Front panel LEDs: (6) LEDs offer continuous status information on load (6 levels reported) and battery charge level (7 levels reported). See manual for sequences.
Switches: 3-position on/off/remote switch enables simple on/off power control plus auto/remote setting that enables distant on/off control of the inverter system when used in conjunction with APSRM4 accessory (sold separately) in inverter mode. In AC uninterruptible power mode, auto/remote setting enables automatic transfer from line power to battery power, maintaining continuous AC power to connected loads.
SURGE / NOISE SUPPRESSION
AC surge suppression: Heavy-duty Isobar AC surge suppression included
LINE / BATTERY TRANSFER
Transfer time from line power to battery mode: 16.6 ms (typical - compatible with many computers - verify transfer time compatibility of loads for UPS applications)
Low voltage transfer to battery power: In AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 75V (user-adjustable to 85, 95, 105V - see manual)
High voltage transfer to battery power: In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 145V
SPECIAL FEATURES
Appearance: Attractive black color scheme w/beveled aluminum top
Load Sensing: Optional load-sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on. Front panel load-sense potentiometer can be set to shutoff or turn on inverter power in response to loads of any level, up to 150 watts. -
Connector: Hardwire
-
Unit, battery temperature sensor cable, conduit hanger, documentation
-
Color: Attractive blackColor: BlackForm Factor: ExternalWarranty Period: 30 monthsWeight Taxonomy: 42.77lbs
-
8"h x 10.5"w x 17.5"d
-
Power Provided: 2kWPower Provided: 2000WSurge Suppression: StandardSurge Suppression: YesVoltage Provided: AC 120/ DC 12V
-
Voltage compatibility: 12VDC / 120VAC
Frequency compatibility: 60Hz
OUTPUT
Output capacity: 2000W (continuous) / 4000W (peak)
Output nominal voltage: 120VAC / 12VDC (Charger)
Output voltage regulation: LINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 120V AC (+/-5%).
Output frequency regulation: 60Hz (+/- 0.3Hz)
Overload protection: Includes 25A input breaker dedicated to the charging system
INPUT
Maximum input amps / watts: DC INPUT: Full continuous load - 190A at 12V DC. AC INPUT: 38 amps at 120V AC with full inverter and charger load
Recommended electrical service: DC INPUT: Requires 12VDC input source capable of delivering 190A for the required duration (when used at full continuous capacity - DC requirements increase during OverPower and DoubleBoost operation). For automotive applications, professional hardwire installation with 350A minimum battery system fusing is recommended. AC INPUT: 120V AC
BATTERY
DC system voltage: 12V
Battery recharge rate: 25A /100A (user-selectable)
Expandable battery runtime: Runtime is expandable with any number of user-supplied wet or gel type batteries -
This product is subject to our return policy. Please see our complete return policy for details.
-
46.6 lbs
-
Compliant Standards: RoHS
-
