Ask the Experts: Have a Question on Managing VMware Workloads on Azure?

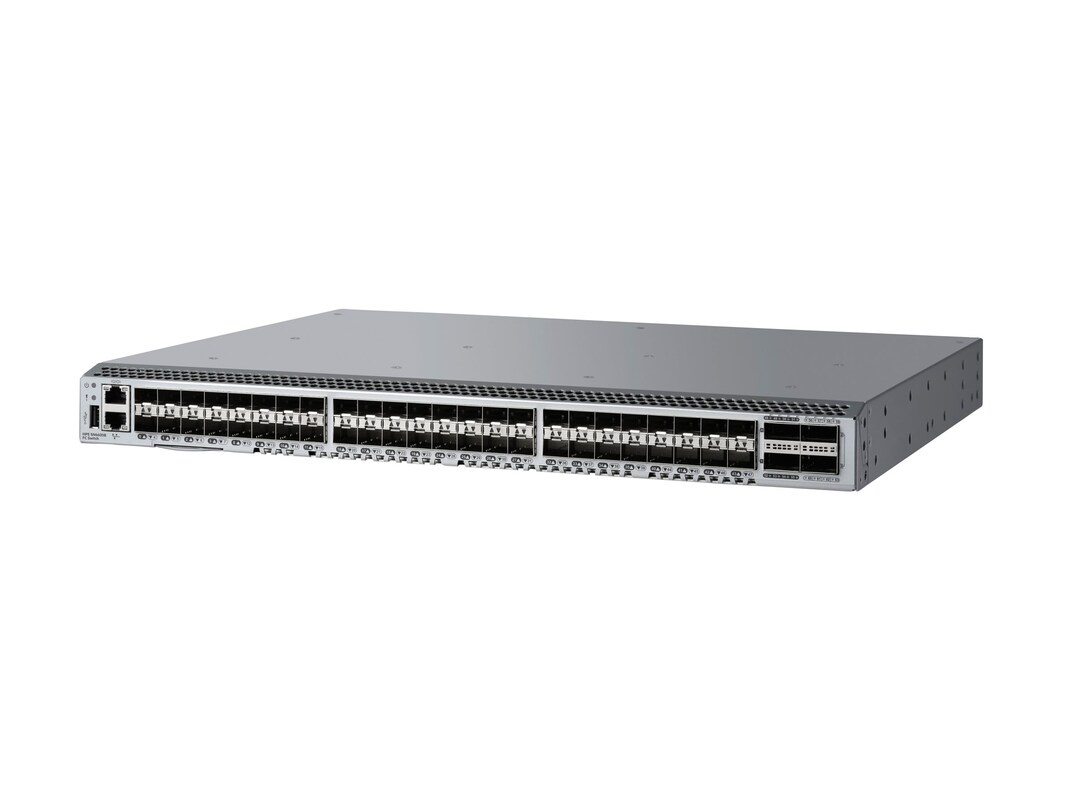

HPE StoreFabric SN6600B 32Gb 48 24 1U RM Managed Switch 24x32GbFC SFP+ 24x32GbFC SFP+ PoD 4x32GbFC QSFP+
-
Temporarily Out-of-Stock
- Call for next available delivery
Ordering Information
$33,149.68
Add to Cart
Messages
Loading
-
:
Quick View
Getting Details
Today's mission-critical storage environments require greater consistency, predictability, and performance to keep pace with growing business demands. Faced with explosive data growth, data centers need more IO capacity to accommodate the massive amounts of data, applications, and workloads. In addition to this surge in data, collective expectations for availability continue to rise. Users expect applications to be available and accessible from anywhere, at any time, on any device. To meet these dynamic and growing business demands, organizations need to deploy and scale up applications quickly. As a result, many are moving to higher Virtual Machine (VM) densities to enable rapid deployment of applications and deploying flash storage to help those applications scale to support thousands of users. To increase agility, reduce expenses, and realize the full benefits of these architectures, organizations need the network to deliver the performance required by today's server and storage environments. In addition, storage networks are becoming increasingly important to application performance, which means that they also must become easier to administer and manage. By treating the network as a strategic part of a highly virtualized environment, organizations can increase optimization and efficiency even as they rapidly scale their environments.
The HPE SN6600B Fiber Channel Switch meets the demands of hyper-scale virtualization, larger cloud infrastructures, and growing flash-based storage environments by delivering 32 Gb Fiber Channel technology and capabilities. It provides a high-density building block for increased scalability, designed to support growth, demanding workloads, and data center consolidation in small to large-scale enterprise infrastructures. It is built for maximum flexibility, scalability, and ease of use. It also provides a simplified deployment process and a point-and-click user interface-making it both powerful and easy to use. With the SN6600B switch organizations gain high-performance access to advanced storage technology and pay-as-you-grow scalability to support an evolving storage environment.
The HPE SN6600B Fiber Channel Switch meets the demands of hyper-scale virtualization, larger cloud infrastructures, and growing flash-based storage environments by delivering 32 Gb Fiber Channel technology and capabilities. It provides a high-density building block for increased scalability, designed to support growth, demanding workloads, and data center consolidation in small to large-scale enterprise infrastructures. It is built for maximum flexibility, scalability, and ease of use. It also provides a simplified deployment process and a point-and-click user interface-making it both powerful and easy to use. With the SN6600B switch organizations gain high-performance access to advanced storage technology and pay-as-you-grow scalability to support an evolving storage environment.
-
17.00 lbs
-
# Ports: 4# Ports: 48
-
Switch, rack mounting kit, documentation
-
Chassis Form Factor: 1U RackmountColor: GrayForm Factor: Rack-mountableWarranty Period: 1-year warrantyWeight Taxonomy: 17.04lbs
-
Aggregate bandwidth: 2 Tbps
Port-to-port latency: 700 ns
Maximum frame size: 2112 -
Networking Type: Switch
-
1.7"h x 17.3"w x 14.0"d
-
I/O:
(24) 32Gb Fibre Channel SFP+
(24) 32Gb Fibre Channel SFP+ Ports on Demand (PoD)
(4) 32Gb Fibre Channel QSFP+
(1) 100Base-TX RJ-45 management
(1) RJ-45 console management
(1) USB Type-A
(2) Power in -
# Power Supplies Installed: 0# Power Supplies Supported: 2
-
Supports up to (2) internal hot-plug power supplies with 1+1 power redundancy
Voltage required: 120/230V AC, 50/60Hz -
Networking Protocol: 32Gb Fibre ChannelNetworking Protocol: Dynamic Fabric Provisioning (DFP)Networking Protocol: Dynamic path selection (DPS)Networking Protocol: Enhanced BB Credit RecoveryNetworking Protocol: Fabric Performance Impact (FPI) monitoringNetworking Protocol: Fabric Shortest Path First (FSPF)Networking Protocol: Fabric-Device Management Interface (FDMI)Networking Protocol: Fast EthernetNetworking Protocol: ISL supportNetworking Protocol: ISL TrunkingNetworking Protocol: ManageableNetworking Protocol: Quality of Service (QoS)Networking Protocol: Registered State Change Notification (RSCN) supportNetworking Protocol: Reliable Commit Service (RCS)Networking Protocol: Role-Based Access Control (RBAC)Networking Protocol: Secure Copy (SCP)Networking Protocol: SFTP clientNetworking Protocol: SFTP serverNetworking Protocol: Simple Name Server (SNS)Networking Protocol: Slow Drain Device Quarantine (SDDQ)Networking Protocol: Syslog supportRemote Management Protocol: CLIRemote Management Protocol: HTTPRemote Management Protocol: HTTPSRemote Management Protocol: SMI-SRemote Management Protocol: SNMP 1Remote Management Protocol: SNMP 3Remote Management Protocol: SSHRemote Management Protocol: SSH-2
-
This product is subject to our return policy. Please see our complete return policy for details.
-
11.79 lbs
-
43222612
-
1 Year
-
1 Year
-
Warranty includes onsite service, parts, labor, and next business day response time.
