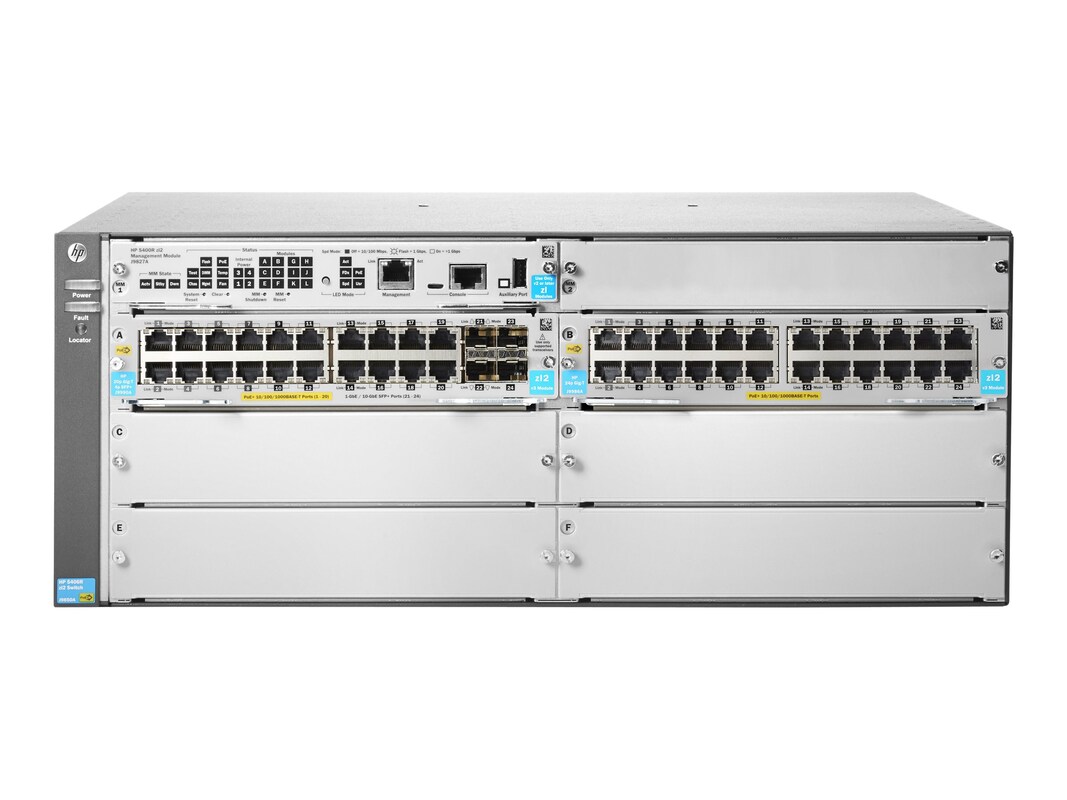

HPE 5406R 4U RM Managed Switch P2020 1.2GHz 4GB RAM 1GB Flash 44xGbE 4xSFP+

28.10 lbs

switch, fan tray, rack mounting kit, documentation

Features:
Power and Innovation to Converge Your Mobile Campus:
The HP 5400R zl2 Switch Series is an industry leading mobile campus access solution with HP Smart Rate multi-gigabit ports for high speed connectivity for next wave 802.11ac devices. It brings enterprise-class resiliency and true flexibility, security and scalability to converged campus networks.

Based on the 6th generation HP Networking ASIC, the 5400R has a high-speed, high-capacity architecture with 2 Tbps crossbar switching fabric with low 2.1mu latency and unprecedented programmability and leading edge SDN applications.

Flexible connectivity options with 6 or 12 slot compact chassis, support for line rate 40 GbE, up to 96 line rate 10GbE ports (SFP+ and 10GBASE-T), 1GbE and up to 288 ports of PoE+ with internal power supplies.

SDN ready with OpenFlow 1.3 supporting future enhancements for your network.

License free software with advanced Layer 2 and 3 feature set including IPv6, IPv4 BGP, policy based routing, OSPF and robust QoS.

Resiliency and High Availability at the Edge:
The HP 5400R zl2 Switch Series utilizing the 6th generation HP Networking ASIC delivers wire-speed classification and policy enforcement. This hardware-based control of access and traffic allows protection, detection and response to network threats with no network performance degradation.

Nonstop switching and routing for improved support of applications such as unified communications and enhanced L3 high availability.

Redundant management and power enhances system availability and continuity of operations.

Hot-swappable modules and optional redundant power supply provides uninterrupted power and allows swapping of modules with no impact on the network availability.

Powerful virtualization with versatile HP AllianceOne service modules.

Robust Security and Dynamic Quality of Service:
The HP 5400R zl2 Switch Series includes a robust set of security and quality of services features to build a network that meets ever-changing corporate policies and compliances.

Flexible authentication options include 802.1X, MAC and Web Authentication, delivering greater security and policy-driven application authentication.

Industry standard MACSec provides link-level encryption security between two points using copper or fiber links (available on select modules only).

Advanced distributed denial of service (DDOS) protection, such as DHCP Snooping, IP Source Guard, and ARP Protection, and flexible traffic controls, such as policy-based routing, QoS, and ACLs, to manage end-to-end application priorities.

Powerful multilevel-access security controls, such as varying security management login, RADIUS/TACACS+, and SSH for safe control change management access.

Defend the edge of your IPv6 network with DHCPv6 Protection and Dynamic IPv6 Lockdown.

Single View of the Network with Industry Leading Warranty:
The HP 5400R zl2 Switch Series can be seamlessly managed with HP Intelligent Management Center (IMC) Software to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.

RMON, XRMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.

Specifications:
Latency:
1000 Mb Latency: < 2.8 µs
10 Gbps Latency: < 1.8 µs
40 Gbps Latency: < 1.5 µs
Throughput: 571.4 Mpps
Routing/Switching Capacity: 960 Gbps
Switch Fabric Speed: 1015 Gbps

16MB flash
1GB SD Card
4GB DDR3 SODIMM

6.9"h x 17.5"w x 17.8"d

Expansion slots:
(6) Expansion slots (4 free)
(1) SD memory card (occupied)

I/O:
(44) 1000Base-T RJ-45
(4) SPF+
(2) Power in

There are no power supplies pre-installed; supports 2 maximum.
