In Stock
- Ships in 1-2 Business Days

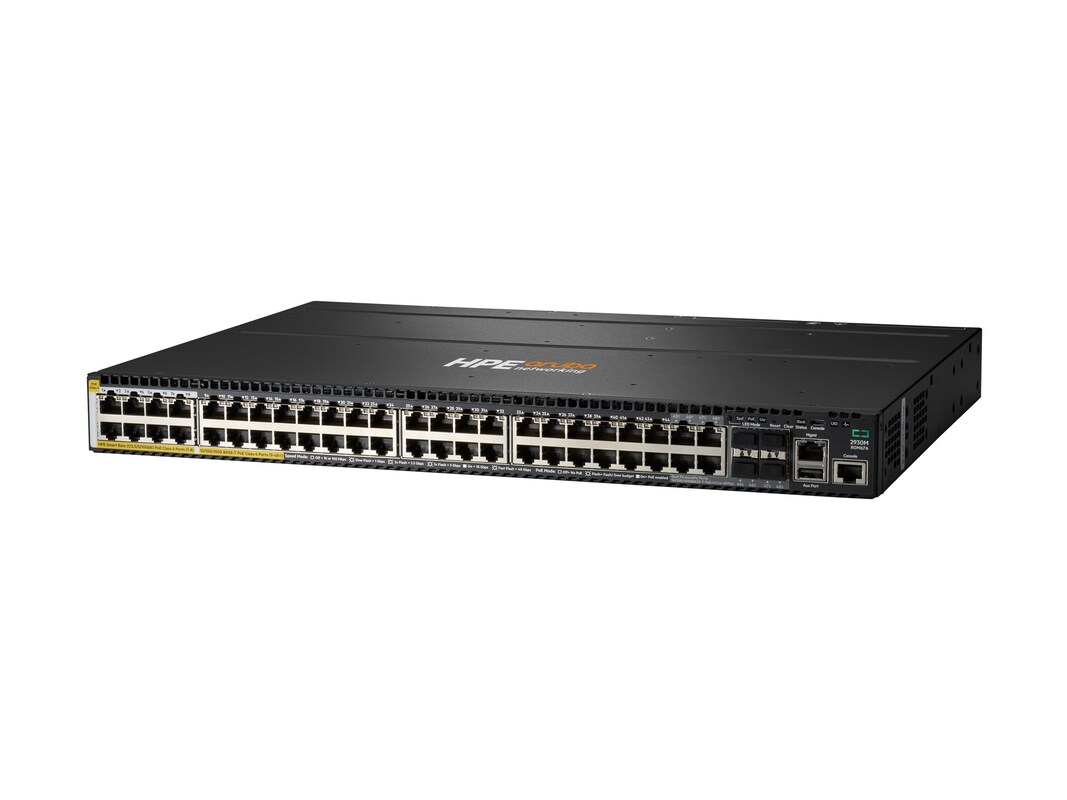

The Aruba 2930M Switch Series is designed for digital workplaces optimized for mobile users. These powerful Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Modular stacking, uplinks and power provide scalability and simplicity for enterprise edge, SMB and branch office networks. The 2930M delivers performance and value with support for static, RIP and Access OSPF routing, 10GbE and 40GbE uplinks, models with 24 ports of HPE Smart Rate multi-gigabit Ethernet, up to 1440W of PoE, robust QoS, and Dynamic Segmentation for unified and secure access.
-
9.80 lbs
-
# Ports: 36# Ports: 4# Ports: 8
-
Switch, documentation
-
Chassis Form Factor: 1U RackmountColor: BlackForm Factor: Rack-mountableWarranty Period: Limited lifetimeWeight Taxonomy: 9.9lbs
-
Latency (1 Gbps): 3.1 µs
Latency (2.5 Gbps): 6.5 µs
Latency (5 Gbps): 4.2 µs
Latency (10 Gbps): 3.4 µs
Throughput: 112 Mpps
Stacking bandwidth: 100 Gbps
Switching capacity: 320 Gbps
IPv4 routing table entries: 2000
IPv6 routing table entries: 1000
OSPF routes: 200
RIP routes: 10000
Static routes: 256
MAC Address Table Size: 32768 entries
Jumbo Frame Support: 9220 bytes -
RAM (installed): 1GBRAM Technology: DDR3 SDRAM
-
ARM Cortex-A9 1.016GHz proecssor
1GB DDR3 SDRAM
4GB Flash memory -
Networking Type: Switch
-
1.7"h x 17.4"w x 12.8"d
-
Expansion slots:
(1) Stacking module slot
(1) Expansion slot
I/O:
(36) 1000Base-T PoE+
(4) 1000Base-T PoE+
(8) 1/2.5/5/10GBase-T PoE+
(1) Serial console
(1) USB Type-B
(1) 1000Base-T management
(2) Power in -
# Power Supplies Installed: 0# Power Supplies Supported: 2
-
There are no power supplies pre-installed; supports 2 maximum.
Voltage required: 120 to 230V AC, 50 to 60Hz
PoE budget: 1440W -
# Processors Installed: 1Processor Manufacturer: ARMProcessor Model Number: A9Processor Speed: 1.016GHzProcessor Type: CortexProcessor Type: Cortex-A9
-
Networking Protocol: 10 Gigabit EthernetNetworking Protocol: 2.5 Gigabit EthernetNetworking Protocol: 5 Gigabit EthernetNetworking Protocol: Gigabit EthernetNetworking Protocol: IEEE 802.1ab (LLDP)Networking Protocol: IEEE 802.1adNetworking Protocol: IEEE 802.1AXNetworking Protocol: IEEE 802.1DNetworking Protocol: IEEE 802.1pNetworking Protocol: IEEE 802.1QNetworking Protocol: IEEE 802.1sNetworking Protocol: IEEE 802.1vNetworking Protocol: IEEE 802.1WNetworking Protocol: IEEE 802.1xNetworking Protocol: IEEE 802.3abNetworking Protocol: IEEE 802.3ad (LACP)Networking Protocol: IEEE 802.3afNetworking Protocol: IEEE 802.3atNetworking Protocol: IEEE 802.3azNetworking Protocol: IEEE 802.3btNetworking Protocol: IEEE 802.3bzNetworking Protocol: IEEE 802.3xNetworking Protocol: IGMPNetworking Protocol: IGMP v2Networking Protocol: IGMP v3Networking Protocol: OSPFNetworking Protocol: PoE+Networking Protocol: RIPNetworking Protocol: SSHRemote Management Protocol: CLIRemote Management Protocol: HTTPRemote Management Protocol: RMON 1Remote Management Protocol: SNMPRemote Management Protocol: SNMP 1Remote Management Protocol: SNMP 2Remote Management Protocol: SNMP 2cRemote Management Protocol: SNMP 3Remote Management Protocol: SSHRemote Management Protocol: SSH-2Remote Management Protocol: TelnetRemote Management Protocol: XRMONRouting Protocol: CIDRRouting Protocol: ECMPRouting Protocol: IGMPRouting Protocol: IGMPv2Routing Protocol: IGMPv3Routing Protocol: MLDRouting Protocol: OSPFRouting Protocol: OSPFv2Routing Protocol: OSPFv3Routing Protocol: RIPRouting Protocol: RIP-1Routing Protocol: RIP-2Routing Protocol: RIPngRouting Protocol: Static IP routingRouting Protocol: Static IPv4 routingRouting Protocol: Static IPv6 routing
-
This product is subject to our return policy. Please see our complete return policy for details.
-
16 lbs
-
Compliant Standards: CISPR 22 Class ACompliant Standards: CISPR 24Compliant Standards: CNS 13438Compliant Standards: CSA C22.2 No. 60950-1-07 Second EditionCompliant Standards: EN 55022:2010Compliant Standards: EN 55024:2010Compliant Standards: EN 60825-1:2007Compliant Standards: EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013Compliant Standards: EN 61000-3-2Compliant Standards: EN 61000-3-3Compliant Standards: FCC CFR47 Part 15 ACompliant Standards: ICES-003 Class ACompliant Standards: IEC 60825-1:2007Compliant Standards: IEC 60950-1:2005 + A1:2009 + A2:2013Compliant Standards: IEC 61000-3-2Compliant Standards: IEC 61000-3-3Compliant Standards: IEC 61000-4-11Compliant Standards: IEC 61000-4-2Compliant Standards: IEC 61000-4-3Compliant Standards: IEC 61000-4-4Compliant Standards: IEC 61000-4-5Compliant Standards: IEC 61000-4-6Compliant Standards: IEC 61000-4-8Compliant Standards: UL 60950-1 Second EditionCompliant Standards: VCCI Class A
-
Hard Drive Capacity: 4GBHard Drive Type: Flash
-
43222612
-
Limited Lifetime
-
Limited Lifetime
