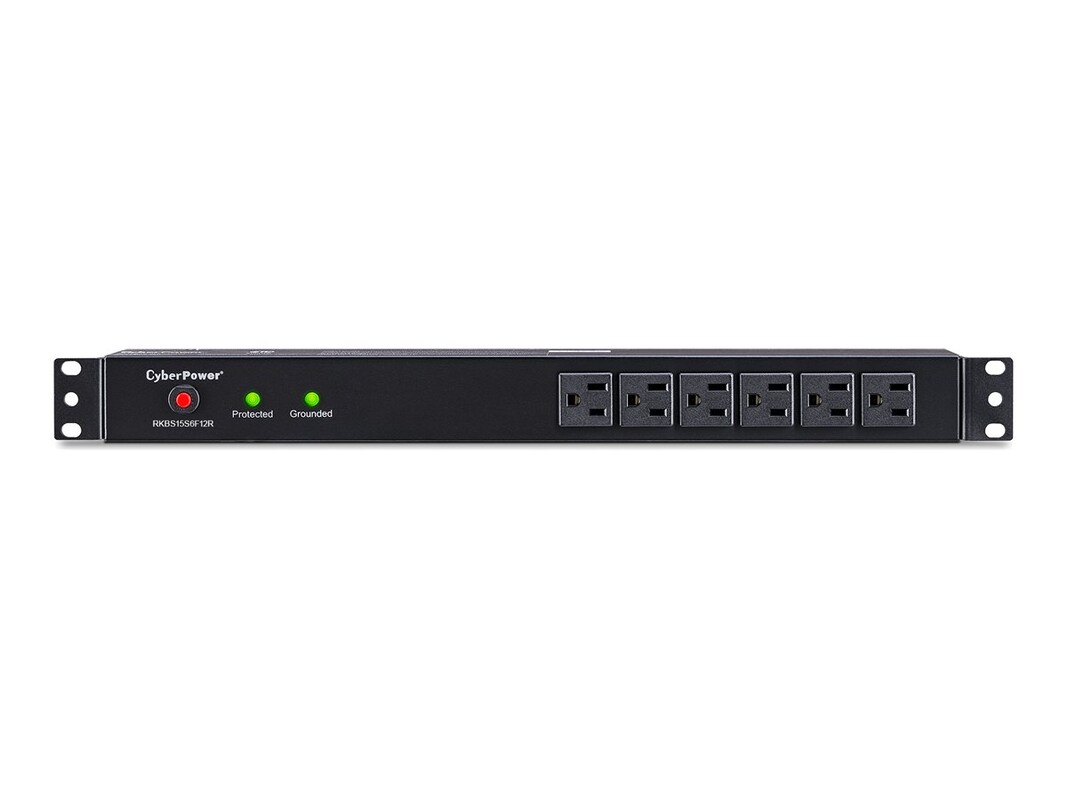

The CyberPower 18-outlet (6 Front and 12 Rear) rack mounted Rackbar surge suppressor (RKBS15S6F12R) provides 120V, 15A output and a surge suppression rating of 3,600 joules. It distributes power to (18) NEMA 5-15R receptacles from a single NEMA 5-15P plug. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty and $150,000 Connected Equipment Guarantee ensures the Rackbar surge suppressor is free of defects in design, assembly, material or workmanship.
-
4.22 lbs
-
Rack Size: 1U
Style: Rackmount, Vertical Rackmount, Under-Counter
Form Factors Supported: 1U rackmount, 0U vertical rackmount, undercounter installation supported
Cord Retention Tray/Cord Organizers: Yes
Adjustable Mounting Brackets: (2) sets(L-short/L-long)
External Site Ground Pin: Yes
Material of Construction: Metal
Certifications: UL1363 UL1449 certified by ETL(USA), CSA C22.2(Canada), RoHS Compliant -
# Ports: 18Connector: Power NEMA 5-15Connector: Power NEMA 5-15 (F)Connector: Power NEMA 5-15 (M)
-
Unit, mounting brackets, documentation
-
Color: BlackForm Factor: Rack-mountableWarranty Period: Limited lifetimeWeight Taxonomy: 4.19lbs
-
1.75"h x 17.5"w x 2.25"d
-
Input
Plug Type: NEMA 5-15P
Plug Style: Straight
Cord Length: 15ft
Output
Outlets, Total: (18)
Outlets, Front: (6)
Outlets, Rear: (12)
Outlet Type: NEMA 5-15R -
Surge Protection Rating: 3600JoulesSurge Suppression: YesVoltage Provided: 120VVoltage Provided: AC 120V
-
Input
Voltage: 120V
Frequency: 50Hz/60Hz
Maximum Input Current: 15A
Output
Overload Protection: 15A
Nominal Output Voltage: 120V
LED Indicators: Power On(Green), Grounded (Green)
Surge Protection and Filtering
Surge Suppression: 3,600 Joules
Protection Modes: N-H, N-G, and H-G
Maximum Surge Current: 180,000 Amps
Maximum Surge Voltage: 6,000 Volts
Clamping Voltage N-H, N-G, H-G 400V
Response Time: (1) nanosecond
EMI/RFI Filtration: Yes
Attenuation: Up to 50dB -
This product is subject to our return policy. Please see our complete return policy for details.
-
37.35 lbs
-
Compliant Standards: CSA C22.2Compliant Standards: ETLCompliant Standards: RoHSCompliant Standards: UL 1363Compliant Standards: UL 1449
-
39121610
-
Lifetime
-
Lifetime
-
$150,000 Connected Equipment Guarantee
