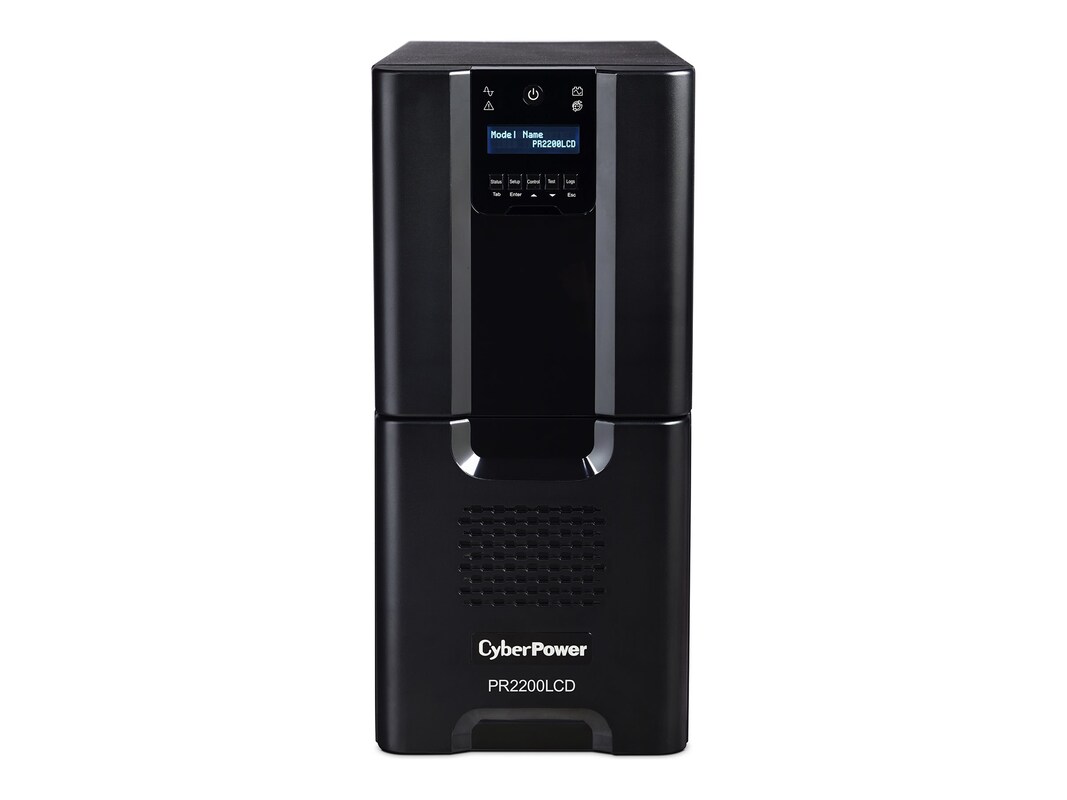

The CyberPower Smart App Sinewave PR2200LCD mini-tower uninterruptible power supply (UPS) with LCD control panel and pure sine wave output is Active PFC compatible for safeguarding mission-critical servers, telecom equipment, VoIP and internetworking hardware that require seamless pure sine wave power. Its full Automatic Voltage Regulation (AVR) boost/buck technology delivers a consistent and clean AC power, protecting connected equipment and preventing costly business interruptions. Patented GreenPower UPS advanced circuitry increases efficiency and reduces UPS energy costs.
The LCD control panel provides 41 different settings to check status and customize the operating settings for the PR2200LCD, plus it can be removed and mounted separately from the UPS for ease of use regardless of where the UPS is installed. Functions include menus for checking power status on (11) different parameters, (23) settings for setup and control of the UPS, (3) battery test & calibration options, and (4) selections in the Log menu. With its attached cable the LCD control panel can be removed from the UPS and relocated up to 4.5ft. away from the UPS for ease of viewing when installed in hard to reach locations.
The PR2200LCD unit has a capacity of 2200VA/1980Watts, eight (8) NEMA 5-15R & (2) 5-20R receptacles and four (4) maintenance-free, user-replaceable 12V/17.0Ah batteries. This unit offers connectivity via one (1) HID USB, one (1) DB9 serial and one (1) emergency power off (EPO) port. EMI/RFI filters increase the immunity of the load to noise disturbances.
This UPS unit incorporates microprocessor-based fully digital control and includes PowerPanel® Business Edition providing the user unsurpassed flexibility and control. An optional SNMP / HTTP Remote Management adapter (RMCARD202) supports remote management and control of the PR2200LCD through a standard web browser. A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $375,000 Connected Equipment Guarantee.
The LCD control panel provides 41 different settings to check status and customize the operating settings for the PR2200LCD, plus it can be removed and mounted separately from the UPS for ease of use regardless of where the UPS is installed. Functions include menus for checking power status on (11) different parameters, (23) settings for setup and control of the UPS, (3) battery test & calibration options, and (4) selections in the Log menu. With its attached cable the LCD control panel can be removed from the UPS and relocated up to 4.5ft. away from the UPS for ease of viewing when installed in hard to reach locations.
The PR2200LCD unit has a capacity of 2200VA/1980Watts, eight (8) NEMA 5-15R & (2) 5-20R receptacles and four (4) maintenance-free, user-replaceable 12V/17.0Ah batteries. This unit offers connectivity via one (1) HID USB, one (1) DB9 serial and one (1) emergency power off (EPO) port. EMI/RFI filters increase the immunity of the load to noise disturbances.
This UPS unit incorporates microprocessor-based fully digital control and includes PowerPanel® Business Edition providing the user unsurpassed flexibility and control. An optional SNMP / HTTP Remote Management adapter (RMCARD202) supports remote management and control of the PR2200LCD through a standard web browser. A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $375,000 Connected Equipment Guarantee.
 |  |
-
116.00 lbs
-
Features and Benefits
Pure sine wave - When operating on battery, the Smart App Sinewave UPS outputs power with a pure sine wave that is identical to or cleaner than the power from the utility company grid, free of harmonic distortion and electrical noise, resulting in optimal line clarity.
LCD Control Panel – The innovative LCD interface enables users to check UPS Status, manage UPS Setup & Control, and run Testing/Battery Calibration options. Status and Log menus provide UPS vitals including input & output voltage levels, battery information, runtime estimates, load information, event and fault logging, and other system information. The Setup and Control menus offer users the ability to customize their PR1500LCD UPS to their specific parameters of operation including shutdown options, voltage sensitivity, alarm settings and other parameters. The Test menu enables self testing and battery calibration to insure your UPS is operating correctly.
Removable LCD Control Panel – The LCD Control Panel on the PR1500LCD can be removed and relocated for easy viewing using the attached 4.5 FT. cable. This feature provides easy access to view status or change settings on the UPS when its installed in a hard to reach area such as the bottom of a rack, under a desk, in a crowed IT closet, or on the floor.
Full Automatic Voltage Regulation – Full AVR boost/buck topology stabilizes the AC voltage by increasing low voltages and decreasing high voltages to maintain a safe voltage level without switching to battery-mode. This conserves battery life, and delivers cleaner AC power to connected equipment.
Reduce Energy Costs & Heat Loss – Patented GreenPower UPS advanced bypass circuitry reduces UPS energy consumption by up to 75% compared to competitive models. This unique design also reduces the amount of heat generated by the UPS.
Tamper-proof Power Button: The Power button has been specifically designed to minimize the chance the UPS can be turned off or interfered with by accident.
USB Connectivity - HID compliant USB port enables full integration with built-in power management and auto shutdown features of Windows, Linux and Mac OS X.
EMI/RFI Filters – Filters against electromagnetic interference and radio frequency interference ensuring clean power for connected equipment.
Audible Alarms - Distinctive tones identify when the unit is running on battery power, if it is overloaded, or when the battery is low.
Resettable Circuit Breaker – Convenient unit reset switch in case of an overload.
3-Year Warranty – Stringent manufacturing processes and innovative product design enables CyberPower to offer one of the strongest warranties in our industry. CyberPower will repair or replace damaged units within three (3) years of purchase date.
Technical Support – CyberPower will assist customers with any product, installation, or warranty concerns, free of charge.
ISO and Safety Certifications – All CyberPower manufacturing facilities are state-of-the-art and ISO-9001 Quality Tested. Our products are certified by the FCC, cUL, and UL.
Windows Compatibility – Our PowerPanel power management software has been fully tested and is compatible with Windows 8 32/64, Windows 7 32/64, Vista 32/64, XP 32/64, 2000, 2003, Server 2008 and Server 2012. -
# Ports: 10Communication Interface: Serial (RS-232)Communication Interface: USBConnector: Power NEMA 5-15 (F)Connector: Power NEMA 5-20 (F)Connector: Power NEMA L5-30Connector: Power NEMA L5-30 (M)
-
UPS, EPO cable, software CD, serial cable, USB cable, documentation
-
Attributes: Automatic voltage regulation (AVR)Attributes: Line interactiveColor: BlackForm Factor: ExternalForm Factor: TowerWarranty Period: 3 yearsWeight Taxonomy: 115.96lbs
-
17"h x 7.7"w x 20.2"d
-
Input
Plug Type: NEMA L5-30P
Plug Style: Straight
Cord Length: 10 feet
Output
Outlets: NEMA 5-15R (8), NEMA 5-20R (2) (Battery & Surge Protected)
Management
(1) USB type B port
(1) DB-9 RS-232 serial port
(1) Emergency Power Off (EPO)
(1) SNMP/HTTP network slot for OPTIONAL RMCARD202 -
Battery Run Time (max): 8minPower Capacity (VA): 2200VAPower Provided: 1980Power Provided: 1980WSurge Suppression: StandardSurge Suppression: YesVoltage Provided: 12VVoltage Provided: 120V
-
Input
Voltage: 120V
Automatic Voltage Regulation: Yes
Voltage Range: 75-154VAC
Frequency: 47-63Hz (auto-sensing)
Output
Capacity: 2200VA/1980W
On Battery Voltage: 120Vac +/- 5%
On Battery Frequency: 50/60Hz +/- 1%
On Battery Waveform: Sine Wave
Overload Protection: Internal circuitry limiting / circuit breaker
Transfer Time: 4-8ms
Battery
Runtime at Half Load: 26 minutes (990W)
Runtime at Full Load: 8 minutes (1980W)
Battery Type: Sealed lead acid
Battery Size: 12V/17AH
User Replaceable: Yes
Hot Swappable: Yes
Typical Recharge Time: 8 Hours
Replacement Battery: RB12170X4
Battery Quantity: (4)
Surge Suppression: 1,030 Joules -
This product is subject to our return policy. Please see our complete return policy for details.
-
122.6 lbs
-
Compliant Standards: CSA C22.2 No. 107.3Compliant Standards: CULCompliant Standards: DOC-BCompliant Standards: FCCCompliant Standards: FCC Class B certifiedCompliant Standards: RoHSCompliant Standards: UL 1778
-
39121011
-
3 Years
-
3 Years
-
$375,000 Connected Equipment Guarantee
