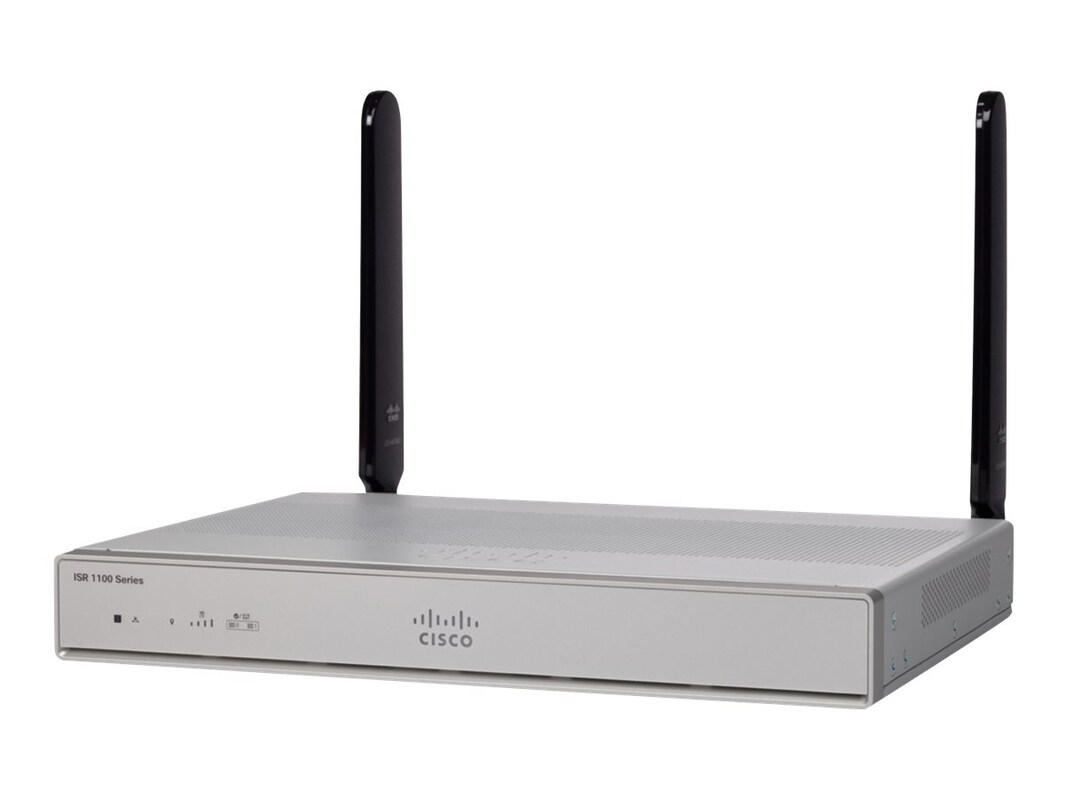

Cisco 1100 Series Integrated Services Router with Cisco IOS XE Software combines WAN, comprehensive security, wired and wireless access in a single, high-performance platform. The Cisco 1100 Series ISR is well suited for deployment in Small and Medium enterprise branch offices.
-
4.50 lbs
-
Connectivity Technology: WiredConnectivity Technology: Wireless
-
Router, (2) antennas, rubber feet, documentation
-
Color: GrayForm Factor: DesktopManufacturer Product Line: Cisco Integrated Services RouterModel: 1111Weight Taxonomy: 5.71lbs
-
Throughput: ISR 1100 can provide encrypted traffic performance greater than 350 Mbps
Maximum number of associated wireless clients: 200 per Wi-Fi radio; in total 400 clients per access point -
Flash Memory Installed Size: 4GBRAM (installed): 4GB
-
4GB fixed DRAM
4GB fixed Flash -
Modem Type: Wireless cellular modem
-
Networking Type: Router
-
OS Provided: Cisco IOS XE Universal
-
1.75"h x 12.7"w x 9.6"d
-
(8) GE LAN (4 PoE, 2 PoE+)
(1) GbE WAN
(1) GbE/SFP combo WAN
(1) integrated USB 3.0 console -
AC input voltage: Universal 100 to 240 VAC
Frequency: 50 to 60 Hz
Maximum output power: 66W (default)
Output voltages: 12 VDC
External output voltage: 48 VDC
Optional PoE and PoE+:
Single 150W power supply required for Cisco 1100-8P router -
Cellular Enhancement Protocol: DC-HSPA+Cellular Enhancement Protocol: FDD LTECellular Enhancement Protocol: HSPA+Cellular Enhancement Protocol: LTE AdvancedCellular Enhancement Protocol: TDD LTECellular Enhancement Protocol: TD-SCDMACellular Enhancement Protocol: UMTSNetworking Protocol: Gigabit EthernetNetworking Protocol: IEEE 802.11ac Wave 2Networking Protocol: IEEE 802.11iNetworking Protocol: IEEE 802.11rNetworking Protocol: IEEE 802.1agNetworking Protocol: IEEE 802.3afNetworking Protocol: IEEE 802.3ahNetworking Protocol: IEEE 802.3atNetworking Protocol: PoENetworking Protocol: PoE+Remote Management Protocol: CLIRemote Management Protocol: RMONRemote Management Protocol: SNMPRemote Management Protocol: SYSLOGRemote Management Protocol: TelnetRemote Management Protocol: TR-069Routing Protocol: BGPRouting Protocol: Bidirectional Forwarding Detection (BFD)Routing Protocol: DVMRPRouting Protocol: EIGRPRouting Protocol: GRERouting Protocol: HSRPRouting Protocol: IGMPv3Routing Protocol: IS-ISRouting Protocol: MPLSRouting Protocol: OSPFRouting Protocol: PIM-SMRouting Protocol: PIM-SSMRouting Protocol: Policy-based routing (PBR)Routing Protocol: RIP-1Routing Protocol: RIP-2Routing Protocol: RSVPRouting Protocol: Static IP routingRouting Protocol: VRRPTransport Protocol: DHCPTransport Protocol: DNSTransport Protocol: IPSecTransport Protocol: L2TPv3Transport Protocol: PPPoETransport Protocol: Static IP
-
Due to manufacturer restrictions, all sales on this item are final. Call the Cisco Technical Assistance Center (TAC) for defective product and technical issues at 1-800-553-6387
-
1 lbs
-
Compliant Standards: AS/NZS CISPR 22Compliant Standards: CAN/CSA C22.2 No. 60950-1 Second EditionCompliant Standards: CBCompliant Standards: CISPR 22Compliant Standards: CISPR 24Compliant Standards: CNS 13438Compliant Standards: EN 300 386Compliant Standards: EN 301 489-1Compliant Standards: EN 301 489-24Compliant Standards: EN 301 489-7Compliant Standards: EN 301 511Compliant Standards: EN 301 908-1Compliant Standards: EN 301 908-13Compliant Standards: EN 301 908-2Compliant Standards: EN 60950-1 Second EditionCompliant Standards: EN 61000-3-2Compliant Standards: EN 61000-3-3Compliant Standards: EN 61000-4-11Compliant Standards: EN 61000-4-2Compliant Standards: EN 61000-4-3Compliant Standards: EN 61000-4-4Compliant Standards: EN 61000-4-5Compliant Standards: EN 61000-4-6Compliant Standards: EN 61000-6-1Compliant Standards: EN55022Compliant Standards: EN55024Compliant Standards: FCC CFR47 Part 15Compliant Standards: FCC CFR47 Part 22Compliant Standards: FCC CFR47 Part 24Compliant Standards: ICES-003Compliant Standards: IEC 60950-1 Second EditionCompliant Standards: UL 60950-1 Second EditionCompliant Standards: VCCI V-3
-
