Rollover to Zoom
NOTE: Images may not be exact; please check specifications.
-
In Stock
- Ships in 1-2 Business Days
This product requires DNA licensing to be attached.

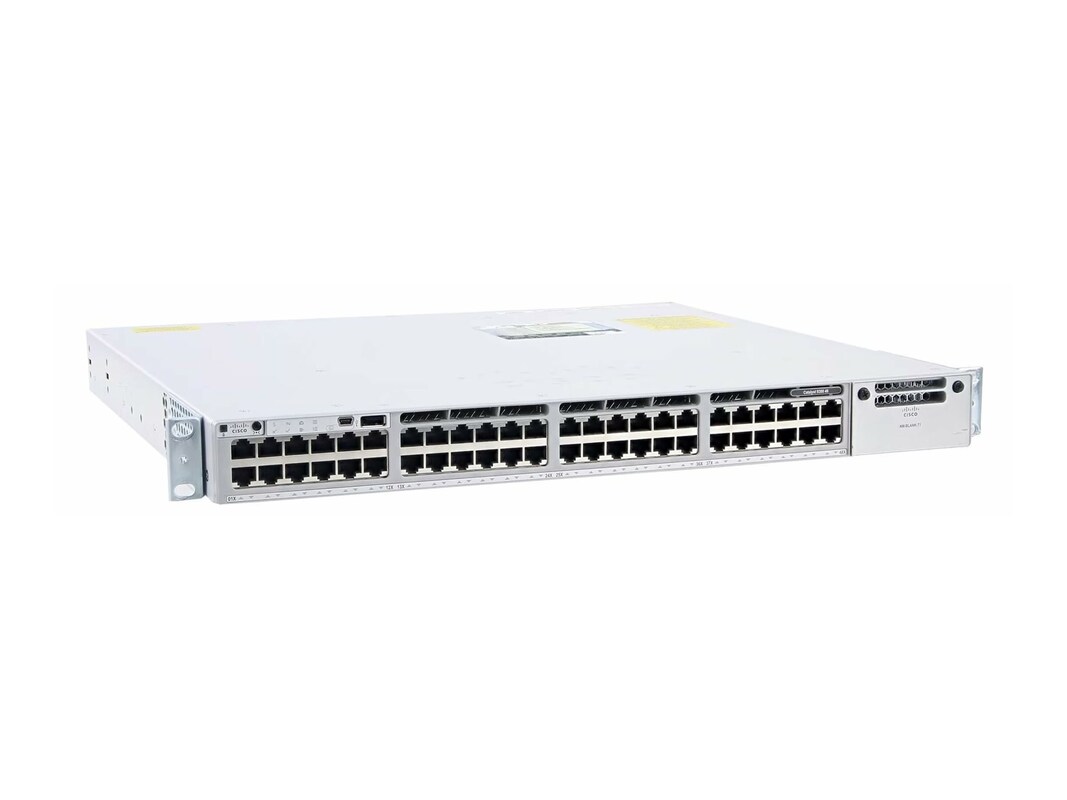

The Cisco Catalyst 9300 Series Switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry’s most widely deployed switching platform. The Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco’s lead enterprise architecture. At 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.
-
17.00 lbs
-
# Ports: 48
-
Switch, power supply, documentation
-
Chassis Form Factor: 1U RackmountColor: GrayForm Factor: Rack-mountableWarranty Period: Limited lifetimeWeight Taxonomy: 17.02lbs
-
Switching capacity: 128 Gbps
Stacking bandwidth: 480 Gbps
Total number of MAC addresses: 32,000
Total number of IPv4 routes (ARP plus learned routes): 32,000 (24,000 direct routes and 8000 indirect routes)
IPv4 routing entries: 32,000
IPv6 routing entries: 16,000
Multicast routing scale: 8000
QoS scale entries: 5120
ACL scale entries: 5120
FNF entries: 64,000 flow
VLAN IDs: 4000
Total Switched Virtual Interfaces (SVIs): 2000
Jumbo frames: 9198 bytes
Total routed ports per 9300 Series stack: 208
Wireless bandwidth per switch: Up to 96 Gbps
Forwarding Rate: 190.48 Mpps -
RAM (installed): 16GBRAM (installed): 8GBRAM Technology: FlashRAM Technology: RAM
-
8GB DRAM
16GB flash
Packet buffer per SKU: 16 MB -
Networking Type: Switch
-
OS Provided: Cisco IOS Universal
-
1.7"h x 17.5"w x 17.5"d
-
Expansion slots:
(1) Expansion slot
I/O:
(48) 1000Base-T RJ-45 UPoE
(1) USB 2.0
(2) Power in -
# Power Supplies Installed: 1# Power Supplies Supported: 2Power Provided: 1100Power Provided: 1100W
-
Input: 100 to 240 VAC, 50 to 60 Hz, 10-5A
Available PoE Power: 822W
Dual redundant internal power supplies supported. Switch ships with one power supply by default.
Default power supply: PWR-C1-1100WAC -
Networking Protocol: Gigabit EthernetNetworking Protocol: IEEE 802.1DNetworking Protocol: IEEE 802.1pNetworking Protocol: IEEE 802.1QNetworking Protocol: IEEE 802.1sNetworking Protocol: IEEE 802.1WNetworking Protocol: IEEE 802.1xNetworking Protocol: IEEE 802.3Networking Protocol: IEEE 802.3abNetworking Protocol: IEEE 802.3ad (LACP)Networking Protocol: IEEE 802.3afNetworking Protocol: IEEE 802.3atNetworking Protocol: IEEE 802.3uNetworking Protocol: IEEE 802.3xNetworking Protocol: UPoERemote Management Protocol: CLIRemote Management Protocol: NETCONFRemote Management Protocol: RESTCONFRemote Management Protocol: RMON 1Remote Management Protocol: RMON 2Remote Management Protocol: SNMPRemote Management Protocol: SNMP 1Remote Management Protocol: SNMP 2cRemote Management Protocol: SNMP 3Routing Protocol: BGPRouting Protocol: EIGRPRouting Protocol: HSRPRouting Protocol: IGMPRouting Protocol: IS-ISRouting Protocol: MSDPRouting Protocol: OSPFRouting Protocol: OSPFv3Routing Protocol: PIM-SMRouting Protocol: PIM-SSMRouting Protocol: Policy-based routing (PBR)Routing Protocol: RIP-1Routing Protocol: RIP-2Routing Protocol: RIPngRouting Protocol: VRRP
-
Due to manufacturer restrictions, all sales on this item are final.
-
28.75 lbs
-
Compliant Standards: AS/NZS 3548 Class ACompliant Standards: BSMI Class ACompliant Standards: CAN/CSA-C22.2 No. 60950-1Compliant Standards: CCCCompliant Standards: CISPR 22 Class ACompliant Standards: CISPR 24Compliant Standards: EN 300 386Compliant Standards: EN 55022 Class ACompliant Standards: EN 60950-1Compliant Standards: EN 61000-3-2Compliant Standards: EN 61000-3-3Compliant Standards: EN 61000-4-2Compliant Standards: EN 61000-4-3Compliant Standards: EN 61000-4-4Compliant Standards: EN 61000-4-5Compliant Standards: EN 61000-4-6Compliant Standards: EN 61000-6-1Compliant Standards: EN50082-1Compliant Standards: EN55024Compliant Standards: FCC CFR47 Part 15 ACompliant Standards: ICES-003 Class ACompliant Standards: IEC 60950-1Compliant Standards: RoHS 5/6Compliant Standards: TVCN 7317Compliant Standards: UL 60950-1Compliant Standards: VCCI Class ACompliant Standards: VCCI V-3/2009 Class A
-
OS Required: Cisco IOS Universal
-
43222612
-
Limited Lifetime
-
Limited Lifetime
-
Limited lifetime warranty includes replacement, next business day response time, and 90-day consulting and technical support.
