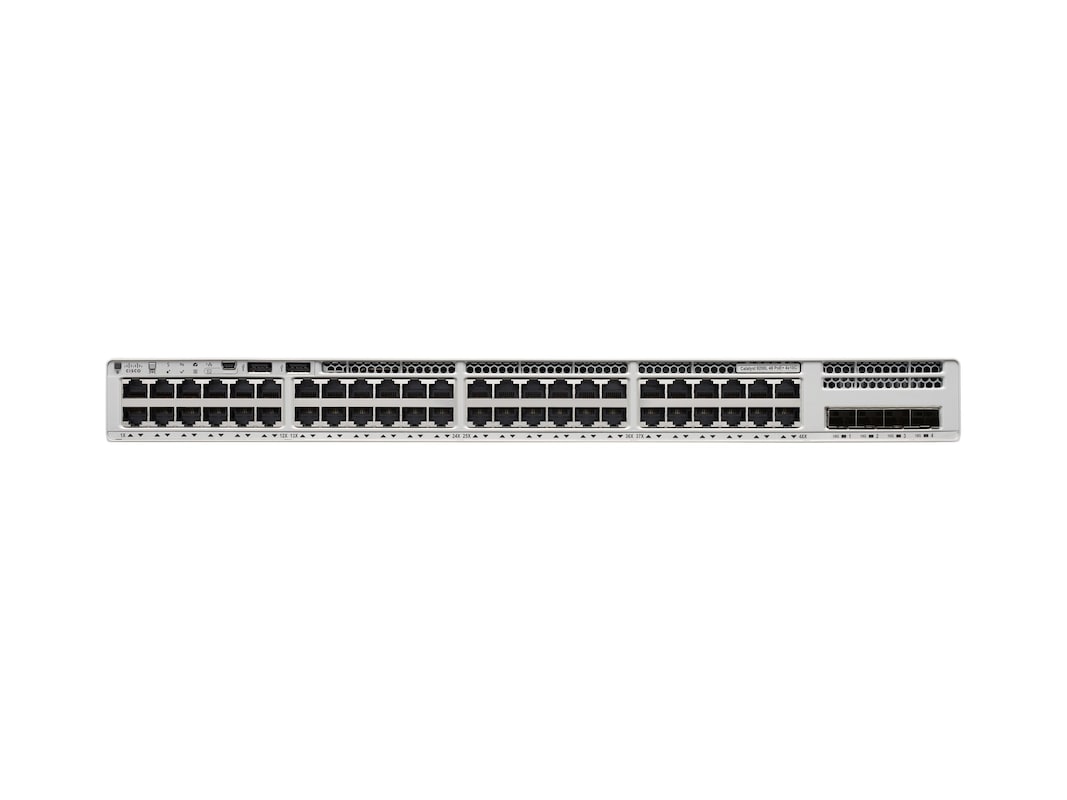

The Cisco Catalyst 9200 Series switch can help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise. This switch provides security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. The C9200L-48P-4X-E model has 48 ports 1G PoE+ with 4x 10G SFP+ fixed uplinks. Licensing is required.
-
9.60 lbs
-
Switch, documentation
-
Color: GrayForm Factor: Rack-mountableWarranty Period: Limited lifetimeWeight Taxonomy: 12.13lbs
-
Bandwidth:
Switching capacity: 176 Gbps
Forwarding rate: 261.9 Mpps
Performance:
Virtual Networks: 1
Stacking bandwidth: 80 Gbps
Total number of MAC addresses: 16,000
Total number of IPv4 routes (ARP plus learned routes): 11,000 (8,000 direct routes and 3,000 indirect routes)
IPv4 routing entries: 3,000
IPv6 routing entries: 1,500
Multicast routing scale: 1,000
QoS scale entries: 1,000
ACL scale entries: 1,500
Packet buffer per SKU: 6 MB buffers for 24- or 48-port Gigabit Ethernet models
Flexible NetFlow (FNF) entries: 16,000 flows on 24- and 48-port Gigabit Ethernet models
VLAN IDs: 1024
Total Switched Virtual Interfaces (SVIs): 512
Jumbo frames: 9198 bytes -
RAM (installed): 2GB
-
DRAM: 2 GB
Flash: 4 GB -
Networking Type: Switch
-
1.7"h x 17.5"w x 11.3"d
-
(48) 1000Base-T RJ-45 PoE+ (30 W)
(4) 10GBase-X SFP uplink
(1) network stack device
(1) management (LAN) RJ-45
(1) console RJ-45 -
# Power Supplies Supported: 2
-
Default primary AC power supply: PWR-C5-1KWAC
Voltage Required: AC 120/230 V (50-60 Hz) -
Networking Protocol: 10 Gigabit EthernetNetworking Protocol: IEEE 802.1DNetworking Protocol: IEEE 802.1pNetworking Protocol: IEEE 802.1QNetworking Protocol: IEEE 802.1sNetworking Protocol: IEEE 802.1WNetworking Protocol: IEEE 802.1xNetworking Protocol: IEEE 802.3Networking Protocol: IEEE 802.3abNetworking Protocol: IEEE 802.3ad (LACP)Networking Protocol: IEEE 802.3afNetworking Protocol: IEEE 802.3atNetworking Protocol: IEEE 802.3bzNetworking Protocol: IEEE 802.3uNetworking Protocol: IEEE 802.3xNetworking Protocol: IEEE 802.3zNetworking Protocol: PoE+Remote Management Protocol: CLIRemote Management Protocol: NETCONFRemote Management Protocol: RESTCONFRemote Management Protocol: RMON 1Remote Management Protocol: RMON 2Remote Management Protocol: SNMP 1Remote Management Protocol: SNMP 2cRemote Management Protocol: SNMP 3Routing Protocol: MSTPRouting Protocol: OSPFRouting Protocol: Policy-based routing (PBR)Routing Protocol: RIPRouting Protocol: VRRP
-
Due to manufacturer restrictions, all sales on this item are final.
-
17 lbs
-
Compliant Standards: AES-128Compliant Standards: AS/NZS 60950-1Compliant Standards: CAN/CSA-C22.2 No. 60950-1Compliant Standards: CISPR 22 Class ACompliant Standards: CISPR 24Compliant Standards: CISPR 32 Class ACompliant Standards: CNS 13438Compliant Standards: EN 300 386Compliant Standards: EN 55022 Class ACompliant Standards: EN 55032 Class ACompliant Standards: EN 60950-1Compliant Standards: EN 61000-3-2Compliant Standards: EN 61000-3-3Compliant Standards: EN55024Compliant Standards: FCC CFR47 Part 15Compliant Standards: ICES-003 Class ACompliant Standards: IEC 60950-1Compliant Standards: KN32Compliant Standards: KN35Compliant Standards: Plug and PlayCompliant Standards: RoHS 5/6Compliant Standards: TCVN 7189 Class ACompliant Standards: TCVN 7317Compliant Standards: UL 60950-1Compliant Standards: V-3 Class A
-
43222612
-
Limited Lifetime
-
Limited Lifetime
