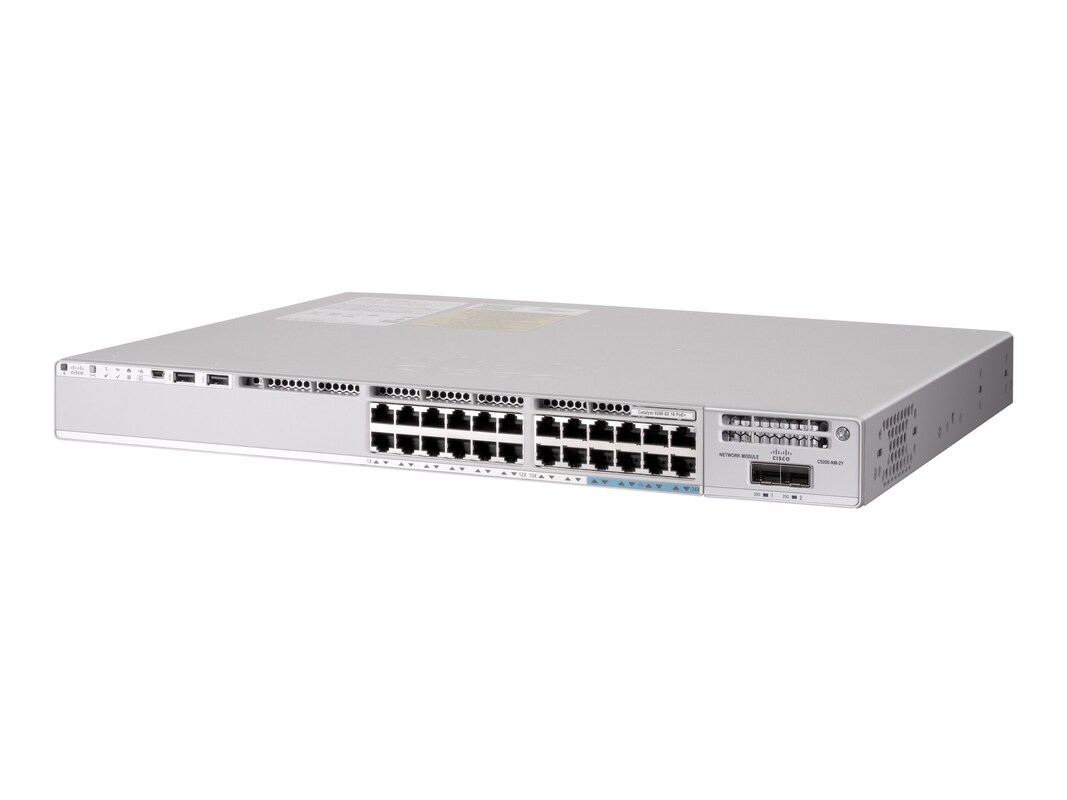

The Catalyst 9200 series delivers the superior features. It's highly secure and always on, and it provides IT simplicity, resulting in a great experience every time.
-
11.33 lbs
-
Switch, documentation
-
Color: GrayForm Factor: Rack-mountableWarranty Period: Limited lifetimeWeight Taxonomy: 11.99lbs
-
Switching capacity: 352 Gbps
Switch capacity with Stacking: 532 Gbps
Forwarding rate: 261.90 Mpps
Forwarding rate with Stacking: 395 Mpps
Virtual Networks: 4
Stacking bandwidth: 160 Gbps
Total number of MAC addresses: 32,000
Total number of IPv4 routes (ARP plus learned routes): 14,000 (10,000 direct routes and 4,000 indirect routes)
IPv4 routing entries: 4,000
IPv6 routing entries: 2,000
Multicast routing scale: 1,000
QoS scale entries: 1,000
ACL scale entries: 1,600
Packet buffer per SKU: 6 MB buffers for 24- or 48-port Gigabit Ethernet models
Flexible NetFlow (FNF) entries: 16,000 flows on 24- and 48-port Gigabit Ethernet models
VLAN IDs: 4096
Total Switched Virtual Interfaces (SVIs): 1000
Jumbo frames: 9198 bytes
Wireless bandwidth per switch: Up to 48 Gbps on 24-port and 48-port Gigabit Ethernet model
IP SGT binding scale: 8K
Number of IPv4 bindings: 8K
Number of SGT/DGT policies: 2K
Number of SXP Sessions: 200 -
RAM (installed): 4GB
-
DRAM: 4 GB
Flash: 4 GB -
Networking Type: Switch
-
1.7"h x 17.5"w x 13.8"d
-
(16) GbE PoE+ RJ-45
(8) mGig PoE+ (up to 10G) -
# Power Supplies Supported: 2
-
Default primary power supply: PWR-C6-600WAC
Available PoE power with single primary power supply only*: 370W
Optional secondary power supply: PWR-C6-600WAC
Available PoE power with additional secondary power supply*: 740W
*Limited by port number and port rating (for example, 24 PoE+ 30W ports = 720W) -
Networking Protocol: IEEE 802.1ab (LLDP)Networking Protocol: IEEE 802.1DNetworking Protocol: IEEE 802.1pNetworking Protocol: IEEE 802.1QNetworking Protocol: IEEE 802.1sNetworking Protocol: IEEE 802.1WNetworking Protocol: IEEE 802.1xNetworking Protocol: IEEE 802.3Networking Protocol: IEEE 802.3abNetworking Protocol: IEEE 802.3ad (LACP)Networking Protocol: IEEE 802.3afNetworking Protocol: IEEE 802.3atNetworking Protocol: IEEE 802.3bzNetworking Protocol: IEEE 802.3uNetworking Protocol: IEEE 802.3xNetworking Protocol: IEEE 802.3zNetworking Protocol: PoE+Remote Management Protocol: CLIRemote Management Protocol: IPv4Remote Management Protocol: IPv6Remote Management Protocol: NETCONFRemote Management Protocol: RESTCONFRemote Management Protocol: RMON 1Remote Management Protocol: RMON 2Remote Management Protocol: SNMP 1Remote Management Protocol: SNMP 2cRemote Management Protocol: SNMP 3Remote Management Protocol: YANGRouting Protocol: EIGRPRouting Protocol: EIGRP for IPv6Routing Protocol: HSRPRouting Protocol: IS-ISRouting Protocol: MSDPRouting Protocol: MSTPRouting Protocol: OSPFRouting Protocol: OSPFv3Routing Protocol: PIM-SMRouting Protocol: PIM-SSMRouting Protocol: Policy-based routing (PBR)Routing Protocol: RIPRouting Protocol: RIP-1Routing Protocol: RIP-2Routing Protocol: RIPngRouting Protocol: VRRP
-
Due to manufacturer restrictions, all sales on this item are final.
-
1 lbs
-
Compliant Standards: AS/NZS 3548 Class ACompliant Standards: AS/NZS 60950-1Compliant Standards: BSMI Class ACompliant Standards: CAN/CSA-C22.2 No. 60950-1Compliant Standards: CCCCompliant Standards: CISPR 22 Class ACompliant Standards: CISPR 24Compliant Standards: CISPR 32 Class ACompliant Standards: CISPR 35Compliant Standards: CNS 13438Compliant Standards: EN 300 386Compliant Standards: EN 55022 Class ACompliant Standards: EN 55032 Class ACompliant Standards: EN 60950-1Compliant Standards: EN 61000-3-2Compliant Standards: EN 61000-3-3Compliant Standards: EN 61000-6-1Compliant Standards: EN55024Compliant Standards: FCC CFR47 Part 15 B Class ACompliant Standards: ICES-003 Class ACompliant Standards: IEC 60950-1Compliant Standards: KN32Compliant Standards: KN35Compliant Standards: RoHS 5/6Compliant Standards: TCVN 7189 Class ACompliant Standards: TCVN 7317Compliant Standards: UL 60950-1Compliant Standards: V-3 Class ACompliant Standards: VCCI Class A
-
43222612
-
Limited Lifetime
-
