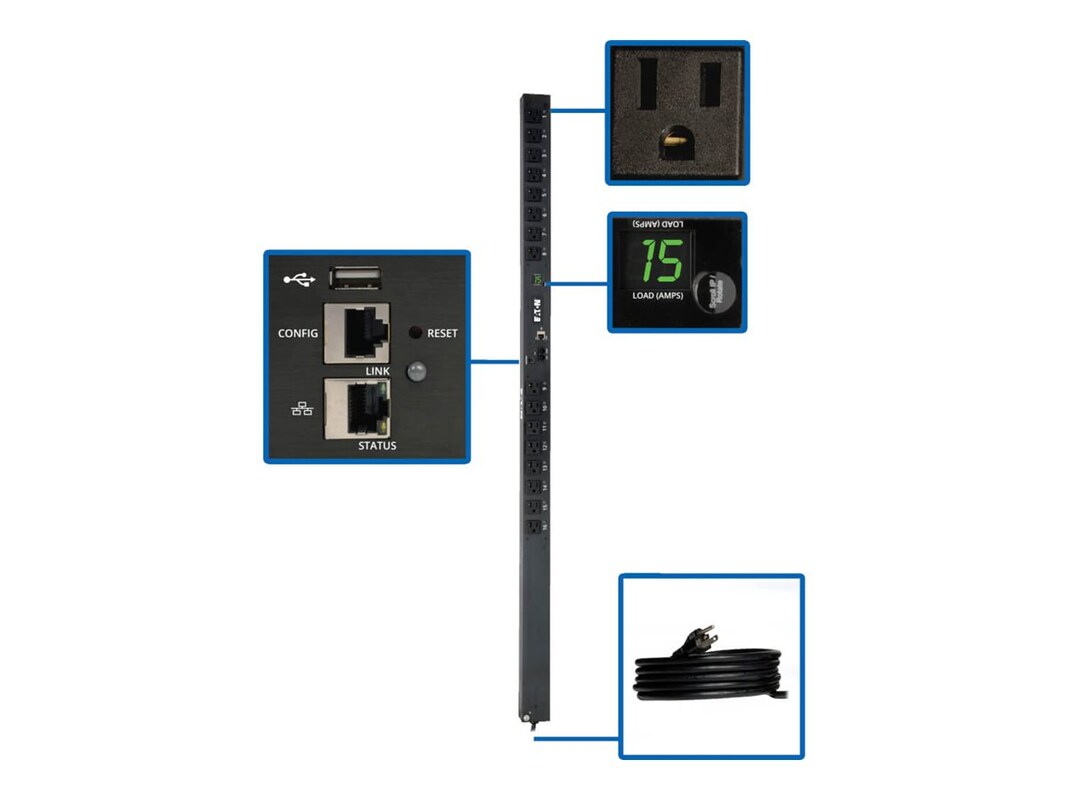

The 1.4kW Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for IT and industrial applications, the vertical PDU features 16 switched NEMA 5-15R outlets with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA 5-15P plug connects the PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A digital ammeter allows you to monitor the total load in real time to ensure it remains well below maximum capacity with no danger of overload. The vertical PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included bracket kit to install the unit with outlets facing the rear for better airflow or equipment access.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A digital ammeter allows you to monitor the total load in real time to ensure it remains well below maximum capacity with no danger of overload. The vertical PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included bracket kit to install the unit with outlets facing the rear for better airflow or equipment access.
-
7.00 lbs
-
# Ports: 16Connector: Power NEMA 5-15P
-
PDU, built-in LX platform interface, configuration cable, (16) cable ties, (2) cord retention brackets, rack mounting hardware, mounting bracket accessory, documentation
-
Attributes: SwitchedColor: BlackForm Factor: 0U RackmountForm Factor: Rack-mountableWarranty Period: 2 yearsWeight Taxonomy: 7.01lbs
-
Distributes Network-Grade AC Power:
1.4kW 120V switched PDU with single-phase input
Recommended for network applications requiring individual outlet control, load shedding and remote monitoring of critical network components
NEMA 5-15P plug with 10 ft. cord connects to compatible AC power source
Firmware upgrades support future product enhancements
16 Switched NEMA 5-15R Outlets Distribute AC Power:
Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices
Cord retention brackets prevent cables from becoming accidentally disconnected
Digital Ammeter:
Reports total PDU load in real time
Supports IP-address self-ID
Rotates 180° for easy reading at either angle
Built-In LX Platform Interface:
Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
No Java required
Broad Communications Compatibility:
Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
Supports automatic and manual assignment of IP address
Easy 0U Installation in EIA-Standard 19 in. Racks:
Vertical PDU mounts using included toolless buttons or rack-mounting brackets
Included PDUMVROTATEBRKT bracket kit allows mounting with rear-facing outlets
TAA-Compliant:
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases -
49"H x 2.19"W x 2.65"D
-
Power Provided: 1.4kWPower Provided: 1.52kWVoltage Provided: 120VVoltage Provided: AC 100/120/127V
-
PDU Type: Switched
Output Capacity Details: 1.52kW (127V), 1.44kW (120V), 1.2kW (100V) / 15A total capacity (Agency de-rated to 12A); 12A max per outlet
Frequency Compatibility: 50 / 60 Hz
Output Receptacles: (16) 5-15R
Output Nominal Voltage: 100; 120; 127
Overload Protection: n/a
Customized Load Management Receptacles: 16 individually switched output receptacles
PDU Input Voltage: 100; 120; 127
Recommended Electrical Service: 15A 120V
Maximum Input Amps: 15
Maximum Input Amps Details: Agency de-rated to 12A continuous
PDU Plug Type: NEMA 5-15P
Input Cord Length (ft.): 10
Input Phase: Single-Phase
SNMP Compatibility Includes LX Platform network interface
Front Panel LCD Display: Digital display reports total PDU output current in amps
Front Panel LEDs: 16 LEDs display power on-off status for each output receptacle
Switches: Pushbutton control supports 180 degree Display Rotation and Scroll IP address functions
Form Factors Supported: 0U vertical rackmount. Includes mounting brackets. Supports toolless mounting in button-mount compatible racks
PDU Form Factor: 0U; Vertical
Storage Temperature Range: 5 to 140F (-15 to 60C)
Relative Humidity: 5-95% non-condensing
Operating Elevation: (ft.) 0-10,000
Operating Elevation: (m) 0-3000 -
Remote Management Protocol: HTTPRemote Management Protocol: HTTPSRemote Management Protocol: SMTPRemote Management Protocol: SNMPRemote Management Protocol: SNMP 1Remote Management Protocol: SNMP 2Remote Management Protocol: SNMP 3Remote Management Protocol: SSHRemote Management Protocol: Telnet
-
This product is subject to our return policy. Please see our complete return policy for details.
-
11 lbs
-
Compliant Standards: CAN/CSA C22.2 No. 60950-1-07Compliant Standards: FCC Part 15 ACompliant Standards: NOMCompliant Standards: RoHSCompliant Standards: TAACompliant Standards: UL 60950-1:2007Compliant Standards: Yes
-
