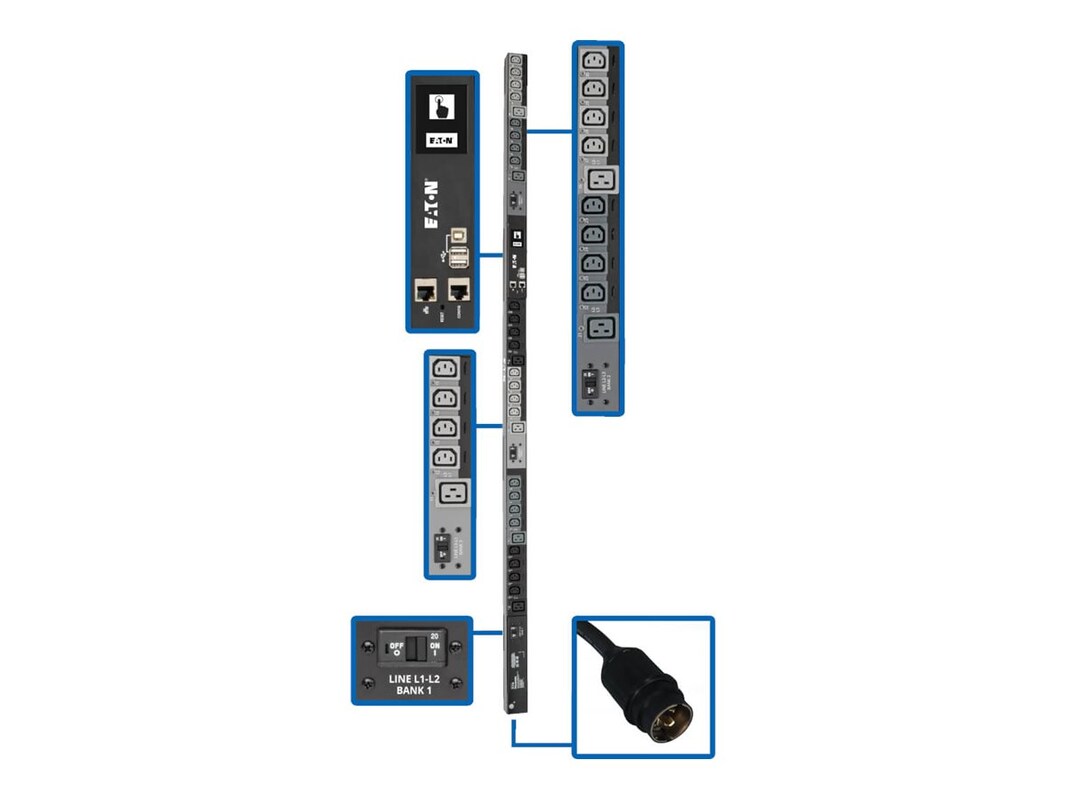

Tripp Lite Switched 0U PDU 3PH 10kW 200 208 240V 30A, L21-30P Input, (24) C13 (6) C19 Outlets, LX, TAA

16.55 lbs

Distributes, Monitors and Manages Network-Grade AC Power:
10kW 200/208/240V switched PDU with 3-phase input
Recommended for network applications requiring individual outlet control, load shedding and remote monitoring of critical network components
NEMA L21-30P plug with 6 ft. cord connects to compatible AC power source
Firmware upgrades support future product enhancements

30 Switched Outlets Distribute AC Power:
24 C13 and 6 C19 outlets split into 3 separately breakered load banks
Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices
Plug-lock insert sleeves prevent cables from becoming accidentally disconnected

Color Touchscreen LCD:
Reports network data, including IP address, input current level per phase, and output current per load bank and per outlet with ±1% billing-grade accuracy
Generates unique QR code for read-only access to PowerAlert® Device Manager via mobile device
Full access available by logging into PowerAlert Device Manager via browser as user with read/write credentials

Built-In LX Platform Interface:
Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
No Java required

Broad Communications Compatibility:
Supports HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
Supports automatic and manual assignment of IP address

Easy 0U Installation in EIA-Standard 19 in. Racks:
Mounts vertically using included toolless buttons or rack-mounting brackets
Included PDUMVROTATEBRKT allows mounting with rear-facing outlets

TAA-Compliant:
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

PDU with buit-in LX platform interface, configuration cable, (30) plug-lock insert sleeves, rack mounting hardware, PDUMVROTATEBRKT mounting bracket accessory, documentation

70"H x 2.17"W x 2.86"D

PDU Type: Switched

Output Capacity Details: 10kW (240V), 9.6kW (230V), 9.1kW (220V), 8.6kW (208V), 8.3kW (200V) total capacity; 13.9A max per breakered outlet bank; 12A max per C13 outlet
Frequency Compatibility: 50 / 60 Hz
Output Receptacles: (24) C13; (6) C19
Output Nominal Voltage: 200; 208; 240
Overload Protection: 3 20A circuit breakers, 1 per outlet bank
Customized Load Management Receptacles: Each outlet is individually controllable

PDU Input Voltage: 200; 208; 240
Recommended Electrical Service: 30A 208/240V with L21-30R outlet
Maximum Input Amps: 24
PDU Plug Type: NEMA L21-30P
Input Cord Length (ft.): 6
Input Phase: 3-Phase

Reported Load Segments: Reports input current per phase (L1, L2, L3), plus output current for each output load bank (20A balanced max per banks B1-B3) and individual output receptacle (1-30); Outlets are color-coded and labelled for phase and load bank identification; L1-L2 feeds light-gray outlets (B1); L2-L3 feeds black outlets (B2); L3-L1 feeds dark-gray outlets (B3)

Front Panel LCD Display: Touchscreen LCD reports NETWORK DATA (IP address, Subnet Mask, Gateway, MAC Address, Device Name, Model, Serial Number), INPUT PHASE DATA (Amperage, Wattage, Voltage per phase, plus Unbalance percentage), LOAD BANK DATA (Amperage, Wattage, Voltage per load bank, plus total PDU output in watts), OUTLET DATA (Amperage, Wattage per outlet), CONFIGURATION DATA (Listing of current configuration settings), ENVIRONMENTAL DATA (Reports data and status of E2 sensor modules; Sensor options are available for temperature and humidity, plus input and output dry contacts), MOBILE ACCESS (Generates a unique QR code to view reported PDU details on a mobile device)

Front Panel LEDs: One LED for each output receptacle offers power availability information: GREEN (Power ON, load bank capacity <80%), YELLOW (Power ON, load bank capacity >80%), RED (Power OFF/undervoltage), RED FLASHING (Power OFF/breaker trip), LED OFF (Power OFF)

Material of Construction: Metal
Form Factors Supported: Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
PDU Form Factor: 0U; Vertical

Operating Temperature Range: 32 to 122F (0 to 50C)
Storage Temperature Range: 5 to 140F (-15 to 60C)
Relative Humidity: 5 to 95% non-condensing
Operating Elevation (ft.): 0-10,000
Operating Elevation (m): 0 - 3000 m

SNMP Compatibility: Built-in LX Platform interface provides remote monitoring via secure web browser, SNMP, telnet or SSH
