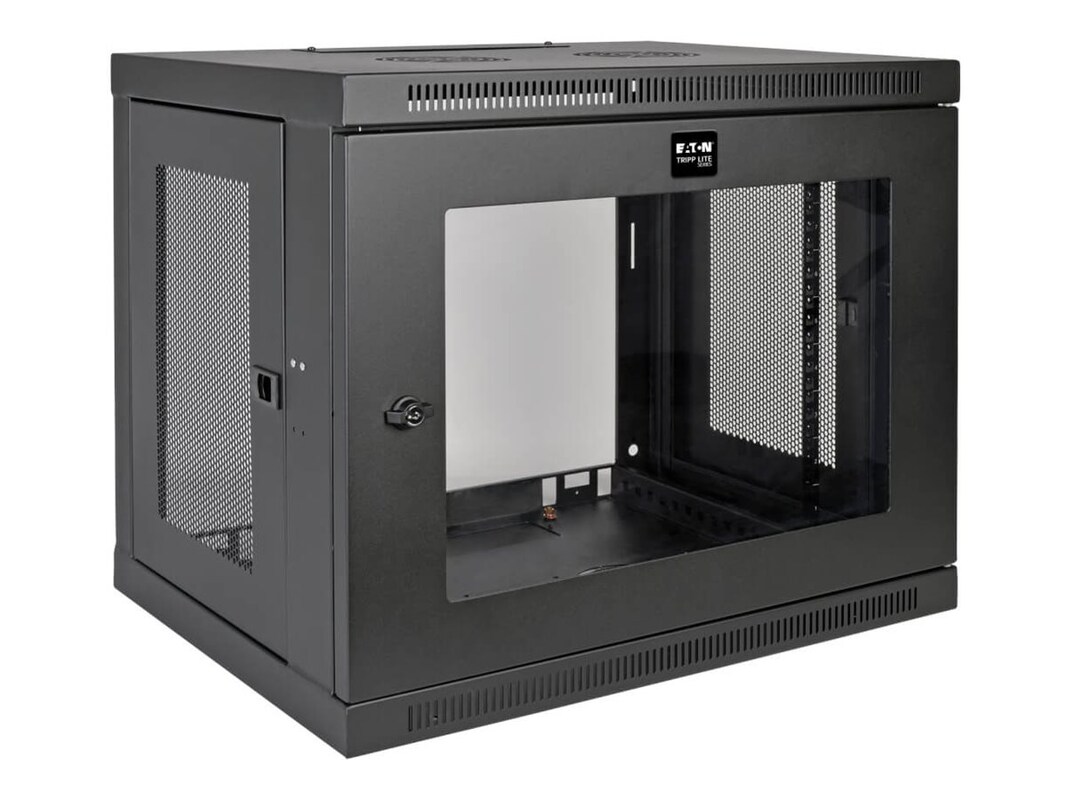

The SRW9UG SmartRack 9U Wall-Mount Standard-Depth Rack Enclosure Cabinet is ideal for storing standard 19-inch rack equipment in network closets, point-of-sale stations, offices, classrooms and other areas with limited floor space where you need equipment to be secure and out of the way. The front door features a plexiglass window that lets you monitor equipment readouts without having to open the enclosure. Constructed from heavy-duty steel in a durable black powder-coat finish, the SRW9UG supports a maximum load capacity of 200 pounds.
To ensure your valuable equipment stays safe and secure, the reversible front door locks with the included keys. The lockable, removable side panels are ventilated, which allows air to flow freely through the cabinet to keep equipment cool. Vented top and bottom panels help remove warm air from the enclosure and draw in cool air by convection. They also support the installation of Tripp Lite SRFANWM fans (available separately). The front door can open left or right by rotating the SRW9UG 180-degrees before mounting. Convenient top and bottom ports allow easy cable routing through the enclosure.
The SRW9UG comes fully assembled and ready to mount using the included hardware. Installing equipment within the enclosure is easy enough with its square and threaded mounting holes and numbered rack spaces. The front vertical mounting rails adjust in 1/4-inch increments to accommodate equipment from 3 to 16.5 inches deep.
To ensure your valuable equipment stays safe and secure, the reversible front door locks with the included keys. The lockable, removable side panels are ventilated, which allows air to flow freely through the cabinet to keep equipment cool. Vented top and bottom panels help remove warm air from the enclosure and draw in cool air by convection. They also support the installation of Tripp Lite SRFANWM fans (available separately). The front door can open left or right by rotating the SRW9UG 180-degrees before mounting. Convenient top and bottom ports allow easy cable routing through the enclosure.
The SRW9UG comes fully assembled and ready to mount using the included hardware. Installing equipment within the enclosure is easy enough with its square and threaded mounting holes and numbered rack spaces. The front vertical mounting rails adjust in 1/4-inch increments to accommodate equipment from 3 to 16.5 inches deep.
-
34.60 lbs
-
Features
Perfect for network closets, point-of-sale stations, offices, classrooms and other areas with limited floor space where you need equipment to be secure and out of the way.
Houses any standard 19" rack equipment in 9U of space.
Supports maximum load capacity of 200lbs.
Plexiglass front door lets you monitor equipment readouts at a glance.
Enclosure can be rotated 180-degrees so lockable front door can open left or right.
Lockable, removable side panels are ventilated to allow generous airflow that keeps equipment cool.
Vented top and bottom panels help remove warm air and draw in cool air.
Convenient ports with removable covers allow cable routing through top and bottom.
Ships fully assembled for quick installation.
Mounting plate's holes spaced 16" apart to accommodate standard wall stud placement.
Front mounting rails adjust in 1/4" increments from 3" to 16.5" deep.
Rails adjust easily -- unscrew them, slide them to desired depth and screw them back in.
Rails support square-hole or threaded-hole mounting.
Rack spaces numbered for easy reference.
Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance.
-
Cabinet, mounting hardware, removable mounting plate, (2) keys, documentation
-
Color: BlackProduct Type: Rack (wall mount)Warranty Period: 5 yearsWeight Taxonomy: 34.61lbs
-
19.75"h x 23.6"w x 17.7"d
-
This product is subject to our return policy. Please see our complete return policy for details.
-
40 lbs
-
Compliant Standards: EIA-310-ECompliant Standards: NOMCompliant Standards: PCI DSSCompliant Standards: RoHS
-
24102001
-
5 Years
-
