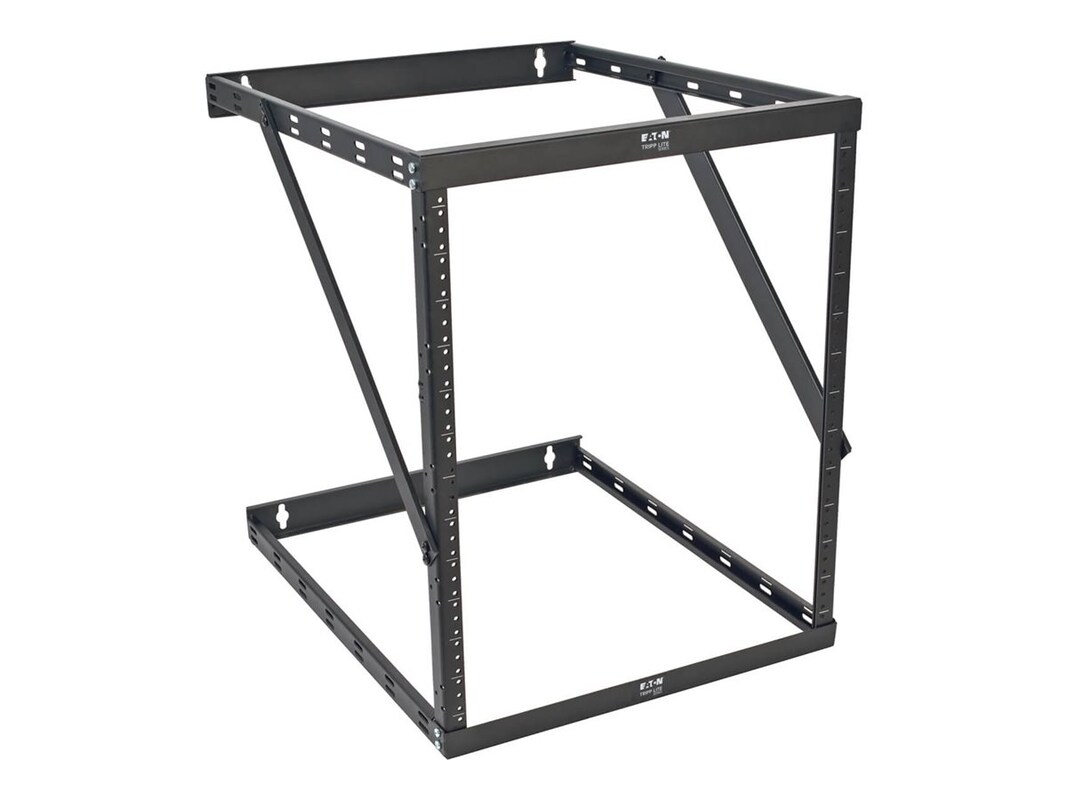

The SRWO8U22DP SmartRack 8U/12U/22U Expandable Low-Profile UPS-Depth Wall-Mount 2-Post Open-Frame Rack is ideal for storing UPS systems, battery packs, power cords, network switches, patch panels and related cabling in secure IT areas with limited floor space. Mounted to the wall or resting on the floor, this rack offers fast, easy access to components and cabling. It's compatible with EIA-standard 19-inch rack equipment that supports two-post mounting and a maximum mounting depth of 23.5 inches.
Constructed from heavy-duty steel in a durable black powder-coated finish, the open-frame rack has a maximum load capacity of 150 pounds. The expandable design allows you to assemble the rack in an 8U, 12U or 22U configuration to meet your current needs, while leaving rack space in reserve for future expansion. It saves precious space and allows IT managers easy access for organizing, installing and servicing equipment and cabling.
The rack is easy to assemble using the included hardware. The vertical mounting rails have threaded 12-24 holes for securing equipment to the steel frame.
Constructed from heavy-duty steel in a durable black powder-coated finish, the open-frame rack has a maximum load capacity of 150 pounds. The expandable design allows you to assemble the rack in an 8U, 12U or 22U configuration to meet your current needs, while leaving rack space in reserve for future expansion. It saves precious space and allows IT managers easy access for organizing, installing and servicing equipment and cabling.
The rack is easy to assemble using the included hardware. The vertical mounting rails have threaded 12-24 holes for securing equipment to the steel frame.
-
16.87 lbs
-
Features
Perfect for installing UPS systems, battery packs, network switches and patch panels in secure IT areas with limited floor space
Houses EIA-standard 19 in. rack equipment up to 23.5 in. deep
Maximum load capacity of 150 lb.
Assembles in 8U, 12U or 22U to meet current needs
Expands to add equipment later without buying a bigger rack
Allows easy access for organizing, installing and servicing equipment and cabling
Made from heavy-duty steel in a durable black powder-coated finish
Easy to assemble with included hardware
Vertical mounting rails with threaded 12-24 holes
Wall-mounting holes spaced 16 in. apart to accommodate standard wall stud placement
Dimensions & weight
Unit Dimensions (hwd/in.): 17.8 (8U) , 24.8 (12U), 42.3 (22U) x 20.11 x 24.00
Unit Weight Details: Weight varies depending on configuration 8U = 13.03lbs, 12U = 14.04lbs, 22U = 16.87lbs
-
Rack w/ hardware, documentation
-
Color: BlackProduct Type: RackWarranty Period: 5 years
-
42.3"h x 20.1"w x 24"d
-
This product is subject to our return policy. Please see our complete return policy for details.
-
21 lbs
-
Compliant Standards: EIA-310-DCompliant Standards: IEC 60297-3-100Compliant Standards: NOMCompliant Standards: RoHS
-
24102001
-
5 Years
-
5 Years
