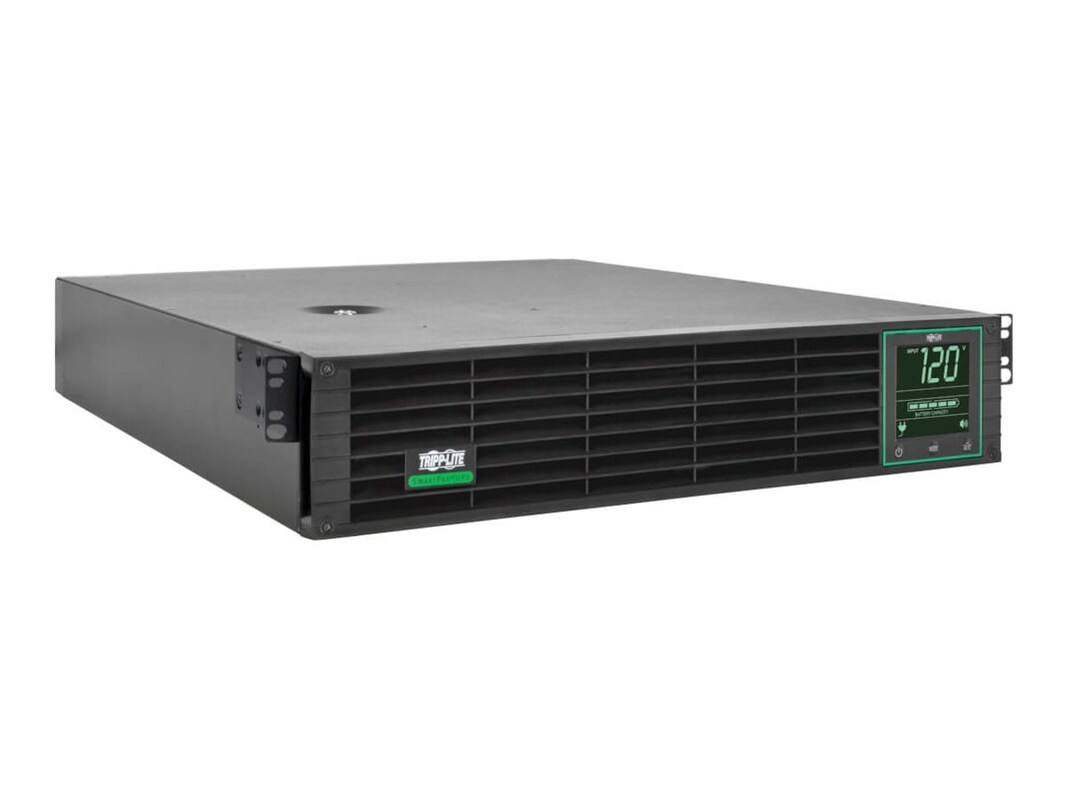

Tripp Lite SmartPro UPS 1.5KVA 120V Line Interactive Sine Wave Lithium, 2U RM, LCD (Smart1500RM2UL)

41.78 lbs

Superior LiFePO4 Battery Backup Compared to Lead Acid Battery:
With more than double the service life, three times more charge/discharge cycles and 60% the weight of comparable lead-acid batteries, the LiFePO4 battery features 120 volt battery backup and recharges to 100% capacity in less than two hours. The LiFePO4 battery is field-replaceable and hot-swappable.

Automatic Voltage Regulation (AVR) Conserves Battery Power:
AVR maintains 120V nominal output over input range of 83V–145V without using battery power.

EMI/RFI Line Noise Filtering Keeps Equipment Performing in Top Form:
Noise filtering removes electromagnetic and radio frequency interference that can disrupt equipment performance.

Multi-Function LCD and Audible Alarms Keep You Informed:
The front-panel LCD information and configuration screen displays detailed UPS and site power status and operating data, as well as input and output voltage, operating mode, alarm function and additional options. An alarm sounds to warn you of power failure, low battery, overload, UPS fault and remote shutdown conditions. The LCD screen rotates for easy viewing in rack-mount or tower configurations.

Optional Network Management Cards:
The SMART1500RM2UL is compatible with Tripp Lite UPS management cards, such as WEBCARDLX, for detailed monitoring of UPS and site power conditions.
?
Communications Ports:
USB and DB9 ports enable unattended shutdown when used with Tripp Lite PowerAlert software (available free at www.tripplite.com/poweralert). EPO port supports emergency shutdown in large facilities.

Versatile Installation Options:
The SMART1500RM2UL includes hardware for 4-post mounting in 2U of EIA-standard 19-inch rack. This UPS mounts on a wall, 2-post rack or in an upright tower position.

ENERGY STAR Certified:
Operating with a high 97% line-mode efficiency, the ENERGY STAR-certified 1.5kVA UPS system can save BTU heat output and energy costs by meeting strict EPA guidelines.

Ultimate Lifetime Insurance and 5-Year Warranty:
This UPS system is backed by Tripp Lite’s $250,000 Ultimate Lifetime Insurance, which covers any connected components (U.S., Canada and Puerto Rico only). It also has a 5-year limited warranty.

UPS, USB cable, DB9 cable, EPO cable, rack mounting hardware, documentation

3.43"H x 17.43"W x 19.46"D

Output Volt Amp Capacity (VA): 1500
Output kVA Capacity (kVA): 1.5
Output Watt Capacity (Watts): 1440
Output kW Capacity (kW): 1.44
Power Factor: 0.96
Nominal Output Voltage(s) Supported: 110V; 115V; 120V
Nominal Voltage Details: 120v nominal output in battery mode
Frequency Compatibility: 60 Hz
Output Voltage Regulation (Line Mode): -14%, +6%
Output Voltage Regulation (Battery Mode): +/- 5%
Output Receptacles: (4) 5-15R; (4) 5-15/20R
Load Management Receptacles: Two switchable single-outlet load banks
Output AC Waveform (AC Mode): Pure Sine wave
Output AC Waveform (Battery Mode): Pure Sine wave

Rated input current (Maximum Load): 12A (120V)
Nominal Input Voltage(s) Supported: 120V AC
UPS Input Connection Type: 5-15P
UPS Input Cord Length (ft.): 10
Recommended Electrical Service: 15A 120V
Input Phase: Single-Phase

Full Load Runtime (min.): 7.1 min. (1440w)
Half Load Runtime (min.): 15.4 min. (720w)
DC System Voltage (VDC): 48
Battery Recharge Rate (Included Batteries): 1.4 hours from 10% to 90% (typical, full load discharge)
Expandable Runtime: No

Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145
Overvoltage Correction: Input voltages between 127 and 145 are reduced by 12%
Undervoltage Correction: Input voltages between 108 and 96 are boosted by 12%
Severe Undervoltage Correction: Input voltages between 83 and 95 are boosted by 24%

Front Panel LCD Display: Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)
Switches: 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions
Alarm Cancel Operation: Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
Audible Alarm: Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions

UPS AC Suppression Joule Rating: 570
UPS AC Suppression Response Time: Instantaneous
EMI / RFI AC Noise Suppression: Yes

Included Mounting Accessory Description: 4 post rackmount installation accessories included
Installation Form Factors Supported with Optional Accessories: 2 post rackmount (2POSTRMKITWM); Wallmount (2POSTRMKITWM); Tower (2-9USTAND); 2-4 post front rail rackmount (UPSHDEARKIT); accessories sold separately
Primary Form Factor: Rackmount
Rack Height (U Spaces): 2
Minimum Required Rack Depth (inches): 24.5
Cooling Method: Fan
UPS Housing Material: Steel

Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature Range: +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity: 0 to 95%, non-condensing
AC Mode BTU / Hr. (Full Load): 130
AC Mode Efficiency Rating (100% Load): 97%
Audible Noise: 45 dBA Max @ 1m front side

Communications Interface: USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
Network Management Cards: SNMPWEBCARD; TLNETCARD; WEBCARDLX; RELAYIOCARD
Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions
PowerAlert Software: Included
Communications Cable: USB, DB9 and EPO cabling included
WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications
Network UPS Tools Compatibility: NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite

Transfer Time: 5 milliseconds (AC to battery mode), 1 millisecond (Battery to A

This product is subject to our return policy. Please see our complete return policy for details.

55 lbs

39121011

5 Years

5 Years

Product Warranty Period (Worldwide): 5-year limited warranty

Connected Equipment Insurance (U.S., Canada & Puerto Rico): $250,000 Ultimate Lifetime Insurance
