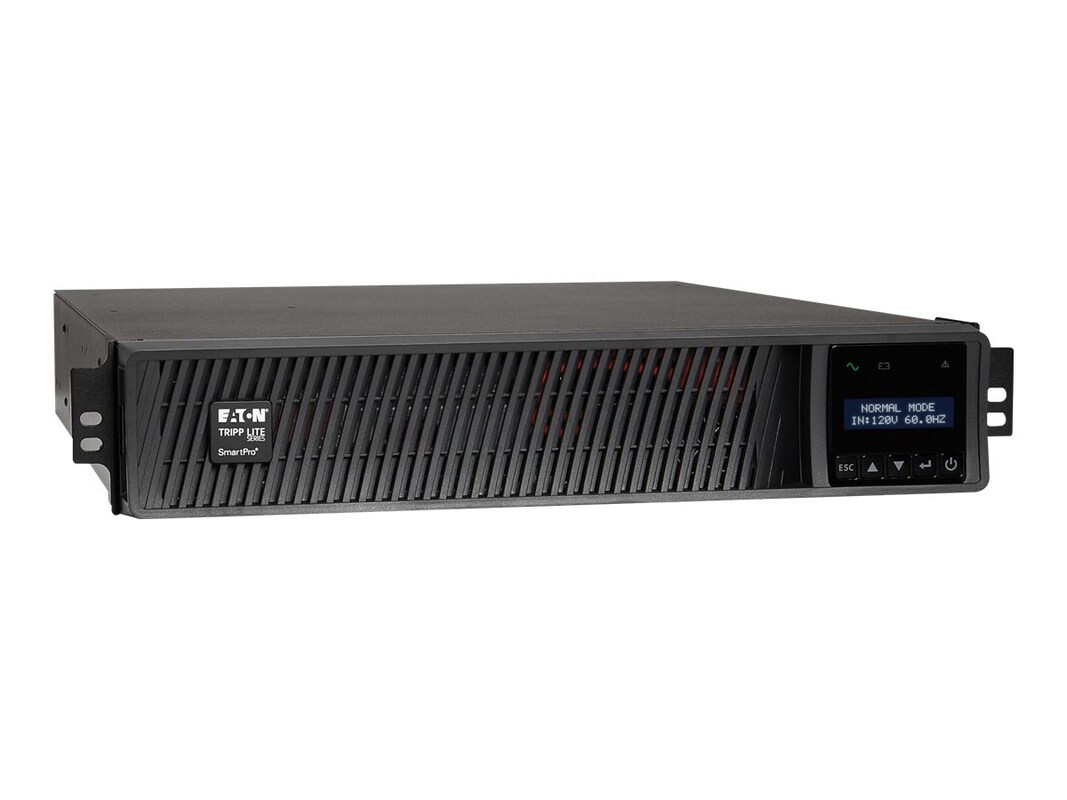

Tripp Lite SmartPro 3KVA 2.88kW 120V Line Interactive 2U Rack UPS, Interactive LCD (Smart3000RMXL2U)

72.80 lbs

Key Features

Tripp Lite SMART3000RMXL2U line interactive 2U rack/tower UPS with 3000VA/3kVA capacity and extended runtime options
Line interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 83 to 145V
NEMA L5-30P input plug; (8) NEMA 5-15/20R and (1) L5-30R output receptacles, Two independently switchable output load banks
Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages
High 96% efficiency rating in line-power mode offers reduced power consumption and BTU emisssions
Internal batteries offer 10 minutes at 50% load (1440W) and 3 minutes at 100% load (2880W)
Extended runtime is available with optional BP48V24-2U (limit 1) OR BP48V60RT3U (no limit) external battery packs
External battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
Hot-swappable, user-replaceable internal batteries and external battery packs can be replaced with no disruption to connected equipment
Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic, plus 7 selectable screens of detailed UPS and site power information
LCD interface also supports a number of advanced user setup and operating preferences
Ships with 4-post rackmount installation hardware; Optional 2POSTRMKITWM enables 2-post rackmount/wallmount installation; Optional 2-9USTAND enables tower placement
Built-in USB, RS-232 and optional SNMPWEBCARD accessory monitoring options
HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
Included PowerAlert UPS monitoring software; Built-in Emergency Power Off (EPO) interface with cable

LEDs, Alarms and Switches

Front panel LCD display Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)
Alarms Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
Alarm cancel operation Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
Switches 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions

Communications

Communications interface USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
Network monitoring port description Supports detailed monitoring of UPS and site power conditions
PowerAlert software Included
Communications cable USB, DB9 and EPO cabling included
WatchDog compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications

Line/Battery Transfer

Transfer time: 5ms (line to battery)/2ms (battery to line)
Low voltage transfer to battery power (setpoint): 83
High voltage transfer to battery power (setpoint): 145

SPECIAL FEATURES

Cold Start (startup in battery mode during a power failure): Cold-start operation supported
High availability UPS features: Hot swappable batteries
Green & high efficiency features: Greater than 95% efficiency - GREEN UPS; Individually controllable load banks

UPS, software, cabling, mounting hardware, documentation

3.5"h x 17.5"w x 19"d

Built-in UPS output receptacles: (8) 5-15/20R outlets; (1) L5-30R outlet
Built-in controllable switched load banks: Two switchable single outlet 5-15/20R load banks
Output circuit breaker: Two 20A output breakers protect (4) 5-15/20R outlets each
UPS input connection type: L5-30P
UPS Input cord length: 10ft (3m)

Output

Output Capacity: 3000VA/2880W
Output power factor: 0.96
Nominal Output Voltage Supported: 120V
Frequency compatibility: 60Hz
Output voltage regulation (line mode): +6%, -14%
Output voltage regulation (Battery mode): +/-5%
Output AC waveform (AC mode): Pure Sine wave
Output AC waveform (battery mode): Pure Sine wave

INPUT

Rated input current (at maximum load): 24A
Nominal Input Voltage Supported: 120VAC
Recommended Electrical Service: 30A, 120V

BATTERY

Full load runtime: 3 minutes (2880W)
Half load runtime: 10 minutes (1440W)
Expandable battery runtime: Extended runtime supported via optional external battery packs
External battery pack compatibility: BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible)
DC system voltage: 48V
Battery recharge rate (included batteries): Less than 5 hours from 10 to 90%
Replacement battery cartridge (internal UPS battery replacement): RBC58-2U
Battery Access: Front panel battery access door
Battery replacement description: Hot-swappable, replaceable batteries

VOLTAGE REGULATION

Voltage regulation description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145V
Overvoltage correction: Input voltages between 127 and 145V are reduced by 12%
Undervoltage correction: Input voltages between 108 and 96V are boosted by 12%
Severe undervoltage correction: Input voltages between 83 and 95V are boosted by 24%
