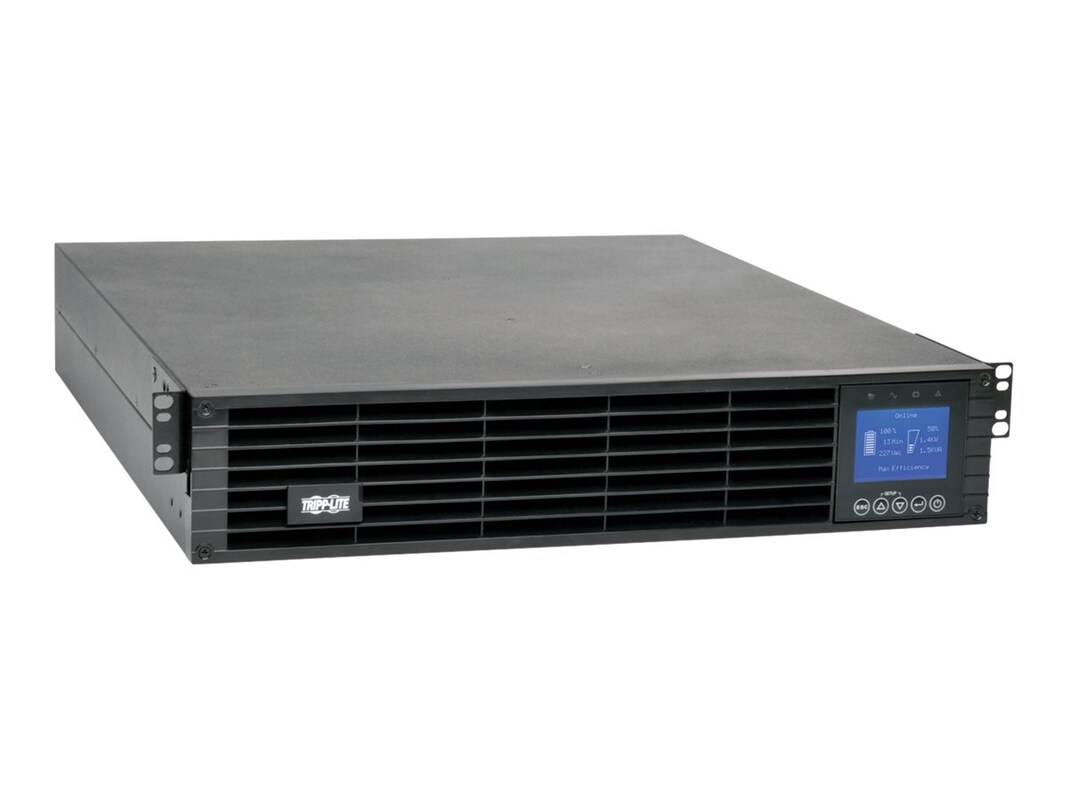

The SU3000LCD2UHV SmartOnline 3000VA/2700W On-Line Double-Conversion UPS converts AC input to DC power, and then converts DC to fully regulated sine wave AC output with +/-2% voltage regulation in online and battery modes. An interactive front-panel LCD interface provides detailed real-time UPS status and advanced setup and configuration options.
In case of AC power outage, the internal batteries support 13.5 minutes of runtime at half load and five minutes at full load. Extended runtime is possible with optional external battery packs. "Smart" battery packs, such as Tripp Lite's BP72V18-2US, are automatically sensed and configured during replacement. An intelligent battery management system extends battery life.
Managing the UPS is simplified through the interactive front-panel LCD interface, which displays operating conditions and diagnostic data, such as load and battery levels. You can set power strategies to reflect your protection priorities, whether it is precise power quality for sensitive systems or the highest possible electrical efficiency, all while ensuring 100% uptime for your systems.
This UPS offers eight receptacles -- six NEMA 6-15/20R and two NEMA L6-20R -- in two switched load banks. Power is filtered to protect connected equipment against surges and EMI/RFI line noise that can damage equipment or destroy data. Adding an optional Tripp Lite SNMPWEBCARD accessory card permits remote management of the UPS, including reboots, configuration, updates and activity logs.
In case of AC power outage, the internal batteries support 13.5 minutes of runtime at half load and five minutes at full load. Extended runtime is possible with optional external battery packs. "Smart" battery packs, such as Tripp Lite's BP72V18-2US, are automatically sensed and configured during replacement. An intelligent battery management system extends battery life.
Managing the UPS is simplified through the interactive front-panel LCD interface, which displays operating conditions and diagnostic data, such as load and battery levels. You can set power strategies to reflect your protection priorities, whether it is precise power quality for sensitive systems or the highest possible electrical efficiency, all while ensuring 100% uptime for your systems.
This UPS offers eight receptacles -- six NEMA 6-15/20R and two NEMA L6-20R -- in two switched load banks. Power is filtered to protect connected equipment against surges and EMI/RFI line noise that can damage equipment or destroy data. Adding an optional Tripp Lite SNMPWEBCARD accessory card permits remote management of the UPS, including reboots, configuration, updates and activity logs.
-
70.81 lbs
-
Features
Converts AC input to DC power, then DC to fully regulated sine wave AC output
+/-2% voltage regulation in online and battery modes
Selectable 200/208/220/230/240V output voltage
3000VA/2700W capacity
(6) NEMA 6-15/20R and (2) NEMA L6-20R outlets
570-joule surge suppression rating
Interactive Front-Panel LCD reports detailed status information, including load and battery levels
Offers advanced configuration options, including output voltage and power strategies
Auto Adaptive enables high efficiency and high-quality operation as necessary for ideal equipment protection
Max Efficiency favors economy operation with high 95% efficiency
Max Quality favors on-line, double-conversion mode, maintaining +/-2% output voltage regulation and zero transfer time
Frequency Regulation and Frequency Conversion enable +/-0.05Hz output regulation for selected frequency(50/60Hz)
Supports half load(1350W) for 13.5 min. and full load(2700W) for 5 min.
Add external battery packs for extra runtime
"Smart" battery packs, such as Tripp Lite’s BP72V18-2US, are automatically sensed and configured during replacement
Full 2700W capacity available with and without external battery packs
Maintains utility output during UPS fault conditions
Adjustable bypass range and high-efficiency mode voltage settings
Customize communications and behavior to integrate with device makers' specific needs
Selectable auto-restart from 0 to 60 sec. after AC power is restored
Selectable minimum battery charge level before auto-restart
Schedule system reboot if USB signal from connected device is lost
Set overload thresholds and low battery levels for alert and shutdown
Remote on/off(toggle) support via DB-9
Optional Tripp Lite SNMPWEBCARD permits remote management of UPS, including reboots, configuration, updates and activity logs -
# Ports: 8Communication Interface: Serial (RS-232)Communication Interface: USBConnector: Power IEC 320 EN 60320 C13 (F)Connector: Power IEC 320 EN 60320 C14 (M)Connector: Power IEC 320 EN 60320 C19 (F)Connector: Power IEC 320 EN 60320 C20 (M)Connector: Power IEC 60320 C20Connector: Power NEMA 6-20 (F)Connector: Power NEMA L6-20 (F)
-
UPS, 4-post rack-mount kit, USB cable, serial cable, documentation
-
Attributes: Double conversion onlineColor: BlackForm Factor: 2U RackmountForm Factor: Rack-mountableWarranty Period: 2 yearsWeight Taxonomy: 70.77lbs
-
3.5"h x 17.25"w x 24.25"d
-
Output Receptacles: (6) 6-15/20R; (2) L6-20R
Included Output Power Cables: (2) C13 to C14 and (1) C19 to C20 power cables
Load Management Receptacles: Two switchable 4-outlet load banks (3 C13 and 1 C19 per bank)
UPS Input Connection Type: C20 inlet
-
Battery Run Time (max): 5minPower Capacity (VA): 3000VAPower Provided: 2700Power Provided: 2700WSurge Suppression: StandardSurge Suppression: YesVoltage Provided: 240VVoltage Provided: 72V
-
Output
Output Capacity: 3000VA/2700W
Output Capacity De-rating information: Max output in Frequency Conversion mode is reduced to 1890 watts for 208/220/230/240V output voltages; Max output is reduced to 2160W at 200V output voltage in all operating modes OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% for 3 minutes, 150% for 30 seconds and >150% for 0.5 seconds before switching to BYPASS (when bypass input voltage and frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE bypass limits).
Power Factor: 0.9
Crest Factor: 3:1
Nominal Output Voltages Supported: 200V; 208V; 220V; 230V; 240V
Nominal Voltage Details: Nominal output voltage is user configured on first power-on
Frequency Compatibility: 50/60Hz; Supports 50 to 60Hz and 60 to 50Hz conversion
Frequency Compatibility Details: Output frequency matches input nominal on startup; Output capacity de-rates by 30% during frequency conversion operation
Output Voltage Regulation (Line Mode): +/- 2%
Output Voltage Regulation (Economy Line Mode): +/- 10%
Output Voltage Regulation (Battery Mode): +/- 2%
Output AC Waveform (AC Mode): Pure Sine wave
Output AC Waveform (Battery Mode): Pure Sine wave
Input
Rated input current (Maximum Load): 14.97A
Nominal Input Voltages Supported: 200VAC; 208VAC; 220VAC; 230VAC; 240VAC
Input Phase: Single-Phase
Battery
Full Load Runtime: 5 min. (2700w)
Half Load Runtime: 13.5 min. (1350w)
Expandable Battery Runtime: Supports extended runtime with optional external battery packs
External Battery Pack Compatibility: BP72V15-2U(limit 1); BP72V28RT-3U(multi-pack compatible); BP72V18-2US(multi-pack compatible)
DC System Voltage: 72VDC
Battery Recharge Rate (Included Batteries): 3.0 hours from 10% to 90% (typical, full load discharge)
Internal UPS Replacement Battery Cartridge: RBC72S
Battery Access: Front panel battery access door
Battery Replacement Description: Hot-swappable, replaceable batteries
Expandable Runtime: Yes
VOLTAGE REGULATION
Voltage Regulation Description: Online, double-conversion power conditioning
Overvoltage Correction: 2% output voltage regulation during overvoltages to 288
Undervoltage Correction: 2% output voltage regulation during undervoltages to 160V (100% load), 130V (70% load), 100V (30% load) -
This product is subject to our return policy. Please see our complete return policy for details.
-
84.85 lbs
-
Compliant Standards: CSACompliant Standards: EACCompliant Standards: FCC Part 15 ACompliant Standards: NOMCompliant Standards: SASOCompliant Standards: UL 1778
-
39121011
