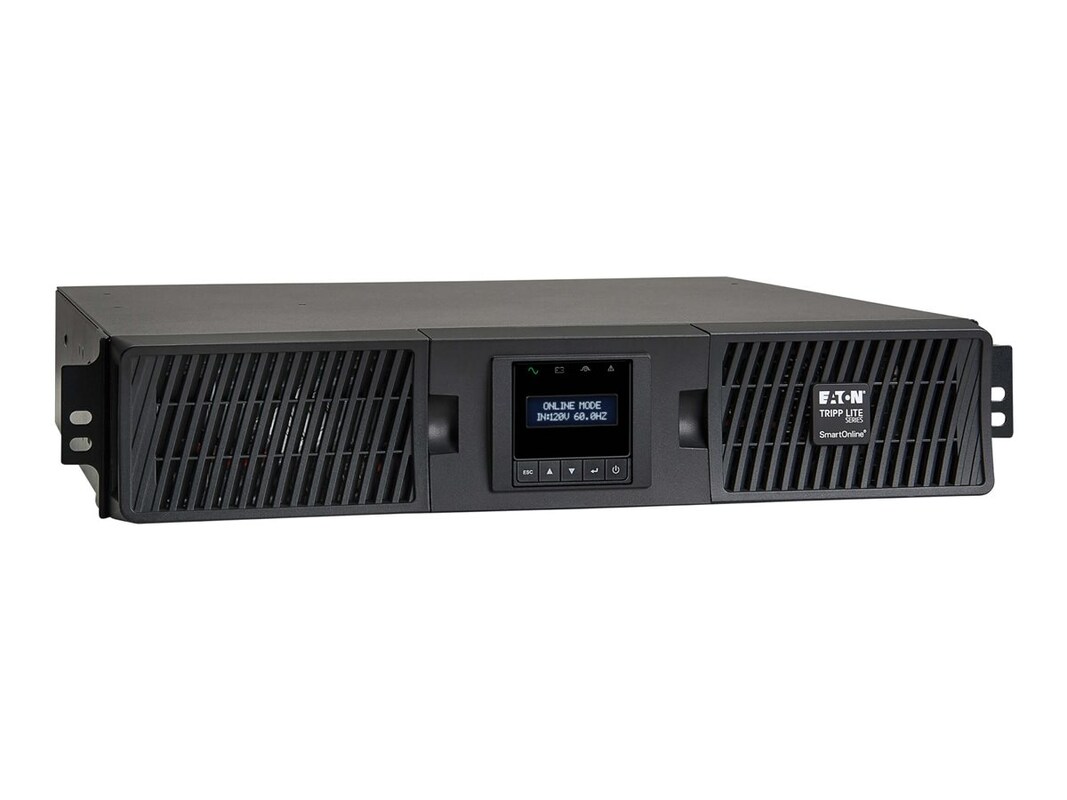

Tripp Lite SmartOnline 3KVA 120V Onlne Dbl Conv UPS, 2U RM, LCD Display, L5-30P (SU3000RTXLCD2U)

70.50 lbs

Key Features

Tripp Lite SU3000RTXLCD2U high performance 3000VA/3kVA/2700W on-line, double-conversion 2U rackmount UPS is ideal for all critical voice, data, medical and industrial IT applications
Selectable 100/110/120/127V 50/60Hz input/output compatibility
NEMA L5-30P input, (4) NEMA 5-15/20R, (4) 5-15R & (1) L5-30R outlets
Two switched 4-outlet load banks support remote reboot or programmable load shedding options
Supports 2% output voltage regulation with zero transfer time in online, double conversion mode
High 99% efficiency operation is available using the Economy mode option for reduced power consumption and lower BTU emissions
Economy mode is schedulable via PowerAlert UPS management software for daily or weekly hours of operation for precision output during peak hours and high efficiency, low BTU operation during off-peak times
11.3 minutes runtime at 50% load (1350W) and 4.1 minutes at 100% load (2700W) using internal batteries
Optional BP72V15-2U (limit 1), BP72V18-2US (no limit) or BP72V28RT3U (no limit) external battery packs available (some configurations require Tripp Lite's External Battery Configuration Software)
LCD interface reports operating mode plus 9 selectable screens of UPS data (Load percentage, kW & kVA, Power factor, Input voltage & frequency, Output voltage & frequency, Battery voltage and charge percentage, Minutes runtime, Capacity remaining and Kw/hr. consumption)
LCD interface also supports 16 screens of UPS configuration and setup options
4-post installation hardware included, Optional 2POSTRMKITHD enables 2-post rack installation
Electronic bypass maintains utility output during a variety of UPS fault conditions
Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement
Frequency regulation/conversion mode offers generator-compatible frequency correction or conversion of frequency from 50 to 60Hz or 60 to 50Hz
Built-in USB, RS-232, contact-closure and optional SNMPWEBCARD accessory monitoring options
HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
Included PowerAlert UPS management software

LEDS ALARMS & SWITCHES

LED Indicators: (7) front panel LEDs indicate line power availability, AC to DC conversion, battery mode operation, inverter mode, eco mode operation, bypass mode operation and AC output status
Front panel LCD display: Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, frequency, operating mode, alarm function and a variety of additional options
Alarms: Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
Alarm cancel operation: Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
Switches: (2) switches control off/on power status and alarm-cancel operation; (2) additional scroll-down and scroll-up/select options enable LCD status viewing and configuration options

PHYSICAL

Installation form factors supported with included accessories: 4-post 19" rackmount
Installation form factors supported with optional accessories: 2-post rackmount (2POSTRMKITWM); Wallmount (2POSTRMKITWM); 2-4 post front rail rackmount (UPSHDEARKIT)
Primary form factor: Rackmount
Rack Height: 2U

COMMUNICATIONS

Communications interface: USB (HID enabled); DB-9 Serial; Contact closure; EPO (emergency power off); Slot for SNMP/Web interface
Network monitoring port description: Supports detailed monitoring of UPS and site power conditions; DB-9 port supports RS-232 and contact closure communications
PowerAlert software: Included
Communications cables: USB and DB-9 c

UPS, PowerAlert software, USB/Serial/EPO cabling, 4-post rackmount installation kit, documentation

3.4"h x 17.3"w x 25.5"d

Built-in UPS output receptacles 4 5-15R outlet(s); 4 5-15/20R outlet(s); 1 L5-30R outlet(s)
Built-in controllable switched load banks Two switchable four-outlet load banks
UPS input connection type L5-30P
Input circuit breaker 40A
UPS Input cord length (ft.) 10
UPS Input cord length (m) 3

OUTPUT

Output Capacity: 3000VA/2700W
Output power factor: 0.9
Output Capacity Details: ON LINE MODE Maximum output capacity ratings are reduced for some nominal voltage settings (127/120V 2700 watts/115V 2430 watts/110V 2295 watts/ 100V 2160 watts). FREQUENCY REGULATION / CONVERSION MODE Maximum output ratings are reduced in frequency regulation/conversion mode (127/120V 1890 watts/115V 1701 watts/110V 1606 watts/100V 1512 watts).
Crest Factor: 3:1
Nominal Output Voltages Supported: 100V; 110V; 115V; 120V; 127V
Nominal Voltage details: 120V factory-default nominal voltage
Frequency compatibility: 50/60 Hz; Supports 50 to 60Hz and 60 to 50Hz conversion
Frequency compatibility details: ON LINE MODE Output frequency is automatically configured to match nominal input frequency on startup; Output matches input frequency when +/-5Hz of nominal; Output is regulated to +/-0.05Hz when input frequency exceeds +/-5Hz of nominal. UPS switches to battery mode when input frequency is below 40Hz or above 70Hz; FREQUENCY REGULATION/CONVERSION MODE Output is regulated to +/-0.05Hz of selected output frequency input is 40 to 70Hz; UPS switches to battery mode when input frequency is below 40Hz or above 70Hz. BATTERY MODE: Output is regulated to +/-0.05Hz.
Output voltage regulation (line mode): +/- 2%
Output voltage regulation (Economy line mode): +/- 10%
Output voltage regulation (Battery mode): +/- 3%
Output AC waveform (AC mode): Pure Sine wave
Output AC waveform (battery mode): Pure Sine wave

INPUT

Rated input current (at maximum load): 24A
Nominal Input Voltages Supported: 100V AC; 110V AC; 115V AC; 120V AC; 127V AC
Nominal input voltage description: 120V factory default
Recommended Electrical Service: 30A, 120V

BATTERY

Full load runtime: 4.1 min. (2700w)
Half load runtime: 11.3 min. (1350w)
Expandable battery runtime: Extended runtime supported via optional external battery packs
Optional external battery pack compatibility: BP72V15-2U (limit 1); BP72V28RT-3U (multi-pack compatible); BP72V18-2US (multi-pack compatible)
Expandable runtime description: Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software, see manual for details
DC system voltage: 72VDC
Battery recharge rate (included batteries): Less than 3 hours recharge to 90%
Replacement battery cartridge (internal UPS battery replacement): RBC72S
Battery Access: Front panel battery access
Battery replacement description: Hot-swappable, user replaceable batteries

VOLTAGE REGULATION

Voltage regulation description: Online, double-conversion power conditioning maintains 2% output voltage regulation during brownouts and overvoltages
Overvoltage correction: Corrects overvoltages to 150V (0-100% load)
Undervoltage correction: Corrects undervoltages to 90V at full load (90V at 100V nominal)
Severe undervoltage correction: Corrects brownouts to 70V (70% load) & 55V (33% load)

SURGE / NOISE SUPPRESSION

UPS AC suppression rating: 570 Joules
UPS AC suppression response time: Instantaneous
EMI/RFI AC noise suppression: Yes
