- RJ-45 Connector(s)
- IEEE 802.3ab/IEEE 802.5, RoHS Compliant
- Red

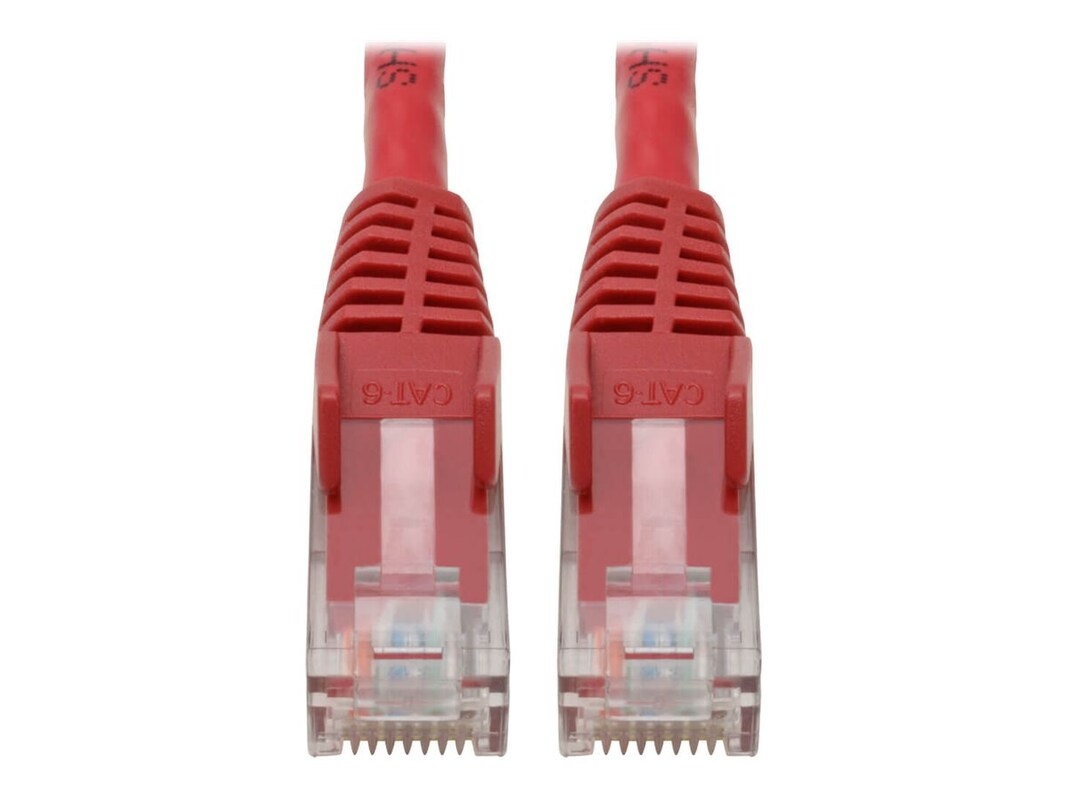

The N201-06N-RD Premium Cat6 Gigabit Snagless Molded UTP Patch Cable (M/M) is recommended for distributing data, voice and video through computers, network adapters, routers, servers, modems, hubs and switches in high-density data centers. Designed for fast transmission and excellent signal quality, this cable ensures peak performance throughout your local area network (LAN). It reduces impedance and structural return loss compared to standard 100 MHz wire.
This six-inch red cable is designed for 1000Base-T (1 Gbps Ethernet), 10/100Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, Token Ring Type 3 and EIA/TIA applications. Manufactured from 24 AWG four-pair stranded UTP with a rugged PVC jacket, the N201-06N-RD delivers speeds up to 550 MHz/1 Gbps and flawless signal delivery, while keeping near-end crosstalk levels to a minimum.
The RJ45 short-body connectors’ snagless design protects the locking tabs from being damaged or broken off during installation. Corrosion-resistant gold-plated copper contacts provide maximum conductivity and minimize data loss. Integral strain relief gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking. Meets most other current industry standards, including IEEE 802.3ab, 802.5, ISO/IEC 11801 and ETL (Cat6 draft 11).
This six-inch red cable is designed for 1000Base-T (1 Gbps Ethernet), 10/100Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, Token Ring Type 3 and EIA/TIA applications. Manufactured from 24 AWG four-pair stranded UTP with a rugged PVC jacket, the N201-06N-RD delivers speeds up to 550 MHz/1 Gbps and flawless signal delivery, while keeping near-end crosstalk levels to a minimum.
The RJ45 short-body connectors’ snagless design protects the locking tabs from being damaged or broken off during installation. Corrosion-resistant gold-plated copper contacts provide maximum conductivity and minimize data loss. Integral strain relief gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking. Meets most other current industry standards, including IEEE 802.3ab, 802.5, ISO/IEC 11801 and ETL (Cat6 draft 11).
-
Recommended for connecting computers, network adapters, routers, servers, modems, hubs and switches in high-density data centers.
Designed for 10/100/1000 Base-T, 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, Token Ring Type 3 and EIA/TIA applications.
Provides high-speed connections up to 550 MHz/1 Gbps.
Flawless signal delivery with minimal near-end crosstalk levels.
Reduces impedance and structural return loss compared to standard 100 MHz wire.
Molded snagless boots prevent locking tabs from damage during installation.
Manufactured from 24 AWG 4-pair stranded UTP.
Gold-plated copper contacts for maximum conductivity and minimum data loss.
Integral strain relief protects cable and connectors from stress and cracking.
Rugged PVC jacket stands up to long-term use.
Meets Cat6 TIA/EIA standards.
Meets most other current industry standards, including IEEE 802.3ab, 802.5, ISO/IEC 11801 and ETL (Cat6 draft 11). -
Connectivity Technology: Unshielded twisted pair (UTP)Connectivity Technology: UTPConnector: RJ-45Network Cable Type: Patch CableNetwork Cable Type: Patch
-
cable, documentation
-
Color: RedLength: 5.9inLength: 6inMaterial: PVCWarranty Period: Limited lifetime
-
(2) RJ-45 (M)
-
This product is subject to our return policy. Please see our complete return policy for details.
-
0.05 lbs
-
Compliant Standards: IEEE 802.3ab/IEEE 802.5Compliant Standards: RoHS
-
26121600
-
Limited Lifetime
-
Limited Lifetime
