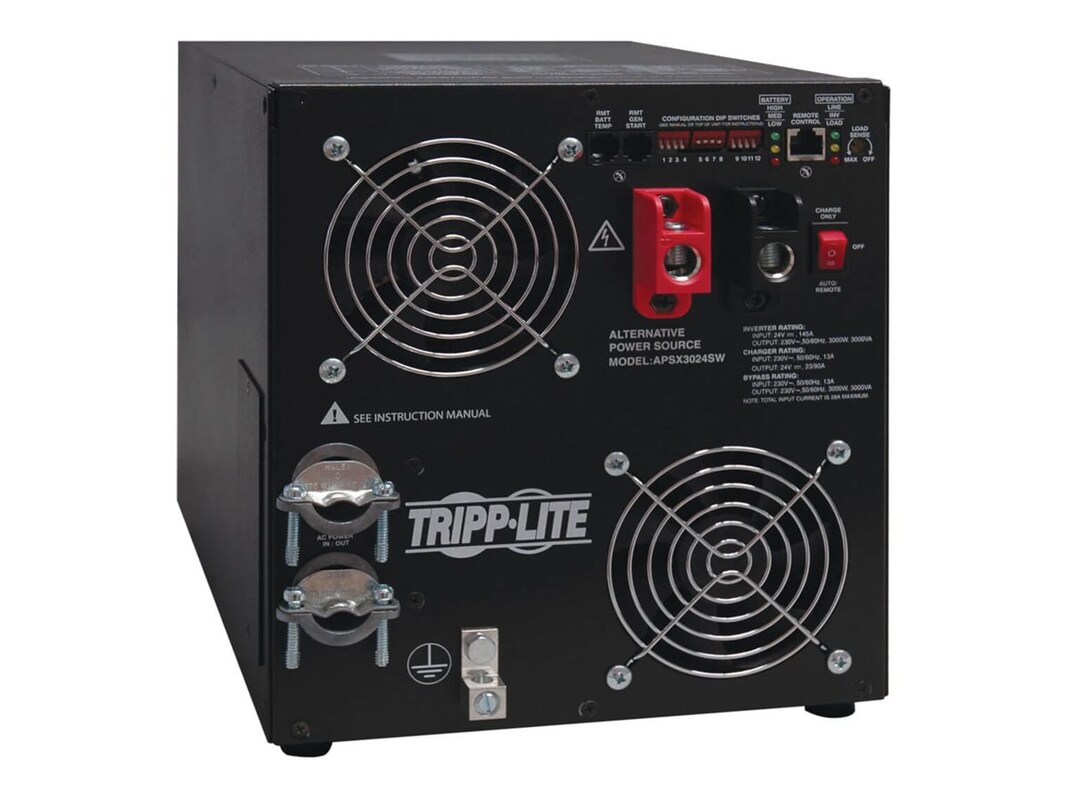

Tripp Lite PowerVerter APS X Series 3000W Inverter, International, 24VDC 230VAC HW Input, 230VAC HW Output

64.80 lbs

Key Features

Supports 230V AC output from a 230V AC line power source or 24V DC battery source
3000W continuous sinewave AC output in inverter mode
Double Boost output supports momentary start-up loads up to 200% of the continuous rating for up to 10 seconds (see specification chart) - OverPower output supports longer duration overloads to 150% for up to 60 seconds
3-stage, selectable 23/90 amp battery charger with adjustable settings for wet/gel battery types
3-position operating mode switch supports "AUTO" mode to enable automatic transfer between DC and AC modes, CHARGE-ONLY to maintain a full battery charge when AC is present without auto transfer and SYSTEM OFF settings
Set of (6) front panel LEDs display continuous status information
Set of (4) dip switches support AC input selection of 230V, selectable 50 /60Hz frequency, and selectable full or half cycle transfer times
Set of (4) dip switches support wet/gel battery charging profiles, adjustable 260/270V (230V) high voltage auto transfer during overvoltages and selectable 150/60V / 170/180V (230V) AC low voltage auto transfer during brownouts
Set of (4) additional dip switches support battery equalization program and battery charger low / high settings
Automatic overload and thermal (overheating) shutoff
Front panel remote control connector enables remote off/on switching (APSRM4 sold separately)
Load sensing control dial enables adjustable load threshold required to automatically turn the inverter on and off in DC mode as load conditions change
Automatic Generator Starter jack enables user configuration of automatic generator start-up as inverter batteries drop to 23.0 VDC and generator shutoff as inverter batteries are recharged to 28.2 VDC.
Remote battery temperature sensing connection function prolongs battery life by adjusting the charge float voltage level based on battery temperature

LEDS ALARMS & SWITCHES

Switches: 3-position on/off/remote switch enables simple on/off power control plus "auto/remote" setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory when used in inverter mode.
Front panel LEDs:Set of (6) LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported).

Unit, documentation

10.1"h x 8.9"w x 12.4"d

Outlet quantity / type: Hardwire
Input connection type: DC INPUT - set of DC bolt-down terminals; AC INPUT - hardwire via built in terminal strip with cover plate

OUTPUT

Frequency compatibility 50 / 60 Hz
Output watts 3000
Continuous output capacity (watts) 3000
Peak output capacity (watts) 6000
Output nominal voltage 230V
Output voltage regulation LINE POWER (AC): Maintains 230V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains sine wave output voltage of 230 VAC (+/-5%).
Output frequency regulation 50/60 Hz (+/- 0.3 Hz)

INPUT

Nominal Input Voltage(s) Supported 230V AC
Recommended Electrical Service DC INPUT: Requires 24VDC input source capable of delivering 145A for the required duration (when used at full continuous capacity - DC requirements increase during OverPower and DoubleBoost operation). For automotive applications, professional hardwire
Maximum Input Amps (A) 28
Voltage compatibility (VAC) 230
Voltage compatibility (VDC) 24

BATTERY

Expandable battery runtime Runtime is expandable with any number of user supplied wet or gel type batteries
DC system voltage (VDC) 24
Battery Pack Accessory (optional) 98-121 sealed lead acid battery (optional)
Battery recharge rate Selectable 23 / 90 amp

VOLTAGE REGULATION

Voltage regulation description Includes automatic voltage regulation to correct brownouts and overvoltages back to usable levels
Overvoltage correction Overvoltages are automatically reduced by 10%
Brownout correction Brownouts are automatically boosted by 10% and 20%

LINE / BATTERY TRANSFER

Transfer time from line power to battery mode Dip-switch selectable 20 millisecond (full cycle) / 10 millisecond (half-cycle) transfer times which are compatible with many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications
Low voltage transfer to battery power In 230V AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 170V AC (user adjustable to 180V).
High voltage transfer to battery power In 230V AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 260V

This product is subject to our return policy. Please see our complete return policy for details.

85.5 lbs

39121006

2 Years

2 Years

Product Warranty Period U.S. & Canada, International, Mexico, Puerto Rico: 2-year limited warranty
