In Stock
- Ships in 24-48 Hours
Ordering Information
$150.98
Quick View
Getting Details

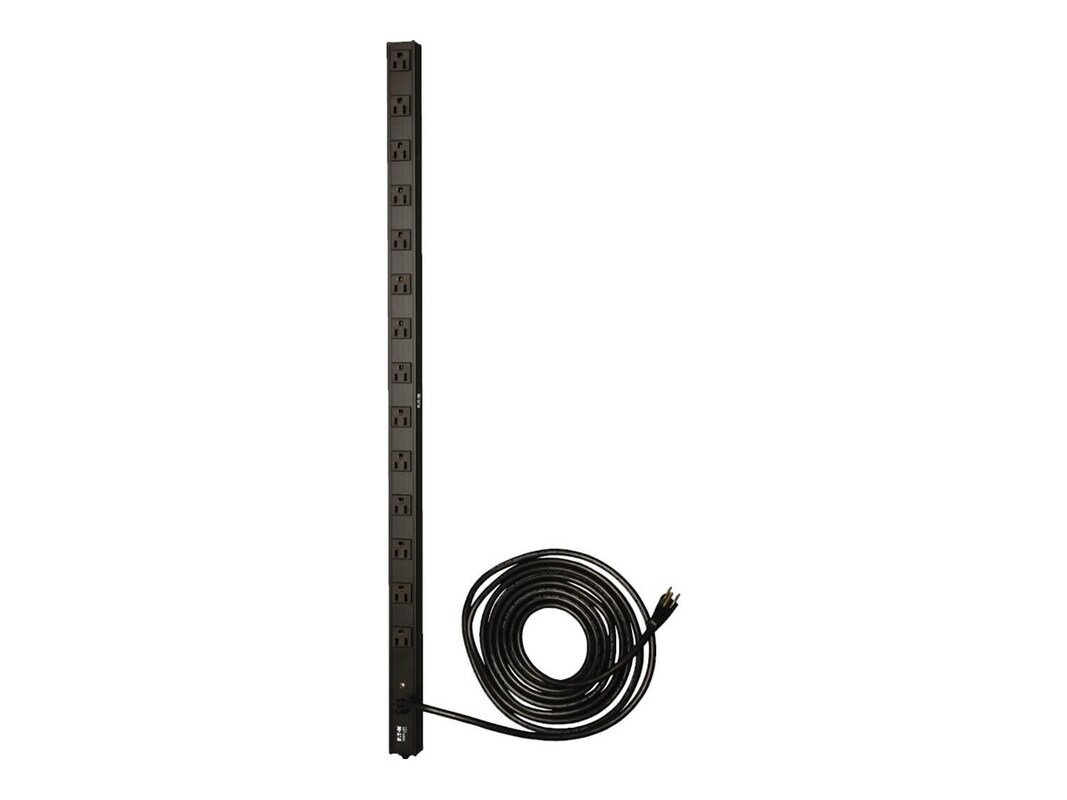

This Basic PDU from Tripp Lite reliably distributes AC power from a UPS system, generator or utility wall outlet to multiple devices. It offers high quality plug and outlet connections and a switch-free design to prevent the PDU from being accidentally disconnected or shut down. Versatile all-metal construction with detachable mounting hardware can accommodate a variety of mounting options: Vertical Rackmount, Wallmount, Raceway, Workbench.
-
3.30 lbs
-
Physical Specifications
Material of construction: Aluminum
Style: Vertical Rackmount, Wallmount, Raceway, Workbench
Form factors supported: Vertical (0U) mounting in rack enclosures, horizontal mount in raceways and a variety of other applications
PDU Form Factor: Vertical 0U
Appearance: Black housing
CERTIFICATIONS
Certifications: Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada), RoHS Compliant -
# Ports: 14Connector: Power NEMA 5-15Connector: Power NEMA 5-15 (F)Connector: Power NEMA 5-15 (M)
-
Unit, mounting hardware, documentation
-
Color: BlackForm Factor: 0U RackmountForm Factor: Rack-mountableForm Factor: Wall-mountedWarranty Period: 5 yearsWeight Taxonomy: 3.31lbs
-
36"h x 1.25"w x 1.75"d
-
(14) NEMA 5-15R outlets
(1) NEMA 5-15P input cord, 15ft -
Power Provided: 1.44kWVoltage Provided: 120VVoltage Provided: AC 120V
-
OUTPUT
Frequency compatibility: 50/60Hz
Output: 1800VA
Output nominal voltage: 120V
Overload protection: 15A
INPUT
PDU Input Voltage: 100V, 120V, 127V
Recommended Electrical Service: 120VAC
Maximum Input Current: 15A
Voltage compatibility: 120VAC
Phase: Single-Phase -
This product is subject to our return policy. Please see our complete return policy for details.
-
3.82 lbs
-
Compliant Standards: CSA C22.2 No. 60950-1-03Compliant Standards: RoHSCompliant Standards: UL 60601-1
-
39121017
