In Stock
- Ships in 1-2 Business Days

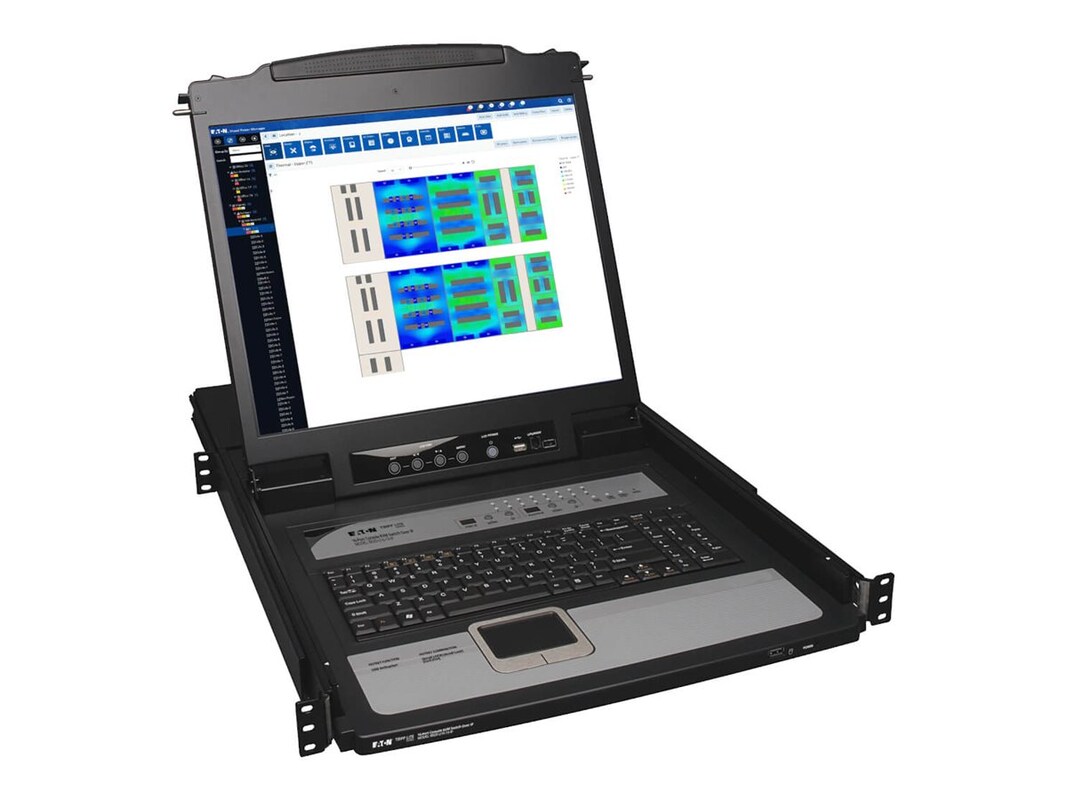

Tripp Lite's 16-port Console KVM Switch with 19" LCD is the optimal solution for controlling multiple computers from one keyboard, mouse and monitor. This single unit combines a 16-Port KVM switch, keyboard, 19" LCD monitor and touchpad; all in a mere 1U of rack space. Stores neatly in the rack, pulls out when needed. Easily switch ports using the On-Console push buttons, On Screen Display(OSD) or keyboard hot key commands. Includes eight, six-foot combo cable kits, which allow connection to either PS/2 or USB servers -- no adapters needed. Includes a console cable kit that plugs into the port on the back of the unit, providing an extra HD15, (2) USB and (2) PS/2 ports that can be used to connect a Tripp Lite B051-000 IP Remote Access Unit or an external console. Two USB ports are provided on the front of the unit: One for attachment of a separate USB mouse, and the other for attachment of USB peripherals, such as a flash drive, external hard drive, etc. to be shared between connected servers. Compatible with all major operating systems. Constructed of heavy-duty steel housing.
-
31.30 lbs
-
Audio Output Type: None
-
Features
1U rackmount console with built-in 16-Port KVM switch, 19" LCD screen, keyboard and touchpad
Includes (8) P778-Series USB-PS/2 Combo KVM Cable Kits
Additional ports are provided for the connection of an external console (PS/2 or USB) or IP remote access unit(model B051-000, available separately)
Features a USB 1.1 port on the LCD panel for the sharing of USB peripherals such as Flash Drives and Card Readers amongst the connected computers
Features a USB 1.1 port on the keyboard panel for the convenient connection of an external mouse
USB-PS/2 combo KVM cable kits allow you to connect to a USB or PS/2 computer without having to purchase separate cables or adapters
OSD available in English, Spanish, French, German and Japanese
Switch ports via on-console pushbuttons, hotkey keyboard commands or the OSD
Auto scan feature allows for continuous scanning of connected computers
Two level password security (up to four Users and one Administrator)
Supports video resolutions up to 1280 x 1024
Firmware upgradeable
Compatible with all major operating systems
Constructed of heavy-duty steel housing
DDC emulation allows the video settings of each computer to be automatically adjusted for optimal output to the built-in LCD display -
Connector: HD-15 (M)Connector: PS/2Connector: USBConnector Type: VGA (HD-15)
-
Unit, (8) cable kits, console cable kit, firmware upgrade cable, power cord, grounding wire, rackmount hardware, documentation
-
Color: BlackInput Device Type: KeyboardInput Device Type: TouchpadWarranty Period: 1-year warrantyWeight Taxonomy: 31.08lbs
-
Networking Type: KVM switch
-
1.75"h x 17"w x 27"d
-
Input Power: 100-240VAC, 50/60Hz, 1A
Power Consumption: 120V, 28.5W/230V, 29.1W
-
This product is subject to our return policy. Please see our complete return policy for details.
-
45.5 lbs
-
Compliant Standards: CECompliant Standards: CSACompliant Standards: CULCompliant Standards: EN 60950-1Compliant Standards: FCCCompliant Standards: FCC Part 15 ACompliant Standards: IEC 60950-1Compliant Standards: RoHSCompliant Standards: ULCompliant Standards: UL 60950-1
-
Computer with a HD15 port, and a USB port or PS/2 keyboard/mouse ports
P778-006 USB-PS/2 combo KVM cable kit is required for each connected computer/server
Compatible with all major operating systems
-
43211601
-
Display Size: 19inDisplay Technology: KVM consoleDisplay Type: KVM consoleNative Resolution: 1280 x 1024
-
1 Year
-
1 Year
