Ask the Experts: Have a Question on Managing VMware Workloads on Azure?
Tripp Lite NetCommander 16-Port Cat5 1U Rackmount 1+1 User Console KVM Switch with 19" LCD and IP Remote Access
-
In Stock
- Ships in 1-2 Business Days
Ordering Information
$2,450.15
Add to Cart
Messages
Loading
-
:
Quick View
Getting Details

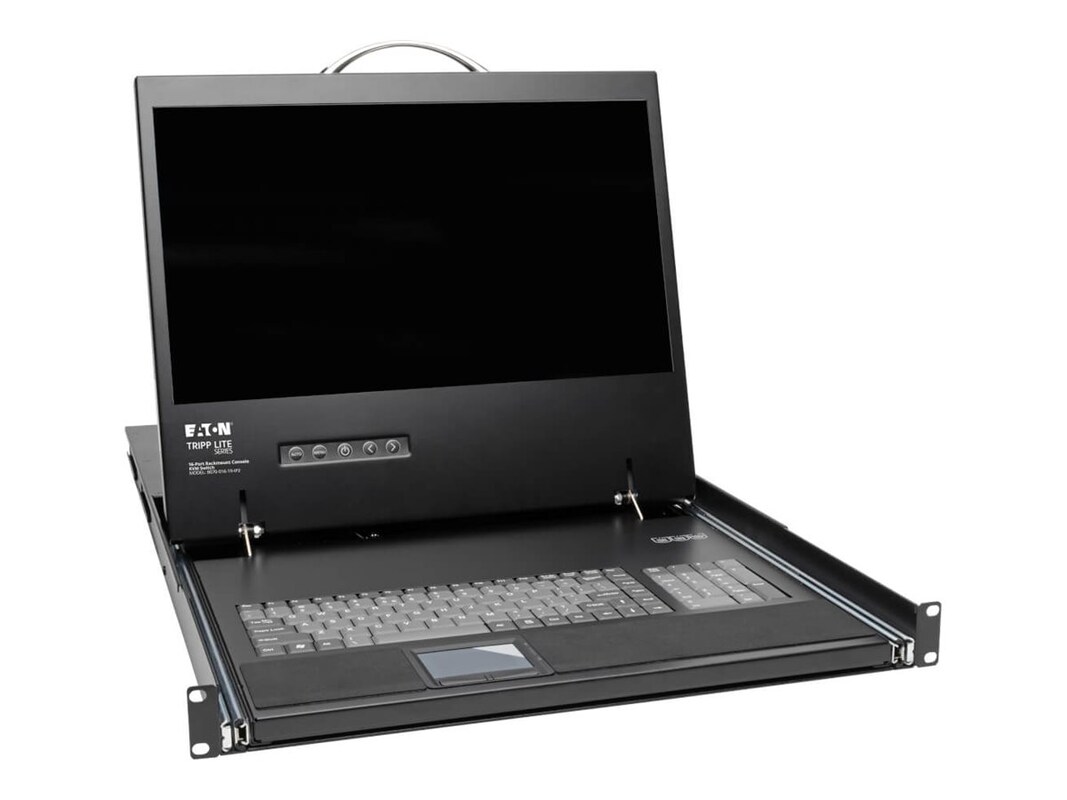

Tripp Lite’s B070-016-19-IP2 NetCommander 16-Port Cat5 1U Rack-Mount Console KVM Switch includes a full keyboard, 19-inch LCD screen and touchpad in a 1U rack-mount console. It connects up to 16 computers and/or servers and allows you to control them locally or remotely via LAN, WAN or web browser.
Connect computers/servers up to 100 feet away using Cat5e/6 cabling and a compatible Tripp Lite B078-Series server interface unit (B078-101-USB2 required for Fast Virtual Media speeds up to 12 Mbps). Dual 10/100 LAN ports ensure uninterrupted remote access in case one port should fail. A local user and two remote users can log on simultaneously and switch between the 16 ports using an on-screen display, hotkeys or remote toolbar. Multi-level password protection prohibits unauthorized access.
The LCD supports video resolutions up to 1366 x 768. Dual serial ports allow control of serial devices, such as IP PDUs, firewalls and routers. You can assign individual ports to an IP PDU port to power on/off the server connected to that port. The heavy-duty steel housing slides neatly into the rack when not in use.
Free NetCommander-AXS management software is available to access and control your Tripp Lite NetCommander IP KVM switches (B070 and B072 Series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs, and manage KVM settings. This software can be found at the Technical Support link in the right-hand column.
Connect computers/servers up to 100 feet away using Cat5e/6 cabling and a compatible Tripp Lite B078-Series server interface unit (B078-101-USB2 required for Fast Virtual Media speeds up to 12 Mbps). Dual 10/100 LAN ports ensure uninterrupted remote access in case one port should fail. A local user and two remote users can log on simultaneously and switch between the 16 ports using an on-screen display, hotkeys or remote toolbar. Multi-level password protection prohibits unauthorized access.
The LCD supports video resolutions up to 1366 x 768. Dual serial ports allow control of serial devices, such as IP PDUs, firewalls and routers. You can assign individual ports to an IP PDU port to power on/off the server connected to that port. The heavy-duty steel housing slides neatly into the rack when not in use.
Free NetCommander-AXS management software is available to access and control your Tripp Lite NetCommander IP KVM switches (B070 and B072 Series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs, and manage KVM settings. This software can be found at the Technical Support link in the right-hand column.
-
28.50 lbs
-
Connects up to 16 computers/servers up to 100 ft. away via Cat5e/6 cabling and Tripp Lite B078 Series SIUs
Computers with DisplayPort or HDMI connectors require Tripp Lite VGA adapters, such as P134-06N-VGA-V2 or P131-06N -
# Ports: 16Connector: PS/2Connector: RJ-45Connector: USBConnector: VGAConnector Type: VGA (HD-15)
-
KVM switch, power cord, rack mounting hardware, quick start guide, documentation
-
Color: BlackInput Device Type: KeyboardInput Device Type: TouchpadWarranty Period: 1-year warrantyWeight Taxonomy: 28.44lbs
-
Includes 16-Port KVM Switch, 19 in. LCD, Keyboard and Touchpad:
Mounts in 1U of space in EIA-standard 19" rack
BIOS-level control of any server brand and model
IP Remote Access for Fewer Trips to the Server Room:
Java-based application allows 24/7 remote access from anywhere via web browser over secure IP connection
Non-browser client that can bypass browser-related Java security prompts is available
Up to 3 users (1 local, 2 remote) can sign in simultaneously
Up to 5 users can share a single session
Supports both IPv4 and IPv6
Dual 10/100 Mbps LAN ports for uninterrupted remote access in case one port should fail
Simplifies IT Tasks:
Users can switch between ports via on-screen display, hotkeys or remote toolbar
Dual RJ45 serial ports for connecting IP devices, such as PDUs, firewalls and routers
Assign individual ports to an IP PDU port to power on/off the server connected to that port
Virtual Media allows ISO files to be mounted to target server and accessed directly
Supports RADIUS and LDAP/S authentication
Log tracks events on your installation
Large 19 in. LCD Screen:
Supports video resolutions up to 1366 x 768; 1920 x 1080 remotely
DDC emulation allows for optimal output to LCD
Advanced Security Features:
Multi-level password protection—create administrator accounts with full access and user accounts with limited access
128-bit AES and HTTPS encryption for highest security standards -
Networking Type: KVM switch
-
1.7"H x 18.8"W x 27.3"D
-
Nominal Input Voltage(s) Supported: 100V AC; 110V AC; 115V AC; 120V AC; 127V AC; 140V AC; 200V AC; 208V AC; 220V AC; 230V AC; 240V AC
Nominal Input Voltage Description: Internal Switching 100-240 VAC 50/60Hz
Input Frequency: 50/60Hz
Input Current: 120V (1.2A) / 230V (0.7A) -
This product is subject to our return policy. Please see our complete return policy for details.
-
35.96 lbs
-
Compliant Standards: TAACompliant Standards: Yes
-
a) Computer/server with HD15 or USB port and PS/2 keyboard/mouse ports
b) B078-Series SIU and Cat5e/6 cabling required for each connected computer/server
c) Windows or Linux operating system (Windows required for remote access)
d) Remote console computers require minimum Pentium 4 with 2 GB memory
e) SCHUKO (P054-006) or BS-1363 (P056-006-10A) power cords required for international useOS Required: LinuxOS Required: Microsoft Windows -
43211601
-
Display Size: 19inDisplay Type: KVM consoleNative Resolution: 1366 x 768
-
1 Year
-
1 Year
