Tripp Lite Metered PDU 8.6kW 208 120V 3-phase 30A 0U L21-30P 6ft Cord (36) C13 (6) C19 (6) 5-15 20R Outlets
-
Temporarily Out-of-Stock
- Call for next available delivery
Add to Cart
Messages
Loading
-
:
Quick View
Getting Details

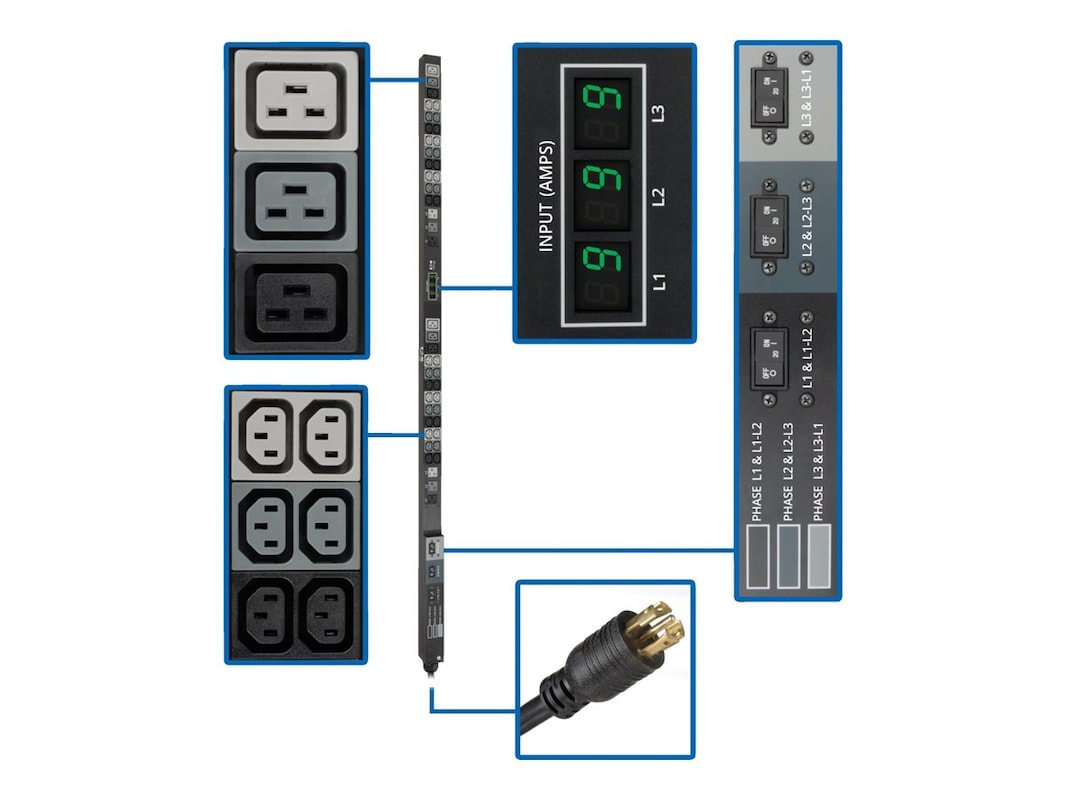

This Tripp Lite 3-phase Metered PDU / Power Distribution Unit gives you real-time local reporting of current levels in amps via set of (3) built-in digital meters. This enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. You get reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. Its high quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
-
13.90 lbs
-
Key Features
8.6kW 3-phase 208/120V Metered Power Distribution Unit (PDU)
Set of (3) built-in current meters continuously report input current per phase
Attached NEMA L21-30P 30A (3P+N+E) 208V 3-phase input plug with 6ft/1.8m cord
0U, 70"/178cm vertical form factor supports installation in 2 or 4-post equipment racks
(48) total outlets arranged in three breakered single phase output load banks
(36) C13 and (6) C19 outlets output 208V
(6) NEMA 5-15/20R outlets output 120V
Included cord retention brackets keep vital network equipment plugged in and continuously powered
Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications -
# Ports: 48Connector: Power IEC 320 EN 60320 C13 (F)Connector: Power IEC 320 EN 60320 C19 (F)Connector: Power NEMA 5-15 (F)Connector: Power NEMA 5-20 (F)Connector: Power NEMA L21-30
-
PDU, cord retention brackets, rack mounting brackets, documentation
-
Attributes: MeteredColor: BlackForm Factor: 0U RackmountForm Factor: Rack-mountableWarranty Period: 2 yearsWeight Taxonomy: 13.89lbs
-
70"h x 2.7"w x 2.2"d
-
Outlet quantity / type: (48) total - (36) C13, (6) C19, (6) NEMA 5-15/20R
PDU Plug Type: NEMA L21-30P
Input cord length: 6ft (1.83m) -
Power Provided: 8.6kWVoltage Provided: 120VVoltage Provided: 208VVoltage Provided: AC 120/208V
-
Output Capacity: 8.6kW total; 13.8A per bank input (balanced)
Frequency compatibility: 60Hz
Output nominal voltage: 208V (C13 and C19 outlets); 120V (NEMA 5-15/20R outlets)
Overload protection: (3) 20A double-pole circuit breakers (1 per output phase)
Nominal Input Voltage: Supported 208VAC
PDU Input Voltage: 208
Maximum input current: 24A
Voltage compatibility: 208VAC, 3-phase -
This product is subject to our return policy. Please see our complete return policy for details.
-
18.8 lbs
-
Compliant Standards: CSACompliant Standards: IEC 60950-1Compliant Standards: RoHSCompliant Standards: UL
-
39121017
