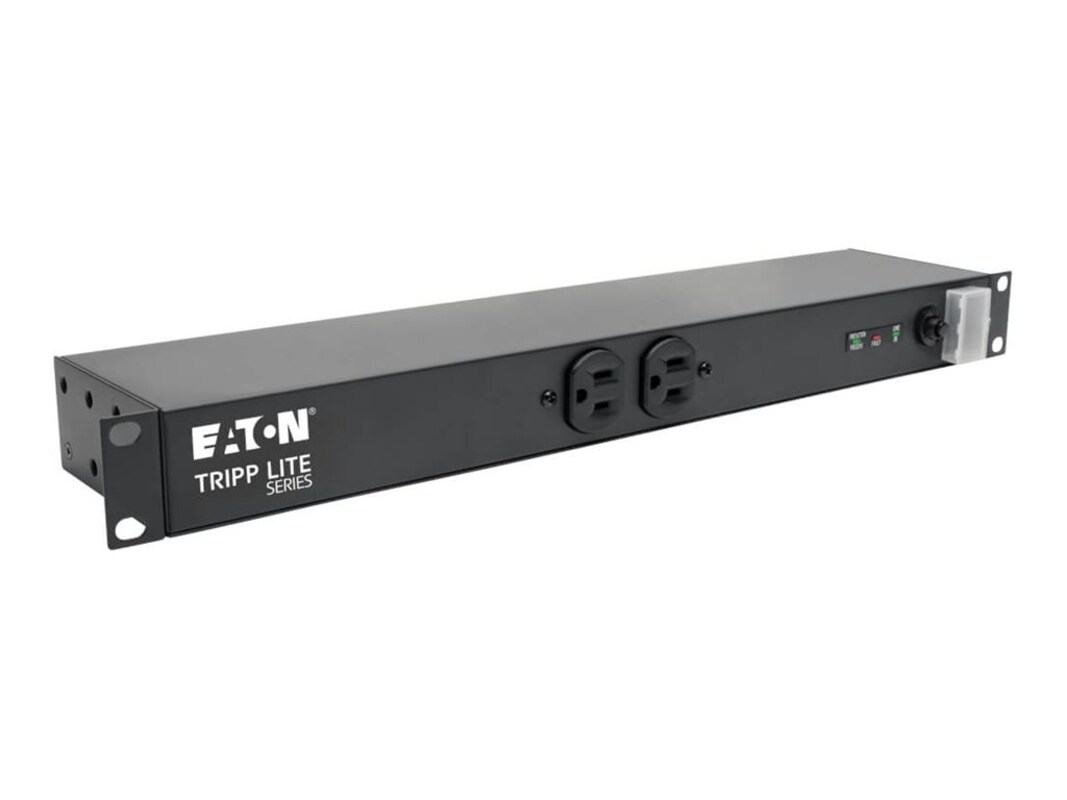

This Tripp Lite ISOBAR12ULTRA offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. It uses only 1U of rack space when installed in any 19 inch EIA standard rack. It features the highest level of AC surge and EMI/RFI noise suppression of all Tripp Lite rackmount surge suppressors. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. This includes (12) outlets (2 front / 10 rear), 15ft. AC power cord and guarded power switch to reduce the risk of accidental shutoff. Diagnostic LEDs indicate AC present, line fault and protection status.
-
4.60 lbs
-
LEDS ALARMS & SWITCHES
Switches: Red illuminated power switch controls power to all outlets
Diagnostic LEDs: PROTECTION PRESENT (green), LINE FAULT (red) and LINE OK (green)
Locking switch cover: Transparent locking switch cover prevents accidental shutoff
AC SURGE / NOISE SUPPRESSION
AC suppression rating: 3840 joules
AC suppression response time: NM = 0nsec CM = < 1nsec
Protection modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
Clamping voltage (RMS): 140V
AC suppression surge current rating: 96,000 amps
AC suppression components used: Metal oxide varistors, toroidal balanced chokes and VHF capacitors
Safe thermal fusing: Prevents unsafe conditions during extreme extended over-voltages and catastrophic occurrences
UL1499 let through rating: 330V - UL Verified
EMI / RFI filtering: 40-80dB
Immunity: Conforms to IEE 587 / ANSI C62.41
MOUNTING
Form factors supported: 1U rackmount, 0U vertical rackmount, wallmount and under-counter mounting supported - detachable flanges can be re-configured to support a variety of additional mounting options
Mounting accessories included: Included mounting flanges are pre-installated for 1U rackmount installation and can be re-configured to support a variety of mounting options -
# Ports: 12Connector: Power NEMA 5-15Connector: Power NEMA 5-15 (F)Connector: Power NEMA 5-15 (M)
-
Unit, documentation
-
Chassis Form Factor: Rack-mountableColor: BlackForm Factor: Rack-mountableWarranty Period: Limited lifetime
-
1.75"h x 17.5"w x 4"d
-
Outlet quantity/type: (12) NEMA 5-15R (2 Front/10 rear)
Input connection type: NEMA 5-15P input plug
Input cord length: 15ft./4.6m -
Power Cord Length: 15ftSurge Protection Rating: 3840JoulesSurge Suppression: YesVoltage Provided: 120VVoltage Provided: AC 120V
-
Voltage compatibility: 120VAC
Frequency compatibility: 50/60Hz
OUTPUT
Output capacity: 15A
Output capacity: 1800W
INPUT
Recommended electrical service: 120V, 15A -
This product is subject to our return policy. Please see our complete return policy for details.
-
6 lbs
-
Compliant Standards: CUL
-
39121610
-
Limited Lifetime
-
Limited Lifetime
-
$25,000 Ultimate Lifetime Insurance (USA & Canada Only)
