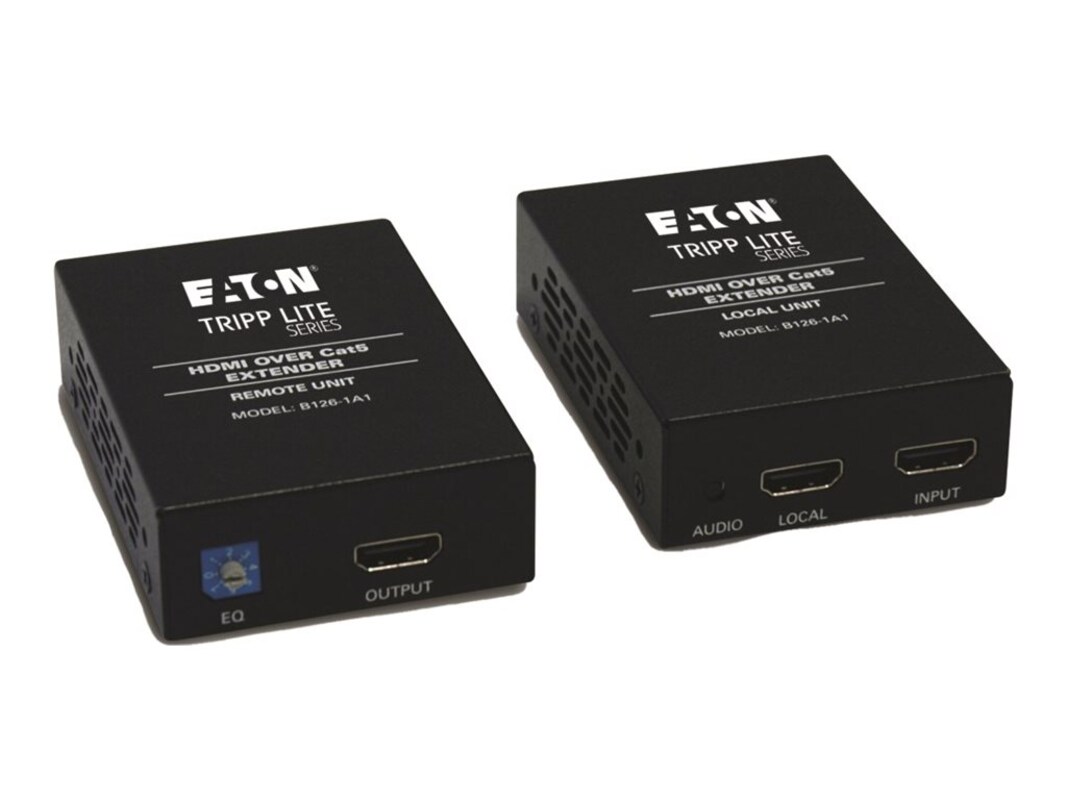

The Tripp Lite B126-1A1 active extender kit is the perfect solution for those who need to extend a HDMI signal over a long distance with a single Cat5e/6 patch cable. In addition to connecting a remote display, the local unit also provides a HDMI output for connecting to a local monitor.
When using 24Awg, Solid Wire Cat5e/6 cable (Tripp Lite N202-Series), the B126-1A1 can extend a 1080i (60Hz) signal up to 200 feet; or, a 1080p (60Hz) signal up to 150 feet. The remote unit comes with a built-in Equalization setting, which allows for adjustment of the video image.
No need to make separate purchases; the B126-1A1 kit comes with both local and remote units. Both stereo audio and 7.1 channel surround sound are supported, as well as HDCP protected content. Mounting hardware is included for both the local and remote units, allowing them to be rackmounted, wallmounted or pole mounted. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
When using 24Awg, Solid Wire Cat5e/6 cable (Tripp Lite N202-Series), the B126-1A1 can extend a 1080i (60Hz) signal up to 200 feet; or, a 1080p (60Hz) signal up to 150 feet. The remote unit comes with a built-in Equalization setting, which allows for adjustment of the video image.
No need to make separate purchases; the B126-1A1 kit comes with both local and remote units. Both stereo audio and 7.1 channel surround sound are supported, as well as HDCP protected content. Mounting hardware is included for both the local and remote units, allowing them to be rackmounted, wallmounted or pole mounted. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
-
Two piece kit includes both local transmitter and remote receiver units.
Supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p (60Hz).
24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, is required to achieve maximum distance and resolution.
Use Tripp Lite P568-Series HDMI cables to connect to HDMI source and monitor.
HDCP and 3D compatible.
Compatible with both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).
Supports 24-bit True Color (8-bits per channel).
Transmitter unit features an HDMI port for the connection of a local monitor.
Can further expand the range and number of monitors by adding B126-110 repeaters.
Connect up to three repeaters, with a receiver unit located at the end of the installation, for a total of 4 displays.
A 1080p (60Hz) signal can be extended up to 125 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080p (60Hz) signal can be extended up to 500 ft.
A 1080i (60Hz) signal can be extended up to 175 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080i (60Hz) signal can be extended up to 700 ft.
A 3D signal can be extended up to 100 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 3D signal can be extended up to 400 ft.
Features a built-in Equalization control for adjustment of the video image.
Mounting hardware is included that allows the B126-110 to be rackmounted, wallmounted or pole mounted.
Compatible with all operating systems.
Plug and play; No drivers required.
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. -
Connectivity Technology: Wired
-
Local Unit, Remote Unit, Screwdriver, (2) Mounting Hardware, (2) Power Supply Units, Documentation
-
Color: BlackForm Factor: ExternalProduct Type: AV ExtenderWarranty Period: 1-year warranty
-
Networking Type: Video/audio extender
-
(3) HDMI (F)
(2) RJ-45 (F) -
This product is subject to our return policy. Please see our complete return policy for details.
-
1.74 lbs
-
Compliant Standards: RoHSCompliant Standards: TAA
-
43222619
-
1 Year
-
1 Year
