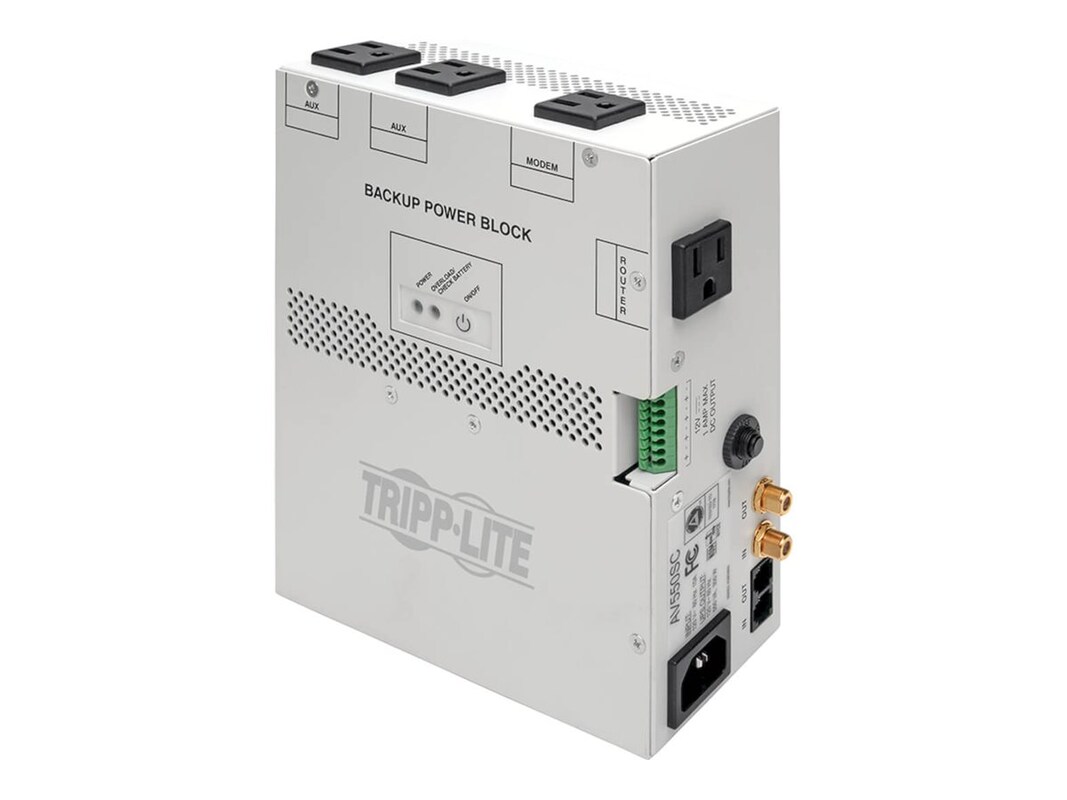

Tripp Lite Audio Video Backup Power Block 550VA UPS Protection for Structured Wiring Enclosure (AV550SC)

7.80 lbs

Features

(3) widely-spaced AC outlets (2 Auxiliary, 1 Modem) power, reset or start up connected equipment during a blackout or system freeze-up (provide battery backup, surge protection and EMI/RFI filtering) - 4 outlets total
Convenient installation designed to fit in the bottom left corner of structured wiring enclosures without the need for mounting screws or brackets
60-second delay-on AC outlet (router) powers and resets the router during a blackout or system freeze-up and delays router start-up for proper system rebooting (provides battery backup, surge protection and EMI/RFI filtering)
12VDC (1-Amp) output connector provides an additional output power source for 12VDC devices as well as battery backup protection for 4 devices
Recycle/reset button resets connected equipment during system freeze-ups with sequential outlet startup
HD-compatible 2.2GHz coax jacks protect connected coax lines against surge damage and filter disruptive EMI/RFI line noise.
Tel/modem/DSL jacks protect connected telephone, modem or DSL lines against surge damage and filter disruptive EMI/RFI line noise
IEC power input connector accepts included 6-inch power cord
Diagnostic/Overload LEDs: Alert users to potential power problems before they affect connected equipment.
Resettable circuit breaker prevents dangerous system overloads
Auto-restart capability eliminates the need to perform an on-site restart
550VA/300 watts standby UPS system
Mounting screw holes are included on the back of the unit for convenient board, wall or ceiling mounting (for projectors)
Customizable labels for easier cord/cable identification and maintenance

UPS, power cord 6", documentation

8.4"h x 6.8"w x 3"d

Output Receptacles: (4) 5-15R
Output Receptacle Details: One receptacle has a 60 second power-up delay
UPS Input Connection Type: 5-15P; C14 inlet
UPS Input Connection Description: 5-15P input cable is detachable via C14 inlet on UPS

OUTPUT

Output Capacity: 550VA
Output Capacity: 300W
Nominal Output Voltages Supported: 110V, 115V, 120V
Nominal Voltage Details: 115v nominal output in battery mode
Frequency Compatibility: 60Hz
Output Voltage Regulation (Battery Mode): +/- 5%
Output AC Waveform (AC Mode): Sine wave
Output AC Waveform (Battery Mode): PWM sine wave

INPUT

Rated input current (Maximum Load): 10A
Nominal Input Voltage Supported: 120VAC
Input Circuit Breakers: 10A
Recommended Electrical Service: 15A, 120V
Input Cord Length: 0.5ft
Input Phase: Single-Phase

BATTERY

Full Load Runtime: 3 min. (300w)
Half Load Runtime: 10 min. (150w)
System Voltage: 12VDC
Battery Recharge Rate (Included Batteries): Less than 9 hours from 10% to 90%
Expandable Runtime: No

SURGE / NOISE SUPPRESSION

UPS Dataline Suppression: 1 line TEL/DSL (1 in / 1 out); Coax jacks (1 set)
UPS Dataline Suppression: Details HD-compatible 2.2GHz coaxial protection
EMI / RFI AC Noise Suppression: Yes
AC Suppression Rating: 1038 Joules
