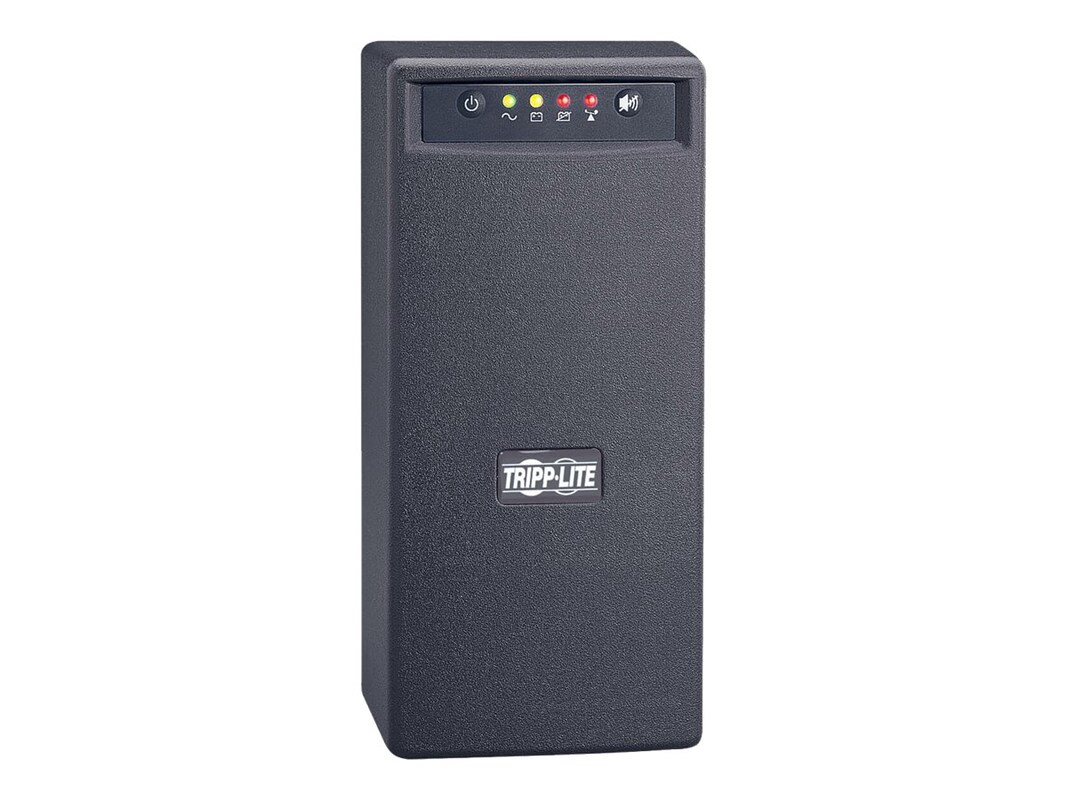

Tripp Lite's OMNIVSINT800 line interactive UPS system offers voltage regulation, surge suppression and long lasting battery support for personal computers, internetworking equipment and other sensitive electronics. Internal UPS circuits support entry level PC systems for up to 40 minutes during power failures so that connected equipment can be shut down without data loss. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 159V back to usable levels without using battery power.
The OMNIVSINT800 also features a built-in single line RJ phone suppression jack to protect your modem, fax machine, cordless phone or other peripheral with a standard dialup/DSL phone connection. The built-in audible alarm and 4 front panel LEDs indicate line power status, battery power status, battery low/replace status and UPS overload. Its 800VA power handling ability supports entry-level PCs, network workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems.
The OMNIVSINT800 also features a built-in single line RJ phone suppression jack to protect your modem, fax machine, cordless phone or other peripheral with a standard dialup/DSL phone connection. The built-in audible alarm and 4 front panel LEDs indicate line power status, battery power status, battery low/replace status and UPS overload. Its 800VA power handling ability supports entry-level PCs, network workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems.
-
21.20 lbs
-
Certifications:
UL1778
cUL
CE 62040
GOST
SASO
IRAM -
# Ports: 4Communication Interface: USBConnector: Power IEC 320 EN 60320 C13Connector: Power IEC 60320 C14
-
UPS, (2) C13 to C14 interconnection cables, USB cable, phone line cable, documentation
-
Color: Attractive blackColor: BlackEnclosure Type: InternalForm Factor: ExternalForm Factor: TowerWarranty Period: 2 yearsWeight Taxonomy: 21.16lbs
-
10.75"h x 5.25"w x 7.25"d
-
(4) Power IEC-320-C13 outlets
(1) Power IEC-320-C14 inlet
(1) RJ-11 connector
(1) USB port -
Battery Run Time (max): 6minPower Capacity (VA): 800VAPower Provided: 475Power Provided: 475WSurge Suppression: StandardSurge Suppression: YesVoltage Provided: 12VVoltage Provided: 230V
-
Voltage compatibility: 220-240V
Frequency compatibility: 50/60Hz auto-sensing
Output volt amp capacity: 800VA
Output watt capacity: 475W
Output nominal voltage: 230V
Output voltage regulation:
BATTERY MODE: PWM sine wave 230V +/-5%
Output frequency regulation:
LINE MODE: Passes line frequency of 50/60Hz +/-10%
BATTERY MODE: Inverter output regulated to 50/60Hz +/-0.5Hz
Maximum input amps: 2.4
Full load runtime: 6 minutes (800VA)
Half load runtime: 19 minutes (400VA)
DC system voltage: 12V DC
Typical battery lifespan: 3-6 years, depending on usage
Battery recharge rate: 2-4 hours to 90%
AC surge suppression: 340 joules
AC suppression response time: Instantaneous
Dataline suppression: Single line TEL/DSL surge suppression with RJ-style phone connectors (center 2 wires protected, 260V clamping)
EMI / RFI AC noise suppression
-
