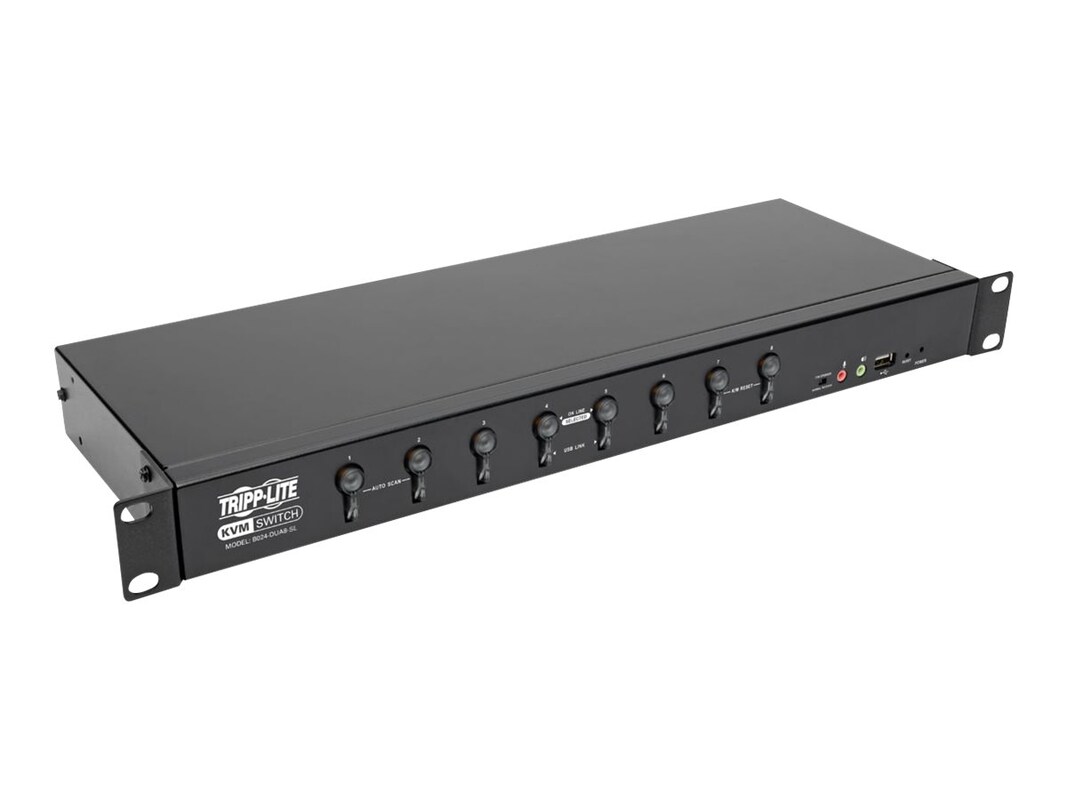

The DVI/USB KVM Switch allows you to control eight computers with audio using a single DVI monitor, USB keyboard and USB mouse. Plus, by cascading up to three levels of KVM switches, you can control up to 512 computers at the same time.
Recommended for IT managers needing centralized access to a variety of digital and analog servers, this DVI/USB KVM switch also supports a VGA display when connected to a DVI to VGA adapter (such as Tripp Lite’s P556-Series).
The DVI-I single-link connector supports digital video resolutions up to 1920 x 1200, including 1080p, and analog video resolutions up to 2048 x 1536. The multi-view installation feature lets you stack up to four KVM switches for connecting computers with up to four DVI outputs and displaying video on up to four console monitors, giving you flexibility in video output. A 3.5 mm microphone jack provides audio input to connected computers. A 3.5 mm audio jack provides 2.1-channel sound to connected speakers.
The OSD presents a text-based interface in eight different languages and allows backup of KVM configuration and user profile information. Dual-tier password protection enhances security for an administrator and up to four users. A DB9 cable is included for firmware upgrades that keep the KVM switch up to date with the latest technology. Easy front-panel access to USB 2.0 hub ports allows quick connection of two USB devices, such as flash drives and printers.
Recommended for IT managers needing centralized access to a variety of digital and analog servers, this DVI/USB KVM switch also supports a VGA display when connected to a DVI to VGA adapter (such as Tripp Lite’s P556-Series).
The DVI-I single-link connector supports digital video resolutions up to 1920 x 1200, including 1080p, and analog video resolutions up to 2048 x 1536. The multi-view installation feature lets you stack up to four KVM switches for connecting computers with up to four DVI outputs and displaying video on up to four console monitors, giving you flexibility in video output. A 3.5 mm microphone jack provides audio input to connected computers. A 3.5 mm audio jack provides 2.1-channel sound to connected speakers.
The OSD presents a text-based interface in eight different languages and allows backup of KVM configuration and user profile information. Dual-tier password protection enhances security for an administrator and up to four users. A DB9 cable is included for firmware upgrades that keep the KVM switch up to date with the latest technology. Easy front-panel access to USB 2.0 hub ports allows quick connection of two USB devices, such as flash drives and printers.
-
Control 8 Computers + Audio from a Single DVI Monitor, Keyboard and Mouse:
8-port KVM switch recommended for IT managers needing centralized access to a variety of digital and analog servers
Switch between connected computers via front-panel buttons, keyboard hotkeys or OSD
Supports digital video resolutions up to 1920 x 1200 (1080p) and analog video resolutions up to 2048 x 1536
Supports 2.1-channel surround sound with full bass response
Also supports VGA display when connected to a DVI to VGA adapter
Connect Up to 512 Computers to One Original Console:
Expand the number of controlled computers by cascading up 3 levels of KVM switches
Multi-View Installation:
Allows stacking of up to 4 KVMs for connecting computers with up to 4 DVI outputs and displaying video on up to 4 console monitors
Independent USB 2.0 Peripheral Sharing:
2-port front-panel USB 2.0 hub allows sharing of devices (printers, hard drives, scanners, webcams) between connected computers
Multilingual On-Screen Display:
OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian and French
Text-based interface offers direct access to every connected computer
Backs up and restores KVM configuration and user profile info
Dual-Tier Password Protection:
Enhances security for administrator and up to 4 users
Hot-Plugging and Auto Scan:
Computers and devices can be disconnected and reconnected without KVM switch shutdown
Automatically switches between ports every 5 seconds for convenient monitoring
Flexible Keyboard/Mouse Applications:
Console mouse port emulation/bypass supports most mouse drivers and multifunction mice
Complete keyboard emulation for error-free booting
Easy Setup and Use:
Plug-and-play operation with no software or drivers to install
Durable metal housing mounts in 1U of space in EIA-standard 19 in. rack
Upgradable firmware to ensure up-to-date operation
Compatible with Windows, Mac, Sun and Linux -
# Ports: 8Connector: 3.5mm audio (F)Connector: DVIConnector: DVI-IConnector: USBConnector: USB Type A (F)Connector: USB Type B (F)
-
KVM switch, (2) DVI/USB LKVM cable kits (6ft), external power supply w/ NEMA 1-15P plug and 5ft cord, RJ11 to DB9 firmware upgrade cable (6ft), grounding wire, rackmounting hardware, rubber feet, documentation
-
Color: BlackForm Factor: Rack-mountableWarranty Period: 3 yearsWeight Taxonomy: 6.19lbs
-
Networking Type: KVM / audio / USB switch
-
Users: 1
Max CPU: 512
LED Indicators: (x8) Connection (Dim Orange), KVM and Audio Focus (Bright Orange), Reset, Auto Scan or Firmware Upgrade Mode (Flash); (x8) USB Hub Focus (Green); (x1) Power (Green)
Port Control: Push Buttons, Hotkeys, OSD
IP Remote Access: No
Ports: 8
PC/Server Connections: DVI; USB
Side A - Connector 1: (4) 3.5MM (FEMALE); DVI-I (FEMALE); HD15 (FEMALE); (2) USB A (FEMALE)
Side B - Connector 1: (16) 3.5MM (FEMALE); (8) DVI-I (FEMALE); (8) USB B (FEMALE)
Computer Keyboard and Mouse Interface: USB
Computer Monitor Interface : DVI-I Single-Link
Console Keyboard and Mouse Interface: USB
Console Monitor Interface: DVI-I Single-Link; VGA
Connector Plating: Nickel
Max Distance (Between any 2 Units): 15-FT
Cat5 KVM Switch: No
On-Screen Display (OSD): Yes
Max Supported Video Resolution: Digital - 1920 x 1200; Analog - 2048 x 1536
USB Hub Ports: Yes
Number of USB Hub Ports: 2
USB Specification: USB 2.0 (up to 480 Mbps)
Audio Specification: 2.1 channel surround sound
Driver Required: No
Virtual Media Speed: N/A
Material of Construction: Metal
Color: Black
Rackmountable: Yes -
Voltage Compatibility (VAC): 100-250
Input Frequency: 50/60 Hz
Input Current: 0.5A
External Power Supply Input Specs (V / Hz / A): 100-240V / 50/60Hz / 0.5A
External Power Supply Output Specs (V / A): 5.3V / 2.4A
External Power Supply Cord Length (ft.): 5
External Power Supply Cord Length (m.): 1.5
External Power Supply Plug(s): NEMA 1-15P North America
External Power Supply Certifications: FCC; UL; cUL; PSE; BSMI; RoHS
Bus Powered: No
Power Consumption (Watts): 5.3V, 6.36W
Operating Temperature Range: 32 to 122 F (0 to 50 C)
Storage Temperature Range: -4 to 140 F (-20 to 60 C)
Relative Humidity: 0 to 80% RH, Non-Condensing -
Networking Protocol: Administrator's passwordNetworking Protocol: Auto Scan ModeNetworking Protocol: Firmware upgradableNetworking Protocol: On-Screen DisplayNetworking Protocol: Pushbutton/Hotkey switching
-
This product is subject to our return policy. Please see our complete return policy for details.
-
8 lbs
-
Compliant Standards: FCCCompliant Standards: RoHSCompliant Standards: TAACompliant Standards: Yes
-
Computer with DVI or VGA (optional) port, USB port and microphone/speaker 3.5 mm jacks (optional)
Any major operating system
Console with DVI or VGA (optional) monitor, USB keyboard and mouse, and microphone and speaker with 3.5 mm connectors (optional) -
43211601
