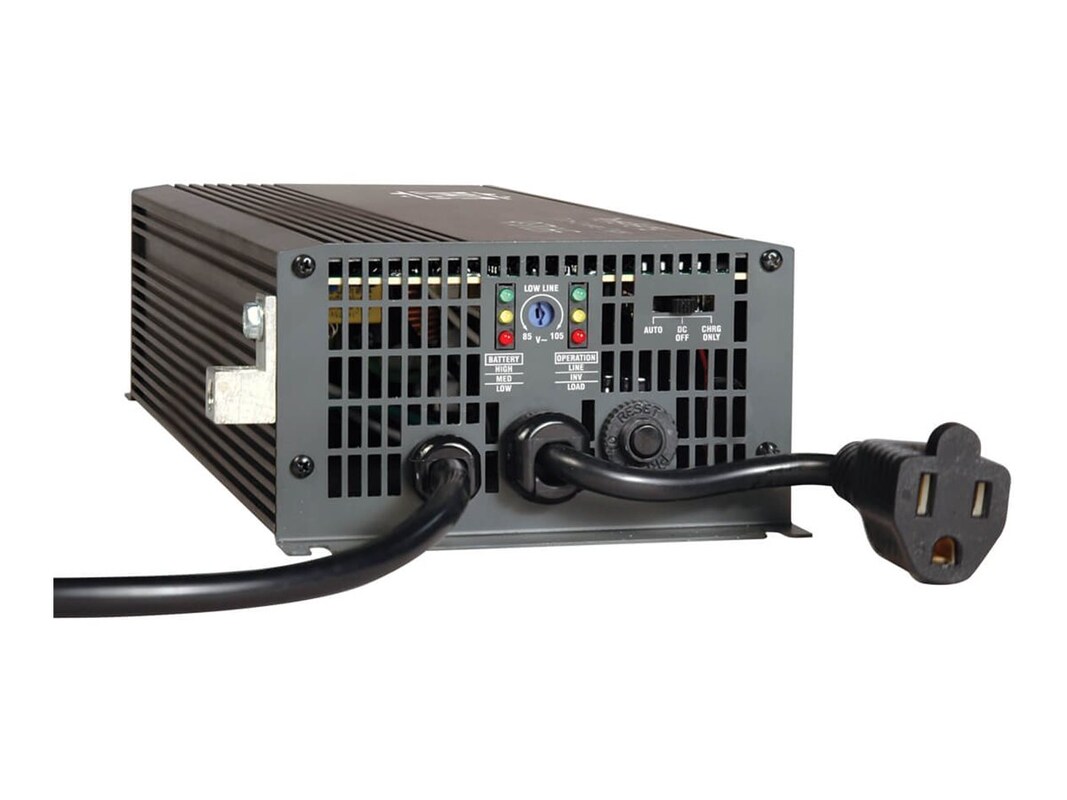

Tripp Lite’s APS700HF Ultra-Compact DC-to-AC inverter with automatic line-to-battery transfer and integrated charging system serves as an extended run UPS, a standalone power source or an automotive inverter. Supplies up to 700 watts of continuous 120V AC power to (1) AC outlet from any 12V battery or automotive DC source. The OverPower inverter output feature provides up to 120% of the continuous output for up to 5 seconds, and the DoubleBoost inverter output feature delivers up to 200% of the continuous output for up to 2 seconds, providing the extra power needed to cold start heavy-duty tools and motorized equipment.
When an AC cable is connected to a live wall socket, commercial power passes through to connected equipment and the battery set is recharged via 3-stage, 6-amp charging system. In UPS mode, the APS system responds to blackouts and voltage fluctuations with a near instantaneous automatic transfer to battery-derived AC output. Included is a set of high current DC input terminals for simple installation (user supplies batteries and cabling - see owner's manual for recommendations). The unit passes sine wave utility or generator power during battery charging and UPS line power mode, plus efficient PWM sine wave AC output in inverter and UPS backup modes. It can support an unlimited amount of runtime with any number of user-supplied batteries connected (available separately).
When an AC cable is connected to a live wall socket, commercial power passes through to connected equipment and the battery set is recharged via 3-stage, 6-amp charging system. In UPS mode, the APS system responds to blackouts and voltage fluctuations with a near instantaneous automatic transfer to battery-derived AC output. Included is a set of high current DC input terminals for simple installation (user supplies batteries and cabling - see owner's manual for recommendations). The unit passes sine wave utility or generator power during battery charging and UPS line power mode, plus efficient PWM sine wave AC output in inverter and UPS backup modes. It can support an unlimited amount of runtime with any number of user-supplied batteries connected (available separately).
-
4.00 lbs
-
Connector: Hardwire 2-wireConnector: Power NEMA 5-15
-
Unit, documentation
-
Form Factor: ExternalWarranty Period: 1-year warrantyWeight Taxonomy: 3.97lbs
-
2.5"h x 5"w x 11.7"d
-
(1) AC outlet (NEMA 5-15R) on 6-inch dongle
Input connection type: DC INPUT: Set of 2 DC bolt-down terminals. AC INPUT: NEMA 5-15P input plug
Input cord length: DC INPUT: User supplies cabling. 6 gauge or larger (see manual). AC INPUT: attached 6 ft. AC line cord with plug
Recommended electrical service: DC INPUT: Requires 12V DC input source capable of delivering 72A for the required duration (when used at full continuous capacity - DC requirements increase during OverPower and DoubleBoost operation). AC INPUT: 15A 120V AC recommended
-
Power Provided: 700Power Provided: 700WSurge Suppression: YesVoltage Provided: AC 120V
-
Output
Output capacity: INVERTER MODE - 700 watts continuous, Double Boost rated to 1400 watts peak (up to 10 seconds). Overpower rating supports longer term overloads to 1050 watts for up to 15 seconds prior to inverter shutoff
Output nominal voltage: AC output 120V AC nominal, DC charger output (DC): 12V DC nominal
Output voltage regulation: Line power (AC) maintains 120V nominal sine wave output from line power source. Inverter power (AC): Maintains PWM sine wave output voltage of 120VAC (+/-5%)
Output frequency regulation: 60Hz (+/- 0.3Hz)
Overload protection: Includes 7A output breaker for AC output loads
Input
Maximum input amps / watts: DC input, full continuous load - 72A at 12VDC. AC input 8.4 amps at 120VAC with full inverter and charger load (1.4A max charger-only)
Recommended electrical service: DC input: requires 12V DC input source capable of delivering 72A for the required duration (when used at full continuous capacity - DC requirements increase during OverPower and DoubleBoost operation).
AC input: 15A 120V AC recommended
BATTERY
DC system voltage: DC input operating range 10-15V DC.
Battery recharge rate: 3-stage, 6-amp battery charger with adjustable settings for wet/gel battery types
Expandable battery runtime: Runtime is expandable with any number of user supplied wet or gel type batteries -
