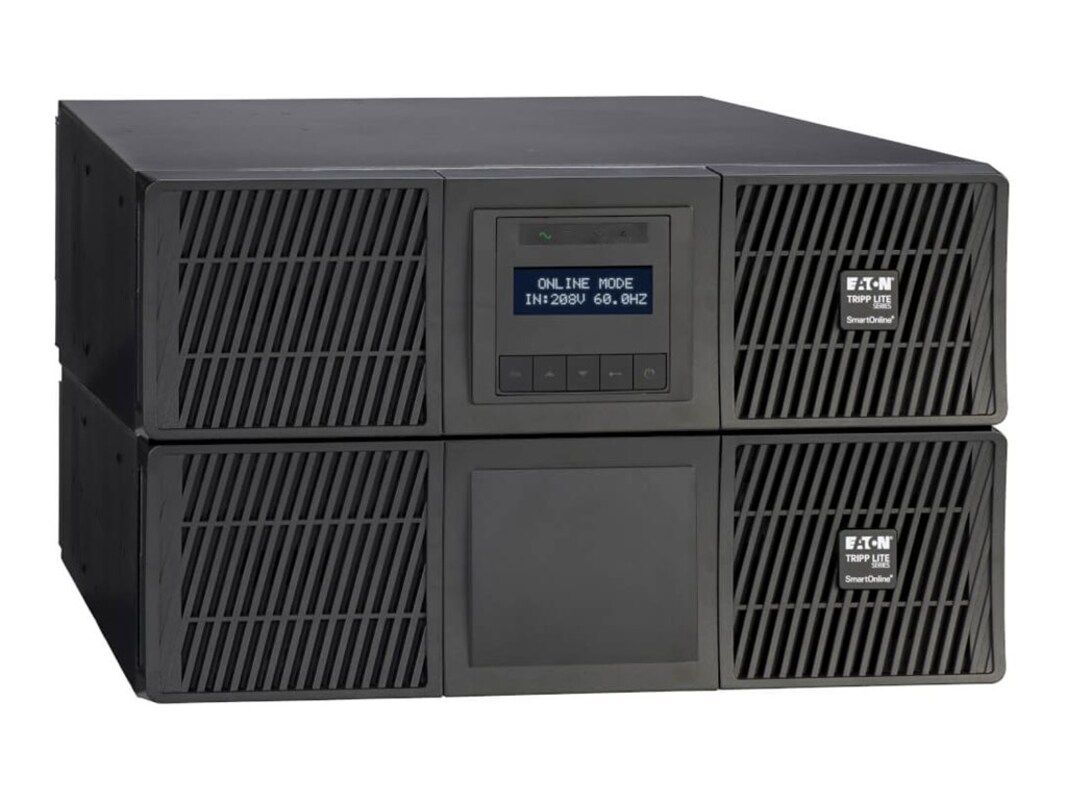

Tripp Lite 6U Extended Run SmartOnline 6000VA 5400W 120 208V Online Double-Conversion UPS

Keeps equipment running during outages to allow time for file saves and safe shutdown

Pre-installed WEBCARDLXE network card enables full remote access and control

Stepdown transformer converts 208V input into 120V output for low-voltage equipment

Included bypass switch allows uninterrupted operation during UPS maintenance

Optional extended battery modules allow extended runtime to keep equipment powered

(18) 5-20R; Hardwire

(2) L6-20R

(1) L6-30R

INPUT:

Input Phase: Single-Phase

Rated input current (Maximum Load): 24.8A

Nominal Input Voltage(s) Supported: 200V AC; 208V AC; 220V AC; 230V AC; 240V AC

Nominal Input Voltage Description: Factory configured to 208V

UPS Input Connection Type: Hardwire; L6-30P

Input Circuit Breakers: 20A

UPS Input Cord Length (ft.): 10

Recommended Electrical Service: 30A

Plug Type: L6-30P 10ft.

Total Harmonic Distortion: < 2% THDV on linear load; < 5% THDV on non-linear load

Input Cord Length (ft.): 10

OUTPUT:

Output Capacity (VA): 6000

Output Capacity (kVA): 6

Output Capacity (Watts): 5400

Output Capacity (kW): 5.4

Output Capacity Details: 230/240V: 5400 watts; 220V: 5100 watts; 208V: 4800 watts; 200V: 4600 watts

Power Factor: 0.9

Crest Factor: 3:1

Nominal Voltage Details: 100V, 110V, 120V, 200V, 208V, 220V, 230V, 240V

Frequency Compatibility: 50/60Hz

Frequency Compatibility Details: 50 or 60Hz, autosensing or configurable as a frequency converter

Output Voltage Regulation (Line Mode): +/- 1%

Output Voltage Regulation (Battery Mode): +/- 1%

Output Receptacle Details: Hardwire output: 200-240V

Output Circuit Breakers: 20A breaker protects L6-20R and 5-20R outlets

Output AC Waveform (AC Mode): Pure Sine wave

Output AC Waveform (Battery Mode): Pure Sine wave

Nominal Output Voltage(s) Supported: 120V; 200V; 208V; 220V; 230V; 240V
