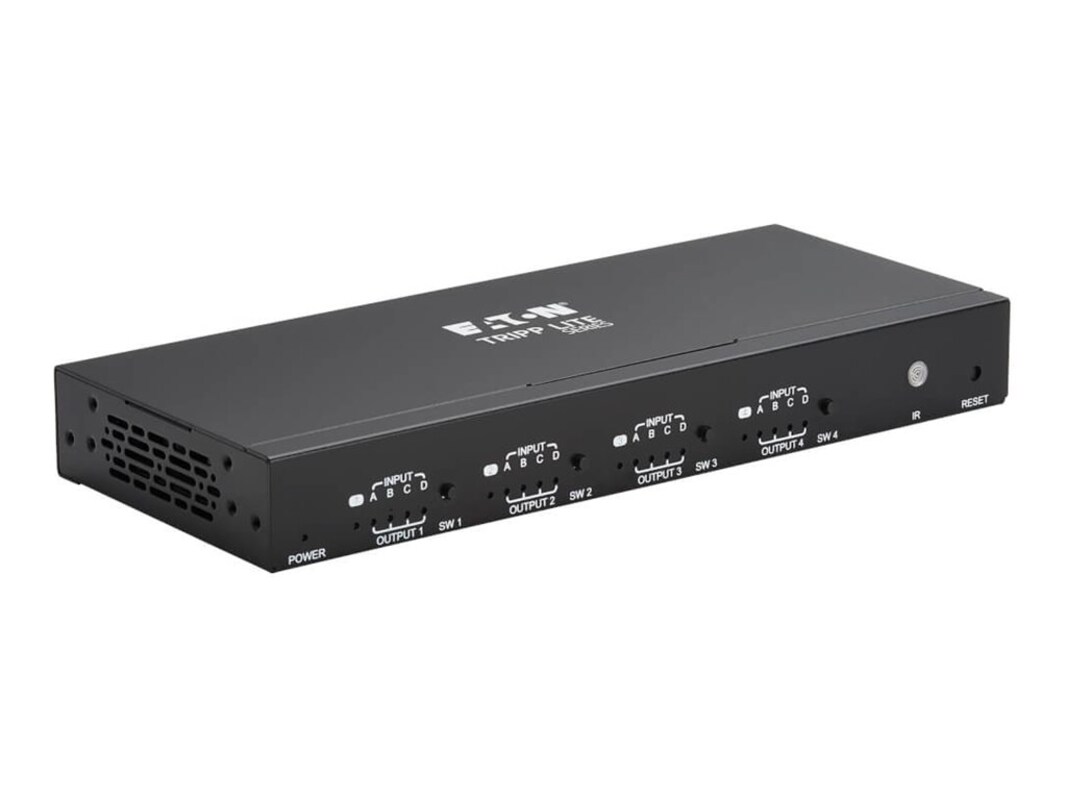

The Tripp Lite B119-4X4 is a 4x4 HDMI Matrix Switch that routes high definition video from any four HDMI sources to any four HDMI displays. It supports video resolutions up to 1920 x 1080 (1080p) @ 60Hz. The 4x4 Matrix eliminates the need to disconnect and reconnect HDMI sources. It works with any HDMI source that connects to an HDMI display, and each source is accessible at all times by any display by selecting it with an IR remote, or using the RS-232 port to switch the unit.
-
1.45 lbs
-
Key Features
Share multiple HDMI sources between multiple monitors
Allows any input to be routed to any output; or the same input to be routed to multiple outputs
Switch between inputs via pushbuttons, remote control or RS-232 serial
Monitors can be located up to 25ft from the switch
Supports video resolutions up to 1920 x 1080 (1080p) @ 60Hz
HDCP and EDID compatible
Mounting hardware included
Plug-and-play; No software or drivers required
Compatible with all operating systems
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases -
# Ports: 4
-
Transmitter unit, external power supply, 3.5mm to DB-9 adapter cable, mounting hardware, remote control, documentation
-
Color: BlackForm Factor: DesktopWarranty Period: 3 yearsWeight Taxonomy: 23.28oz
-
Networking Type: Video switch
-
1.2"h x 9.2"w x 3.9"d
-
Connector A: (4) HDMI (FEMALE)
Connector B: (4) HDMI (FEMALE)
Number of Connectors: (8) -
External Power Supply
Input: 100-240V, 50/60Hz, 0.5A
Output: 5V, 3A -
Networking Protocol: HDCP compliantNetworking Protocol: Input selection buttons
-
This product is subject to our return policy. Please see our complete return policy for details.
-
2.1 lbs
-
Compliant Standards: RoHSCompliant Standards: TAACompliant Standards: Yes
-
