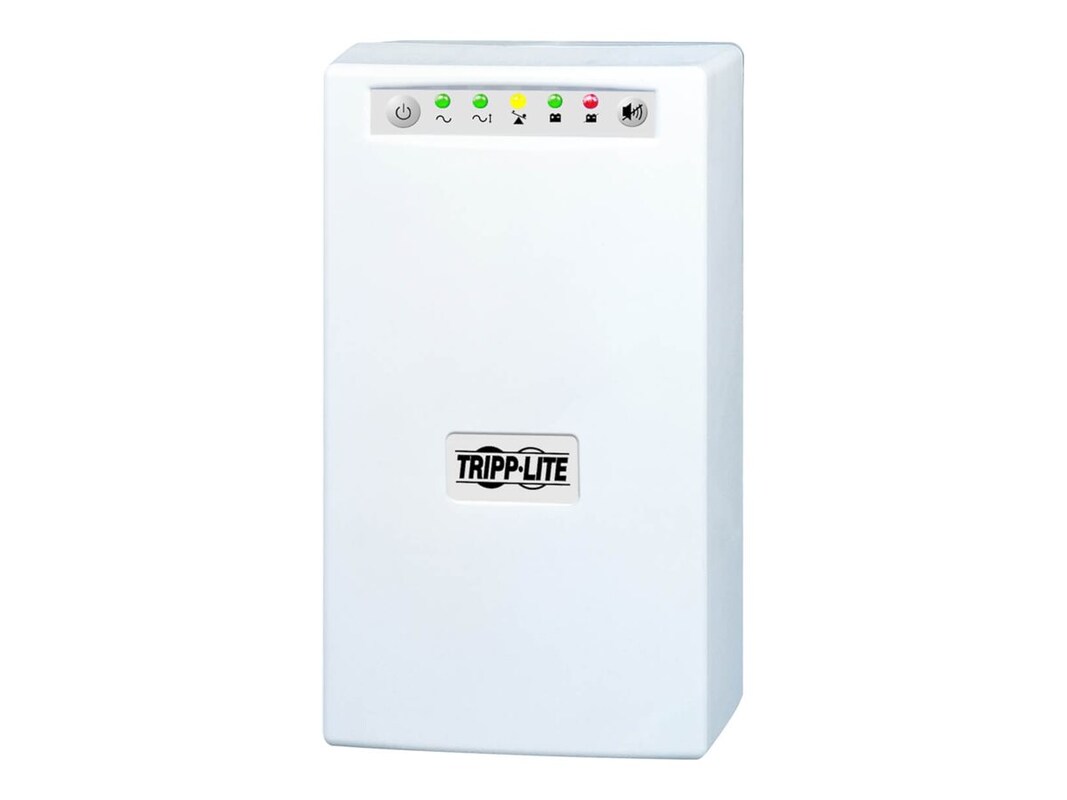

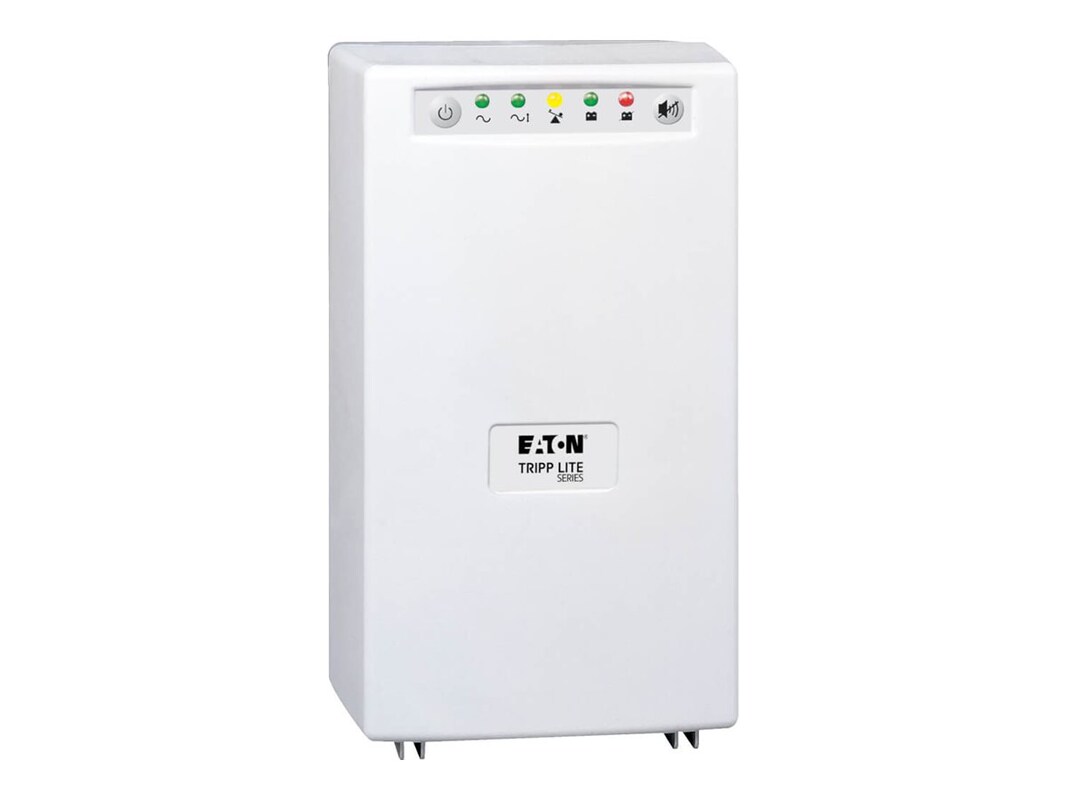

Tripp Lite's SMART700XLHGL medical-grade UPS system provides dependable lithium iron phosphate (LiFePhos) battery backup, so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout. It is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient-care vicinities. The 700VA/450W capacity provides up to 42 minutes of runtime for a half load and 18 minutes for a full load.
Built-in line-interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as 143V to normal 120V nominal output, without drawing battery power. The SMART700XLHGL's built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes.
This UPS system features four NEMA 5-15R-HG hospital-grade outlets and has a hospital-grade NEMA 5-15P-HG plug with a 6-foot cord for flexibility in placement. All four outlets provide both backup protection and 480 joules of surge protection.
The SMART700XLHGL also features diagnostic LEDs, as well as a USB port and a DB-9 serial port that work with Tripp Lite's free downloadable PowerAlert software for safe, unattended system shutdown and file saves in the event of a prolonged power failure.
Built-in line-interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as 143V to normal 120V nominal output, without drawing battery power. The SMART700XLHGL's built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes.
This UPS system features four NEMA 5-15R-HG hospital-grade outlets and has a hospital-grade NEMA 5-15P-HG plug with a 6-foot cord for flexibility in placement. All four outlets provide both backup protection and 480 joules of surge protection.
The SMART700XLHGL also features diagnostic LEDs, as well as a USB port and a DB-9 serial port that work with Tripp Lite's free downloadable PowerAlert software for safe, unattended system shutdown and file saves in the event of a prolonged power failure.
-
33.73 lbs
-
Features
Provides Ideal UPS Backup in Healthcare Facilities
Compliant with UL 60601-1 standards for use in patient-care vicinities, when plugged into a hospital-grade outlet
Built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise
Hospital-grade NEMA 5-15P-HG plug with 6ft cord provides flexibility in placement
Battery Backup and Full Surge Protection
Supports half load for 42 min. and full load for 18 min. with standard LiFePhos internal battery
Hospital-grade NEMA 5-15R-HG outlets provide 480 joules of surge protection
EMI/RFI noise filtering ensures equipment runs smoothly without line noise interference
Resistant to electrostatic discharge
10,000-cycle LiFePhos battery
LEDs and Audible Alarms Keep You Aware of Power Status
Indicator lights monitor when the UPS is on and supplying utility power, when operating in voltage correction mode or in battery mode, relative load level and low-battery warning
Audible alarms alert you to power failure, overload and low battery conditions
Mute/quiet mode ensures "alarm fatigue" compliance
Saves Your Files, Even When You are Away
Works with Tripp Lite PowerAlert software (available as a free download) to enable safe, unattended system shutdown and files saves during prolonged power failures
Connects to your computer via DB-9 or USB port
UPS Certifications: Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); Tested to CSA (Canada); Tested to UL1778 (USA); Tested to UL60601-1 (medical grade) -
# Ports: 4Communication Interface: Serial (RS-232)Communication Interface: USBConnector: Power NEMA 5-15 (F)Connector: Power NEMA 5-15 (M)Connector: Power NEMA 5-15P (hospital grade)
-
UPS, USB cable, serial cable, documentation
-
Attributes: Line interactiveColor: WhiteForm Factor: ExternalForm Factor: TowerWarranty Period: 5 yearsWeight Taxonomy: 33.73lbs
-
12.8"h x 7.5"w x 9"d
-
Output Receptacles: (4) 5-15R
Output Receptacle Details: Hospital grade output receptacles
UPS Input Connection Type: 5-15P-HG
Input Cord Length: 6ft
-
Battery Run Time (max): 18minPower Capacity (VA): 700VAPower Provided: 450Power Provided: 450WSurge Suppression: StandardSurge Suppression: YesVoltage Provided: 36V
-
OUTPUT
Output Capacity: 700VA/450W
Power Factor: 0.6
Nominal Output Voltages Supported: 115V, 120V
Frequency Compatibility: 60Hz
Output Voltage Regulation (Line Mode): -18%, +8%
Output Voltage Regulation (Battery Mode): 115V (+/- 5%)
Output AC Waveform (AC Mode): Sine wave
Output AC Waveform (Battery Mode): PWM sine wave
INPUT
Rated input current (Maximum Load): 5.5A
Nominal Input Voltage Supported: 120VAC
Input Circuit Breakers: 15A
Recommended Electrical Service 15A 120V
Input Phase Single-Phase
BATTERY
Chemistry: Lithium-iron-phosphate
Full Load Runtime: 18 min. (750w)
Half Load Runtime: 42 min. (375w)
DC System Voltage: 36VDC
Battery Recharge Rate (Included Batteries): Less than 4 hours from 10% to 90%
Battery Access: Battery access door
Expandable Runtime: No
VOLTAGE REGULATION
Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 81 to 143V
Overvoltage Correction: Input voltages between 126 and 143V are reduced by 9%
Undervoltage Correction: Input voltages between 96 and 106V are boosted by 10%
Severe Undervoltage Correction: Input voltages between 81 and 95V are boosted by 21%
SURGE / NOISE SUPPRESSION
UPS AC Suppression Rating: 480 Joules
UPS AC Suppression Response Time: Instantaneous
EMI / RFI AC Noise Suppression: Yes
ISOLATION
Output Isolation Transformer: Hospital grade load isolation transformer
Leakage Current: 100 microamps -
This product is subject to our return policy. Please see our complete return policy for details.
-
35.43 lbs
-
Compliant Standards: CSACompliant Standards: EMICompliant Standards: FCC Part 15 ACompliant Standards: RoHSCompliant Standards: UL 1778Compliant Standards: UL 60601-1
-
39121011
-
5 Years
-
5 Years
