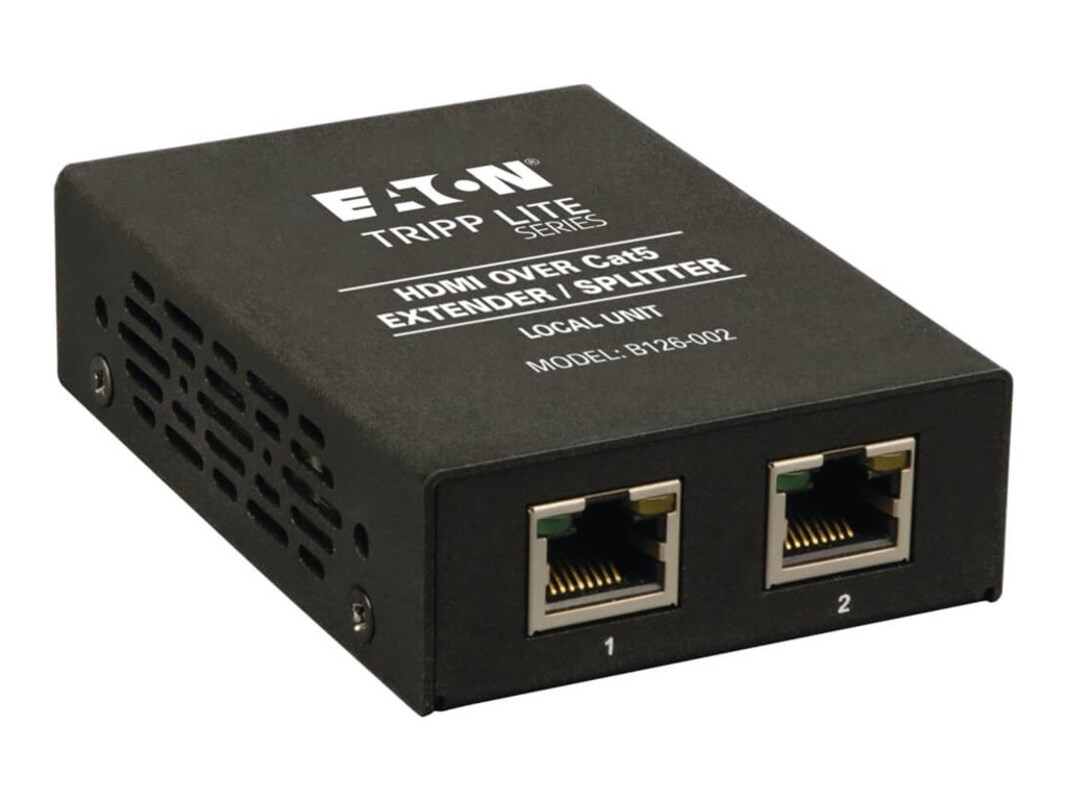

Tripp Lite's B126-002 splits an HDMI signal into 2 and allows you to locate monitors over long distances using a single Cat5e/6 cable.
When used with an active remote unit, a 1080i (60Hz)signal can be extended up to 200 feet, or a 1080p (60Hz) signal up to 150 feet. When used with a passive remote unit, a 1080i (60Hz)signal can be extended up to 100 feet, or a 1080p (60Hz) signal up to 50 feet.
24Awg, solid Cat5e/6 cable is required to reach max distance and resolution. Supports both stereo audio and 7.1 channel surround sound audio, as well as HDCP protected content. Mounting hardware is included that allows the B126-002 to be rackmounted, wallmounted or pole mounted. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
When used with an active remote unit, a 1080i (60Hz)signal can be extended up to 200 feet, or a 1080p (60Hz) signal up to 150 feet. When used with a passive remote unit, a 1080i (60Hz)signal can be extended up to 100 feet, or a 1080p (60Hz) signal up to 50 feet.
24Awg, solid Cat5e/6 cable is required to reach max distance and resolution. Supports both stereo audio and 7.1 channel surround sound audio, as well as HDCP protected content. Mounting hardware is included that allows the B126-002 to be rackmounted, wallmounted or pole mounted. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
-
Features
Splits a single HDMI signal into 2
When used with an active remote unit (B126-1A0 or B126-1A0-WP, available separately), a 1080i (60Hz) signal can be extended up to 200 ft.; or a 1080p (60Hz) signal can be extended up to 150 ft.
When used with a passive remote unit (B126-1P0 or B126-1P0-WP, available separately), a 1080i (60Hz) signal can be extended up to 100 ft.; or a 1080p (60Hz) signal can be extended up to 50 ft.
24Awg, Solid wire Cat5e/6 cable (Tripp Lite N202-Series) is required to reach max distance and resolution
HDCP compatible
Compatible with both stereo audio and 7.1 channel surround sound audio
Mounting hardware is included that allows the B126-002 to be rackmounted, wallmounted or pole mounted
Compatible with all operating systems
Plug and play; No drivers required
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases -
Connectivity Technology: Wired
-
Splitter/extender, mounting hardware, external power supply, documentation
-
Color: BlackForm Factor: ExternalProduct Type: ExtenderProduct Type: Video splitterWarranty Period: 1-year warranty
-
Networking Type: Video/audio extender
-
1."h x 2.5"w x 3.6"d
-
(2) RJ-45 (F)
(1) HDMI (F) -
External power supply
Input: 100-240VAC, 50-60Hz, 0.5A
Output: 5V, 2A -
Networking Protocol: HDCP compliantNetworking Protocol: Wall mountable
-
This product is subject to our return policy. Please see our complete return policy for details.
-
1.1 lbs
-
Compliant Standards: Plug and PlayCompliant Standards: RoHS
-
43222619
-
1 Year
-
1 Year
