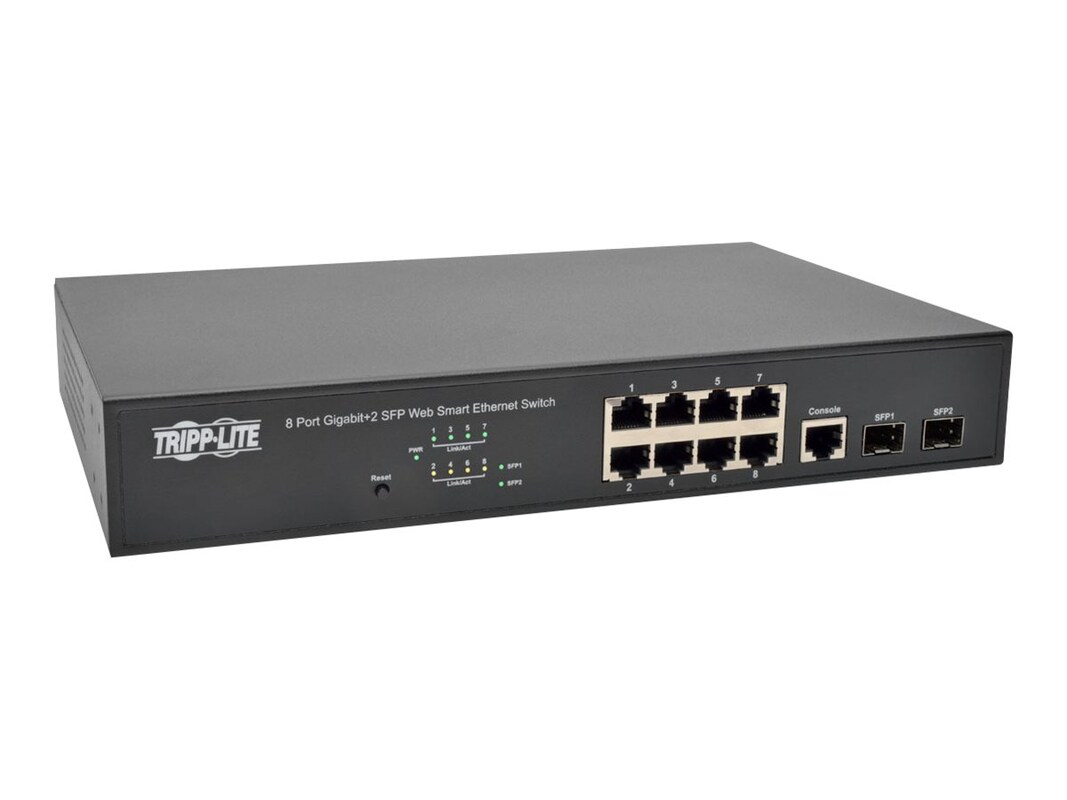

The energy-efficient NGS8C2 8-Port Gigabit L2 Web-Smart Managed Network Switch features eight twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection functions for convenient plug-and-play capability. Two dedicated mini-GBIC SFP ports are also included for uplinking data to other switches via optical fiber or copper.
Easy-to-read LEDs indicate connection and activity status for each port. Built-in web-smart management software lets you monitor and control each connected device via secure web-based interface. Each port supports up to 2 Gbps with full duplex.
The heavy-duty metal housing mounts into 1U of an EIA-standard 19-inch rack using the included brackets and user-supplied hardware. Or attach the included rubber feet to the bottom of the unit for installation on a flat desktop surface. The five-foot input cord with NEMA 5-15P plug connects to a protected UPS, generator or mains input AC source.
Easy-to-read LEDs indicate connection and activity status for each port. Built-in web-smart management software lets you monitor and control each connected device via secure web-based interface. Each port supports up to 2 Gbps with full duplex.
The heavy-duty metal housing mounts into 1U of an EIA-standard 19-inch rack using the included brackets and user-supplied hardware. Or attach the included rubber feet to the bottom of the unit for installation on a flat desktop surface. The five-foot input cord with NEMA 5-15P plug connects to a protected UPS, generator or mains input AC source.
-
5.40 lbs
-
# Ports: 2# Ports: 8
-
Switch, AC power cord (5'), (2) rack-mounting brackets, (8) screws, (4) rubber feet, documentation
-
Chassis Form Factor: 1U RackmountColor: BlackForm Factor: Rack-mountableWarranty Period: 5 yearsWeight Taxonomy: 5.4lbs
-
Switching capacity: 20 Gbps
MAC Address Table Size: 8000 entries
Jumbo Frame Support: 9KB
Features:
8 twisted-pair RJ45 Gigabit Ethernet ports
Auto-negotiable 10/100/1000 Mbps
Automatic MDI/MDIX cross-over detection
20 Gbps switching capacity (2 Gbps per port with full duplex)
Easy-to-read LEDs indicate connection and activity status for each port
Supports 9k jumbo frames
Supports MAC address auto-learning and auto-aging up to 8,000 addresses
Advanced Enterprise-level and L2 management features
Monitors and controls connected equipment via simple Web interface
VLAN, trunking, VPN, port monitoring and other features improve network efficiency and performance
Connect to Mini-GBIC SFP modules for uplinking to other switches via optical fiber or copper
LEDs indicate interface traffic
Automatically shifts unused ports to low power state without interrupting network connection
Meets IEEE 802.3ab, 802.3i, 802.3u, 802.3x, 802.3, 802.1q, 802.1d, 802.1w and 802.3ad standards
Fanless metal housing mounts in 1U of EIA-standard 19 in. racks
Supports desktop installation using included rubber feet on flat surface
5 ft. power cord with NEMA 5-15P plug connects to compatible AC power source -
Networking Type: Switch
-
1.7"h x 17.3"w x 8.1"d
-
I/O:
(8) GbE RJ45
(2) Dedicated SFP -
Input:
Electrical Consumption: 80 watts max.
Input Plug Features: Detachable NEMA 5-15P to C13 input plug can be replaced with a wide variety of 100 to 240V international cordsets that terminate to a C13 connector on the output side
Input Cord Length (ft.): 5
Voltage Compatibility (VAC): 100; 110; 120; 127; 200; 208/240
Input Phase: Single-Phase
Input Plug Type: NEMA 5-15P -
Networking Protocol: Gigabit EthernetNetworking Protocol: IEEE 802.1DNetworking Protocol: IEEE 802.1pNetworking Protocol: IEEE 802.1QNetworking Protocol: IEEE 802.1WNetworking Protocol: IEEE 802.1xNetworking Protocol: IEEE 802.3Networking Protocol: IEEE 802.3abNetworking Protocol: IEEE 802.3iNetworking Protocol: IEEE 802.3uNetworking Protocol: IEEE 802.3xRemote Management Protocol: RMONRemote Management Protocol: SNMP
-
This product is subject to our return policy. Please see our complete return policy for details.
-
4.7 lbs
-
Compliant Standards: CAN/CSA-C22.2 No. 60950-1-07 Second EditionCompliant Standards: Plug and PlayCompliant Standards: RoHSCompliant Standards: UL 60950-1:2007 Second Edition
-
43222612
-
5 Years
-
5 Years
-
Limited Warranty
