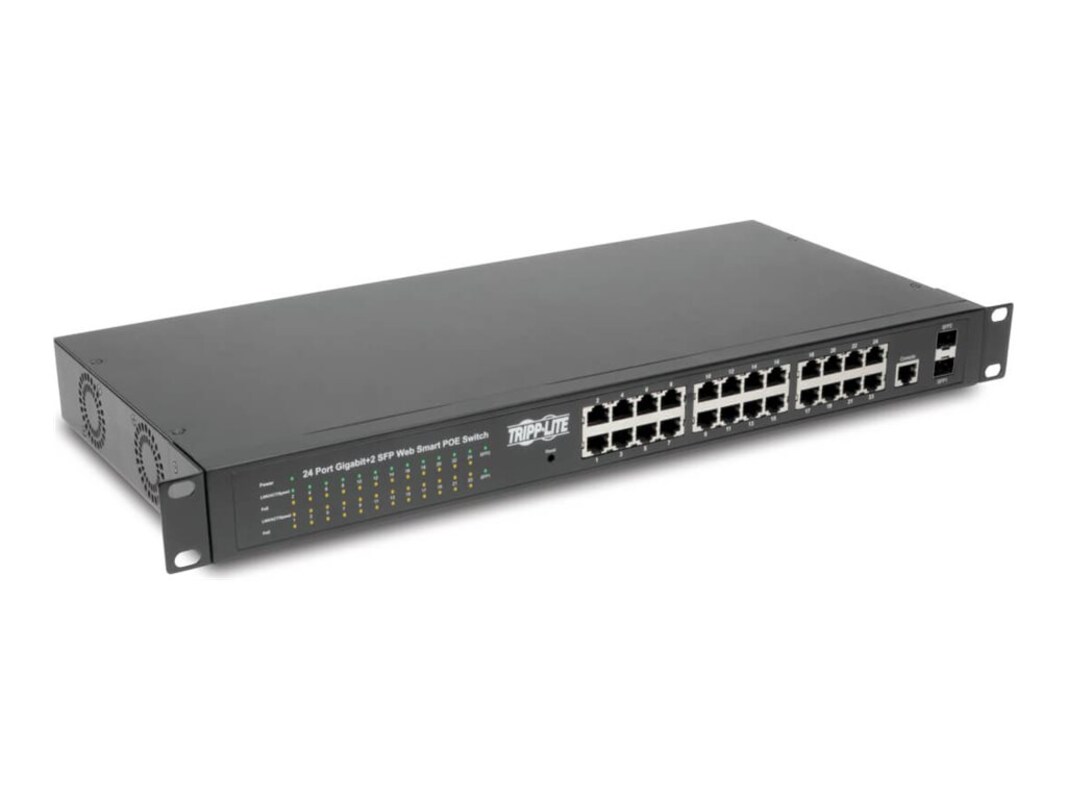

The energy-efficient NGS24C2POE 24-Port Gigabit L2 Web-Smart Managed PoE+ Network Switch features 24 twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection functions for convenient plug-and-play capability. Each port can be configured to supply up to 30W of PoE+ (Power over Ethernet) via network cable to connected high-wattage devices, such as VoIP phones, wireless access points and security cameras. Two dedicated mini-GBIC SFP ports are also included for uplinking data to other switches via optical fiber or copper.
-
6.80 lbs
-
# Ports: 2# Ports: 24
-
Switch, 5' power cord, (2) rack mounting brackets, (8) screws, (4) rubber feet, documentation
-
Chassis Form Factor: 1U RackmountChassis Form Factor: DesktopColor: BlackForm Factor: Rack-mountableWarranty Period: 5 yearsWeight Taxonomy: 6.83lbs
-
Switching capacity: 52 Gbps (2 Gbps per port with full duplex)
Jumbo frames: 9,000
MAC addresses: 8,000 -
Networking Type: Switch
-
1.7"h x 17.3"w x 8.2"d
-
I/O:
(24) GbE RJ-45 PoE+
(2) Dedicated SFP -
PoE Budget: 300W (30W max per port)
Detachable 5' input cord with NEMA 5-15P plug
Consumption: 450W (max)
Voltage Compatibility (VAC): 100; 110; 120; 127; 208/240
Input Phase: Single-Phase -
Networking Protocol: Gigabit EthernetNetworking Protocol: IEEE 802.1pNetworking Protocol: IEEE 802.1QNetworking Protocol: IEEE 802.1xNetworking Protocol: IEEE 802.3Networking Protocol: IEEE 802.3abNetworking Protocol: IEEE 802.3afNetworking Protocol: IEEE 802.3atNetworking Protocol: IEEE 802.3iNetworking Protocol: IEEE 802.3uNetworking Protocol: IEEE 802.3xNetworking Protocol: PoE+Remote Management Protocol: DHCPRemote Management Protocol: RMONRemote Management Protocol: SNMP
-
This product is subject to our return policy. Please see our complete return policy for details.
-
8.71 lbs
-
Compliant Standards: CAN/CSA C22.2 No. 60950-1-07 Second Edition 2014-10Compliant Standards: CAN/CSA-C22.2 No. 60950-1Compliant Standards: FCC Class A certifiedCompliant Standards: FCC Part 15 ACompliant Standards: Plug and PlayCompliant Standards: RoHSCompliant Standards: UL 60950-1Compliant Standards: UL 60950-1:2007 Second Edition
-
