Tripp Lite 10 100 1000 SC Multimode Media Converter, 550M, 850nm

Print page
Item#: 17918555 // MFG Part#: N785-001-SC-MM // By: Tripp Lite

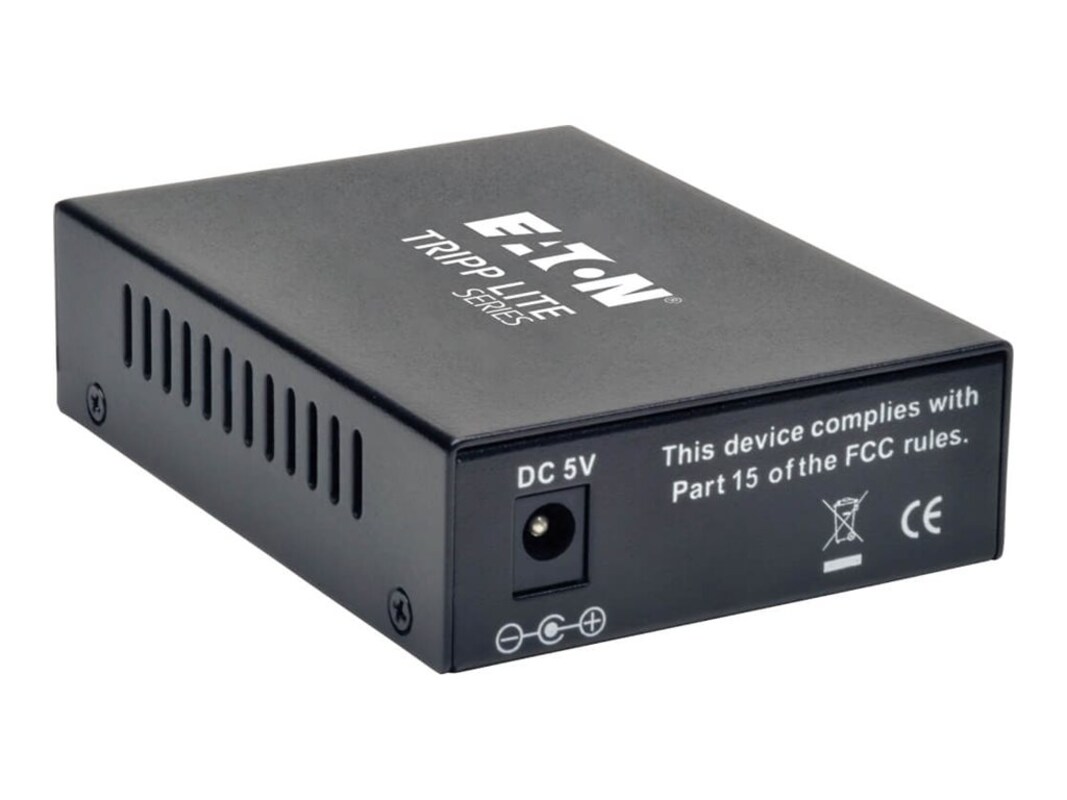

Tripp Lite N785-001-SC-MM Main Image from Right-angle
Rollover to Zoom
NOTE: Images may not be exact; please check specifications.
  • In Stock
  • Ships in 24-48 Hours
Ordering Information
$107.48
Qty:
  • Ethernet 1000Base-SXEthernet 1000Base-TEthernet 100Base-TXEthernet 10Base-T Transceiver
  • 1Gbps Transfer Rate
  • Ethernet, Fast Ethernet, Gigabit Ethernet Protocol(s)
  • RoHS Compliant
Tripp Lite's N785-001-SC-MM 10/100/1000 to Multimode Media Converter (RJ45 to SC) is an economical way to extend the distance of network nodes up to 550 Meters by converting Cat5e UTP cables to Multimode Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically. Auto-detects half or full duplex operation on the fiber port. Power supplied by small form factor AC adapter.

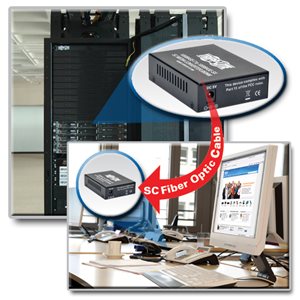

Extend a Gigabit Ethernet Signal up to 1800 ft. (550 m) Using Multimode SC Fiber Optic Cable

Your network no longer has to be limited by UTP cabling or the high price of extending its reach. With Tripp Lite’s N785-001-SC-MM 10/100/1000 Multimode Media Converter, you can extend your gigabit network up to 1800 ft. (550 m) with fast, cost-effective, SC multimode fiber optic cabling. Advanced features like selectable half or full duplex operation, 850nm wavelength and automatic MDI/MDI-X configuration provides superior signal quality and gives you ultimate network control. For peace of mind, the unit is RoHS-compliant and comes with a two-year warranty.
Extend a Gigabit Ethernet Signal up to 1800 ft. (550 m) Using Multimode SC Fiber Optic Cable
Extend a Gigabit Ethernet Signal up to 1800 ft. (550 m) Using Multimode SC Fiber Optic Cable

Advanced Monitoring and Control

Monitoring and controlling your network nodes is easy with advanced features like selectable half or full duplex operation and automatic MDI/MDI-X configuration. Six LEDs indicate operating and alert status of the unit and connected components.
Extend a Gigabit Ethernet Signal up to 1800 ft. (550 m) Using Multimode SC Fiber Optic Cable

Flexible Installation

With the ability to be powered by an AC adapter, the N785-001-SC-MM allows for flexible installation at any point in your network wherever a nearby standard power outlet is available. The unit does not have to remain close to a computer, server or other signal source.



Extend a Gigabit Ethernet Signal up to 1800 ft. (550 m) Using Multimode SC Fiber Optic Cable

Two-Year Warranty and Environmentally Responsible Design

The N785-001-SC-MM comes backed by a two-year warranty and is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
Extend a Gigabit Ethernet Signal up to 1800 ft. (550 m) Using Multimode SC Fiber Optic Cable
Tripp Lite N785-001-SC-MM Product Summary
  • 10/100/1000 UTP to multimode SC fiber converter extends Gigabit Ethernet signals up to 1800 ft. (550 m)
  • Auto-detects full/half duplex transfer mode
  • Supports Multimode 50/125 cable up to 550M or 62.5/125 cable up to 400M
  • Auto Negotiation MDI/MDI-X
  • Six performance monitoring LEDs
  • 850 nm wavelength
  • Small, compact design
  • Two-year warranty
What’s in the Box
  • N785-001-SC-MM SC Multimode Media Converter
  • External Power Supply
  • Owner's Manual
Extend a Gigabit Ethernet Signal up to 1800 ft. (550 m) Using Multimode SC Fiber Optic Cable
Why Choose Tripp Lite?

Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, connect and protect your equipment. With a large selection of connectivity products, Tripp Lite has everything from USB hubs and reversible USB cables to fiber-optic cables and over Cat5e/Cat6 signal extenders. Whether you need to connect high-speed networks to switches, routers and servers in your data center, or send high-resolution video signals to displays and digital signs, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
