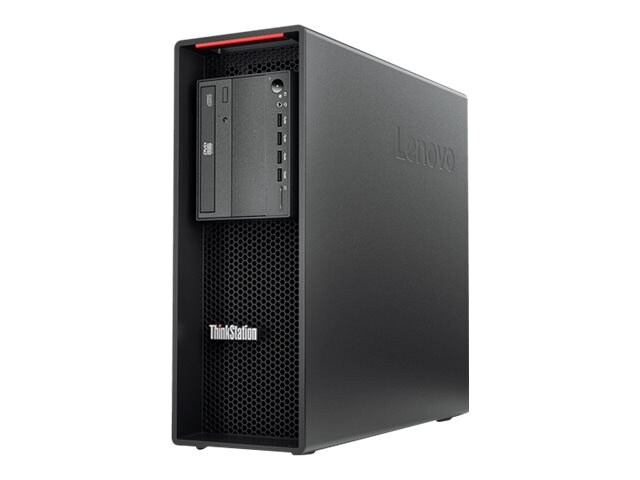

Lenovo ThinkStation P520 Tower vPro Xeon QC W-2225 4.1GHz 32GB 1TB OPAL RTXA5000 GbE 1000W W11P64WS

52.90 lbs

Security features:
Power-on and admin password
Trusted Platform Module, TCG 2.0 compliant, switch to 1.2 via UEFI setting Optional access panel lock, Kensington lock, and pad lock

Systems management:
Intel Active Management Technology 11
Front panel warning LED
ThinkStation Diagnostics for Windows
Photo-audio transfer with Lenovo PC Diagnostics for Android and iOS
Optional front 4-digit diagnostic display on flex module

Workstation, USB keyboard, USB mouse, power supply, documentation

When purchasing additional service plans, the term years must match

32GB (2x16GB) ECC RDIMM DDR4 SDRAM, upgradeable to 256GB.

There are eight DIMM slots with four channels. Two slots are occupied by removable 16GB modules; the other slots are open.

Only RDIMMs are supported.
Memory will truncate down to match processor data bus speed.

Video memory: discrete NVidia RTX A5000 graphics with 24GB dedicated video RAM.

Genuine Windows 11 Pro 64-bit Edition for Workstations is pre-installed.

17.3"h x 6.5"w x 18.1"d

Expansion slots:
Slot 1 (CPU): PCIe 3.0 x8; FH/FL, 25W, open ended
Slot 2 (CPU): PCIe 3.0 x16; FH/FL, 75W, double-width
Slot 3 (PCH): PCIe 3.0 x4; FH/HL, 25W, open ended
Slot 4 (CPU): PCIe 3.0 x16; FH/FL, 75W, double-width
Slot 5: PCI; FH/FL, 25W
Slot 6 (PCH): PCIe 3.0 x4; FH/HL, 25W, open ended
(2) Onboard M.2 slots
M.2 slot support:
Up to one full height, full length PCIe 3.0 x16 adapter, supports four M.2 slots.
Up to three PCIe 3.0 x4 adapters, each adapter supports one M.2 slot. Supports RAID 0/1 on onboard M.2 disks and RAID 0/1/10/5 on quad M.2 PCIe x16
adapter; optional NVMe RAID upgrade is needed

Expansion bays:
(2) 3.5" drive bays (two optional additional 3.5" bays)
(2) 5.25" flex bays
Flex bay support:
Up to two half-height optical drives
Up to two 5.25” slim ODD cages.
Up to two 5.25" slim ODD and HDD cages.
Up to one Front Access Storage Enclosure.
Up to one flex module for one or more of the following options: 9.0mm optical/
15-in-1 USB 3.0 reader/front eSATA/front Thunderbolt/4-digit diagnostic display
NOTE: Only one can be supported from 15-in-1 reader, Thunderbolt, and 4-digit display

Media Reader:
(1) 9-in-1 USB 2.0 card reader

I/O:
Front:
(4) USB 3.0 (includes one 11W charging)
(1) 3.5mm audio (combo/microphone)
Back:
(2) USB 2.0
(4) USB 3.0
(1) RJ-45 LAN
(3) 3.5mm audio (line-in, line-out, mic-in)
(2) PS.2
(1) Power in

Storage controller:
Onboard Intel RSTe SATA controller, supports RAID levels 0/1.

Networking controller:
Intel i219LM, integrated gigabit ethernet, supports Wake-on-LAN.

1000W power supply
